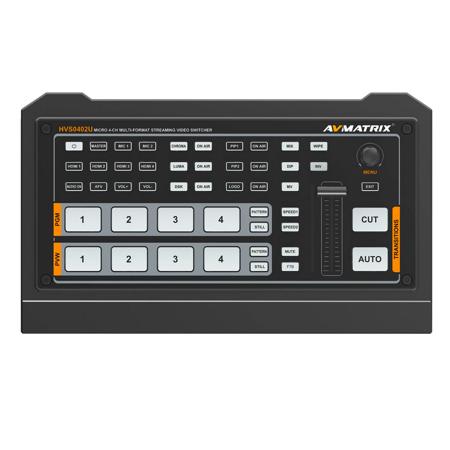

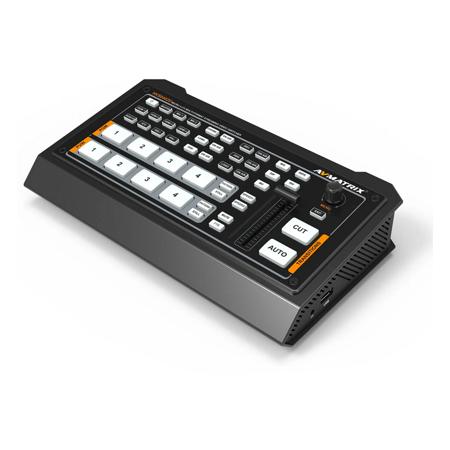

AVMatrix HVS0402U Micro 4-Channel HDMI Live Stream Multi-Format Video Switcher

SKU: LLHVS0402U MFR: HVS0402U
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 4 HDMI inputs with this compact video switcher for dynamic live productions.
  • Achieve professional-grade live streaming with low latency via USB output, perfect for engaging content.
  • Enjoy multi-format support up to 1080p60, ensuring high resolution video quality for diverse applications.
  • Easily control transitions with T-Bar, auto, and cut options, adding polish to your video productions.
  • Enhance your streams with Luma/Chroma Key and PIP/POP effects, creating visually stunning content.
  • Mix audio from HDMI and MIC inputs with adjustable delay, ensuring perfect audio-video synchronization.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MARK S : Adorama had the best price!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix HVS0402U Specifications

Connections

Connections

Jump to...
  • Video In

    HDMI Type-A x4

  • Video Out

    1x HDMI type-A PGM x1
    1x HDMI type-A Multiview
    1x USB 2.0 type-C (Streaming on PC)
    Assignate HDMI 1-4, PGM, Clean PGM, PVW, Color bar, Multiview

  • Audio in

    2x MIC/Line (3.5mm stereo audio)

  • PC Control Port

    1x LAN

  • Media Library

    1x USB Type-A (For image import and firmware upgrade)

  • Tally Port

    1x DB-15

  • Power In

    1x DC 12V

Functions

Jump to...
  • Transitions

    T-Bar/Auto/Cut

  • Effects

    WIPES (9x2 patterns)/ MIX/DIP/ Still (freeze)/ Pattern/ Mute/ FTB

  • Layouts

    2 Styles of multiview layouts (6 windows and status)

  • Keys

    Upstream Key: 1x Luma Key/1x Chroma Key/2x PIP/POP
    Downstream Key: 1x DSK/1x Logo

  • Audio Mixer

    4x HDMI and MIC/ 2x Line
    Audio delay: 0-500ms

  • Media Format

    Default Images: 49 preset patterns
    Local image: Up to 16 imported images
    Capture Image: Up to 16 captured images

  • Generators

    1x Pattern generator
    2x Color generators

Standards

Jump to...
  • HDMI in Format Support

    1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
    1080I 50/ 59.94/ 60
    720p 60/ 59.94/ 50/ 30/ 25/ 24
    576i 50, 576p/ 50, 480p 59.94/ 60, 480I 59.94/ 60

  • HDMI PGM Out

    1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98 1080I 60/ 59.94/ 50

  • HDMI Multiview Out

    1080p 60/ 59.94/ 50/48/47.95/ 30/ 29.97/ 25/ 24/ 23.98/ 1080I 60/ 59.94/ 50

  • HDMI Color Space

    RGB/YUV

  • USB Capture Out

    MJPG, upti 1080p 60

  • Media Format

    USB disk format support: FAT32, EXT3, EXT4, upto 256GB
    Image format support: pnp, Jpg, gif, Jpeg
    LOGO size support: 10 x10 pixel to 600 x 600 pixel

  • Power

    Wide Voltage: 7-24V
    Operating power: 12W (12V 1A)

  • Temperature

    Working: 68 Deg F - 140 Deg F (-20 Deg C - 60 Deg C)

  • Storage

    86 Deg F - 158 Deg F(-30 Deg C - 70 Deg)

  • Dimensions (L x W x D)

    9.6 x 5.6 x 1.75" (244.5 x 143.2 x 44.5mm)

  • Weight

    36.33 oz (1030g)

  • UPC Code

    6971118000906

About AVMatrix HVS0402U

Scaled Output & Multiview
The switcher supports multi-format inputs including 1080p, 1080i, 720p, 576i and 480p HDMI Signals. And 2 HDMI outputs can be used as AUX output that can be used as AUX output can be up/down scaled. Besides, all cameras as well as setting status/menu can be can be monitored multiview output.

USB Capture for Streaming
Connect the switcher to a computer with Windows 7/8/10, Android, Mac OS via USB output, and use softvvarare like OBS, PotPlayer, VMix, etc. to realize live streaming in Youtube, Facebook, Twitter, etc. platforms. The video source of USB out not only can be the PGM output but also can be HDMI , HDMI2, HDMI3, HDMI4, Clean PGM output.

USK & DSK
The switcher supports chroma key and luma key, which is convenient for users to key off blue/green and black background colors for virtual studio or live event applications. Besides, user can gain an exact color level by using the color picking, clip and gain key adjustment.

Transition Effects
There are WIPE(9x 2 patterns), MIX and DIP transition effects available from the switcher. The transition effect works for swtching ua AUTO and T-Bar. User also can have transition without effect by switching via CUT.

2 PIP/ POP
The switcher has 2 PIP function that it can overlay 2 sub-screen into the PGM out, and the size and postion cf sub-screen can be adjusted. Besides, user can use POP to have two same-size screens overlay into PGM out.

LOGO Overlay
User can add a logo from USB flash disk into PGM. The logo's size and position can be adjusted, and the logo image can be PNG, JPG, BMP, etc. format.

Powerful Media Management
The video switcher has a powerful built-in media management fundion 49 preset pattems. User also can import image from USB flash disk, or capture and store the screenshot image of HDMI 1, HDMI 2, HDMI3, HDMI 4, Clean PGM or PGM.

Audio MIXING /AFV
The switcher can mix 4 HDMI embedded audio and 2 extemal analog audios (Mic/ Line-level) into the PGM out. User can turn on/off adjust volume or audio delay for each audio independently. In addition, 4 HDMI embedded audios can be set to AFV mode.

PC Control Softaware
A free PC control software can be downloaded from website. User can remotely control all settings of the device through the control software including transition effects, audio configuration, multiview settings and media management, etc.

Abundant Applications
The Micro 4 channd HDMI We streaming video switcher can be widely used in various field events, such as church, game live, live sports, virtual studio, education, internet, concert, and so on.

AVMatrix HVS0402U Features

  • 4 channel auto-detected HDMI inputs
  • 1 xHDMI PGM output,1 xHDMI multiview out, 1 xUSB type-C output
  • AUX output configurable and assignable
  • USB-C for capturing and streaming on PC
  • Clearly visible multiview & status page
  • Upstream key: Luma key, Chroma key, PIP x2/ POP
  • Downstream key and LOGO overlay
  • T-bar/ Auto/ Cut transitions; various effects: WIPE(9 x2 patterns) / MIX/ DIP
  • Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
  • Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • customer configuration import and export
  • FTB/ MUTE/ STILL/ GPIO for tally

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between 4 HDMI inputs with this compact video switcher for dynamic live productions.
  • Achieve professional-grade live streaming with low latency via USB output, perfect for engaging content.
  • Enjoy multi-format support up to 1080p60, ensuring high resolution video quality for diverse applications.
  • Easily control transitions with T-Bar, auto, and cut options, adding polish to your video productions.
  • Enhance your streams with Luma/Chroma Key and PIP/POP effects, creating visually stunning content.
  • Mix audio from HDMI and MIC inputs with adjustable delay, ensuring perfect audio-video synchronization.

What's in the box:

  • AVMatrix HVS0402U Micro 4-Channel HDMI Live Stream Multi-Format Video Switcher
  • Power Supply (12V 2A)
  • USB Cable (Type A-C)
  • Tally Connector (DB-15)
  • AVMatrix 2 Year Limited Warranty
