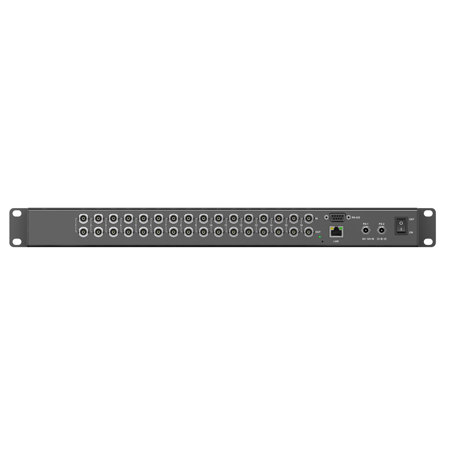

AVMatrix MSS1611-S 1RU Rackmount 16 x16 3G/HD/SD-SDI Seamless Matrix Switcher

Let the MSS1611-S 1RU Rackmount 16 x16 3G/HD/SD-SDI Seamless Matrix Switcher revolutionize your large-scale broadcast projects. This compact, yet powerful SDI routing switcher is expertly designed with 16 inputs and 16 outputs, offering a comprehensive solution for seamless video switching.

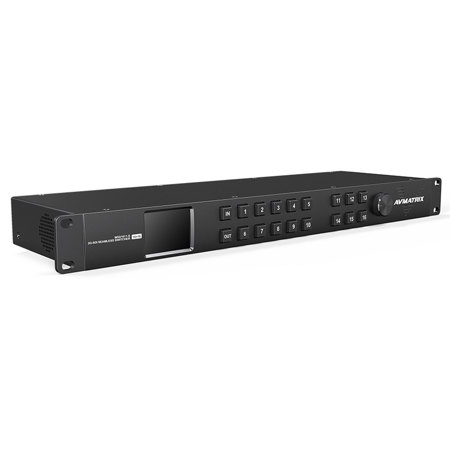

The MSS1611-S is equipped with redundant power connections and an elegantly machined metal front panel, featuring a 2.2-inch LCD for clear and convenient routing label display. Routing operations can be effortlessly performed through direct button selection and the intuitive spin knob controller.

This 3G-SDI seamless matrix switcher supports standard 3G/HD/SD SDI rates, and is capable of automatically bypassing non-standard rates between 270Mbit/s and 3Gbit/s. Its built-in frame synchronizer allows for the simultaneous input of signals of varying resolution frame rates, enabling seamless switching without the interruption of a black screen.

The MSS1611-S stands out with its seamless switching capability. The built-in frame synchronizer supports the simultaneous input of signals of different resolution frame rates, ensuring a smooth transition without the need for external REF synchronization.

Experience the flexibility of up and down scaling with the MSS1611-S. Compatible with multiple format signal inputs in different resolutions and frame rates, it employs auto-detection technology to adapt to your needs. Users can easily set the output format up or down as required.

Control of the MSS1611-S is a breeze with its full control panel. Almost all functions can be set through this panel via the dedicated buttons, menu knob, and 2.2 LCD screen. Additionally, the free PC software via Ethernet allows users to conveniently control it on a Windows PC.

The compact design of the MSS1611-S is complemented by its robust construction. The use of premium components, coupled with dual redundant power supplies, ensures that the device continues to function optimally even when the main power supply encounters issues. With the MSS1611-S 1RU Rackmount 16 x16 3G/HD/SD-SDI Seamless Matrix Switcher, experience seamless, high-quality broadcasting like never before.
