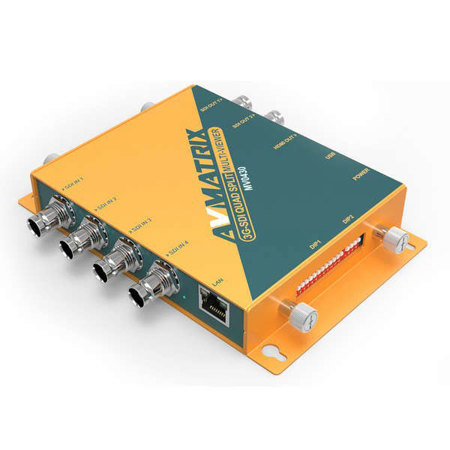

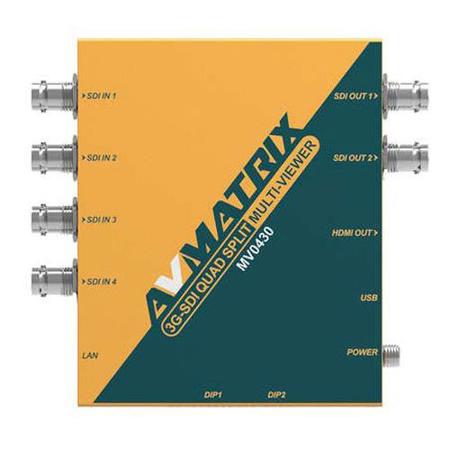

AVMatrix MV0430 3G-SDI Quad Split Multiviewer

Enhance your professional video monitoring capabilities with the advanced MV0430 3G-SDI Quad Split Multiviewer. This high-tech device is equipped with four channels of 3G/HD/SD auto-adaptive inputs, and outputs through two 3G-SDI channels and one HDMI channel. This innovative feature allows for simultaneous display of up to four video inputs on a single screen, catering to a variety of professional video applications.

The MV0430 3G-SDI Quad Split Multiviewer supports 11 selectable signal output formats, ranging from 720p25 to 1080p60, offering flexibility and adaptability to your unique video processing needs. This state-of-the-art multiviewer also provides 16 group preset layouts, including popular modes such as quad split, full screen, triple windows, Picture-in-Picture (PiP), and Picture-outside-Picture (PoP).

Adding to its sophisticated design, the MV0430 features user-defined UMD and audio meter overlay. In each individual window, users can set a 13-character UMD overlay and adjust its size and position freely. Similarly, the size and position of the 2-channel audio metering can also be user-defined, offering a tailored viewing experience.

The MV0430 3G-SDI Quad Split Multiviewer also offers easy control over DIP switches. Users can adjust the DIP switches to set the functions manually, without any tools, making it a smart solution for quick setting changes during outdoor applications. Additionally, this multiviewer can be remotely set using software by connecting it to a PC via LAN. The latest firmware can also be upgraded via the LAN port, ensuring your device stays up-to-date with the latest technology.

Experience the convenience and efficiency of monitoring multiple video sources with the MV0430 3G-SDI Quad Split Multiviewer, a product that embodies the perfect blend of innovation and functionality.
