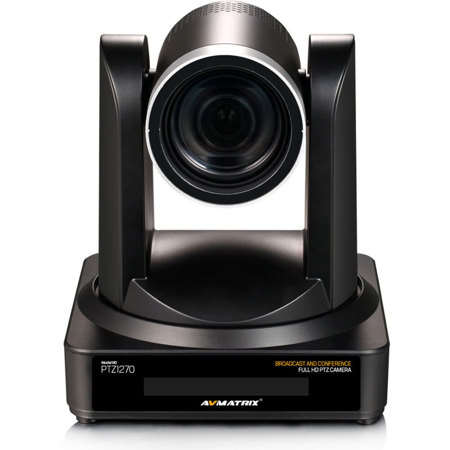

AVMatrix PTZ1270 2.07MP Full HD NDI HDMI 30x PTZ Camera

SKU: LLPTZ130XNDI MFR: PTZ1270-30X-NDI
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the AVMatrix PTZ1270's 2.07MP Full HD resolution.
  • Experience smooth, precise control with pan/tilt speeds up to 180°/sec for seamless tracking.
  • Utilize the impressive 30x optical zoom to get up close, even in large venues or events.
  • Stream directly with NDI, HDMI, and 3G-SDI outputs, offering versatile connectivity options.
  • Enjoy flexible control via RS-232, VISCA, and Pelco protocols for easy integration into systems.
  • Benefit from PoE support, simplifying setup with power and data over a single network cable.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix PTZ1270 NDI Specifications

Image Sensor

Image Sensor

Jump to...
  • Image Sensor

    1-Chip 1/2.8" CMOS Sensor

  • Effective Sensor Resolution

    1920 x 1080 (2.07 MP)

  • Signal-to-Noise Ratio

    55 dB

  • Minimum Illumination

    0.5 Lux

  • White Balance Range

    3000 to 6500K

  • Max Digital Zoom

    10x

  • Optical Zoom Ratio

    30x

  • Focal Length

    4.3 to 129mm

  • Field of View

    2.34 to 65.1 Degree

  • Maximum Aperture

    f/1.6 to 4.7

  • Focus Control

    Autofocus

Video Output

Jump to...
  • Output Formats

    NDI, SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps

  • IP Streaming

    ONVIF, RTMP, RTSP: 1080p

Control

Jump to...
  • Presets

    255 via RS-232, VISCA
    10 via IR

  • Move Speed

    Pan: 0.1 to 180 Degree /sec
    Tilt: 0.1 to 80 Degree /sec

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Supported Control Protocols

    Pelco-D
    Pelco-P
    VISCA

Interfaces

Jump to...
  • Video Output Connectors

    1x HDMI Type A (HDBaseT)
    1x BNC (3G-SDI)

  • Audio I/O

    1x 1/8" (3.5mm) Stereo Line Level Input

  • Control Interface

    1x RJ45 (Pelco-D, Pelco-P, VISCA)
    1x 8-Pin Mini-DIN (RS-232) Input
    1x 8-Pin Mini-DIN (RS-232) Output
    1x 2-Wire (RS-485)

  • PoE Support

    Yes

  • Power Connectors

    1x Barrel / Coaxial (12 VDC at 1 A)

Environmental

Jump to...
  • Operating Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Storage Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    20 to 95%

Physical

Jump to...
  • Tripod Mounting Thread

    1x 1/4"-20 Female

  • Dimensions

    6.6 x 5.9 x 5.9" (167.5 x 150 x 150mm)

  • Weight

    3.08 lbs (1.4kg)

About AVMatrix PTZ1270 NDI

Are you in search of a high-tech solution for your broadcasting, security, or teleconferencing needs The PTZ1270 2.07MP Full HD NDI HDMI 30x PTZ Camera, with its integrated f/1.6-4.7 lens, is a sophisticated and state-of-the-art equipment designed to meet these requirements. This advanced camera offers precision control and multiple output ports, delivering up to 1080p60 video for crystal clear, high-definition imaging.

The PTZ1270 camera is not just a camera; it's an innovative tool that supports VISCA, PELCO-D, and PELCO-P control protocols, ensuring compatibility with a wide range of systems. The integrated f/1.6-4.7 lens provides a powerful 20x optical and 10x digital zoom functions, allowing you to capture detailed images from a distance, perfect for surveillance or wildlife photography.

With its live streaming capability, this camera enables real-time video transmission over the internet, making it an ideal choice for remote monitoring or broadcasting purposes. Its NDI technology and POE technology further enhance its versatility, making it suitable for a variety of applications, from security to live events.

The PTZ1270 camera's sleek black color and rounded design make it a discreet yet stylish addition to any setting. Its BNC, HDBASET, and HDMI video interfaces allow for easy integration into existing systems, ensuring a seamless setup process. Experience the difference with the PTZ1270 2.07MP Full HD NDI HDMI 30x PTZ Camera, a perfect blend of technology and functionality.

AVMatrix PTZ1270 NDI Features

  • Various optical zoom lens: 30x optical zoom lens for option
  • Rich interface outputs: Support HDMI, 3G-SDI, USB3 0, USB2 0 & LAN
  • Multiple control protocol: Support VISCA, PELCO-D, PELCO-P protocols
  • LAN port for video stream: Support RTMP, RTSP & Onvif
  • USB port for capture video, complying with UVC for live streaming
  • 3.5mm stereo audio(line-level) in
  • PoE (Power Over Ethernet) & NDI | HX

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear video with the AVMatrix PTZ1270's 2.07MP Full HD resolution.
  • Experience smooth, precise control with pan/tilt speeds up to 180°/sec for seamless tracking.
  • Utilize the impressive 30x optical zoom to get up close, even in large venues or events.
  • Stream directly with NDI, HDMI, and 3G-SDI outputs, offering versatile connectivity options.
  • Enjoy flexible control via RS-232, VISCA, and Pelco protocols for easy integration into systems.
  • Benefit from PoE support, simplifying setup with power and data over a single network cable.

What's in the box:

  • PTZ1270 2.07MP Full HD NDI HDMI PTZ Camera with PoE
  • 12V Power Supply
  • RS232 Control Cable
  • Remote Control
  • AVMatrix 1 Year Limited Warranty
