AVMatrix PVS0613 6-Channel SDI/HDMI Multi-Format Video Switcher with 13.3" Full-HD LCD Display

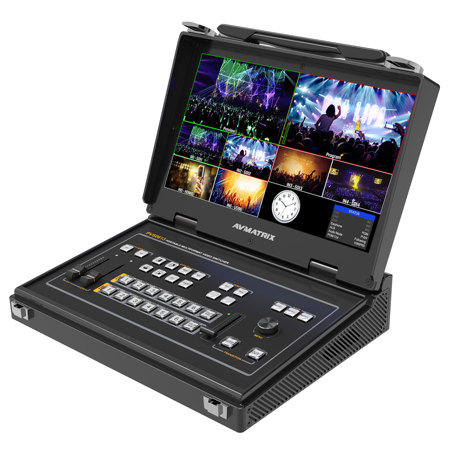

PVS0613 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. The unit integrated a 13.3-inch Full HD LCD display to monitor the 6 cameras at sametime.

Features

13.3 inch FHD LCD Display
The all-in-one video switcher with an integrated 13.3 inch FHD screen and solid metal case. You can clearly view PVW, PGM with audio bar, Multiview, clock, and menu setting on the screen.

Multi-format & Scaler
Flexible to accept 6 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p.

Multiview Monitoring
Multiview output make it easy to monitor 6 cameras as well as PVW and PGM on one display at same time. Besides, a clock and menu list are located in the lower right corner of the Multiview.

PIP
To insert a second picture into/outside the main picture. Simply adjust the size and position of windows and then overlay on the program.

Transition Effects
Transition between PVW and PGM with Wipe/ Mix/ Fade effect through T-bar & Auto.

Audio Mixer
A built-in audio mixer can mix 2 external stereo 3.5mm &RCA audio and 6ch embedded audios.

Portable Handbag
The switcher comes with a handbag, total around 1.7kg, very portable for taking to anywhere.

Rich Interface
1x SDI and 2x HDMI inputs, 2x SDI & 1xHDMI PGM outputs, 1X SDI AUX output for PVW & PGM, 1x SDI & 1x HDMI Multiview output. And the interface is hidden in the case, which can protect the interface from being damaged.

Widespread Application
The all-in-one 6 cameras production video mixer can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on
