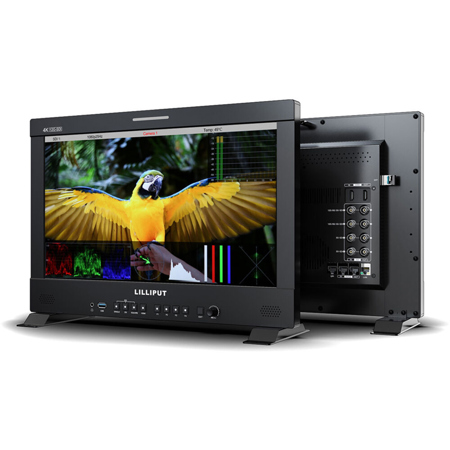

Lilliput Q18 17.3" 16:9 4K UHD HDR Broadcast Studio Monitor with Carrying Case, Supports 12G-SDI/HDMI, Gold Mount

Lilliput Q18 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs - and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection (for broadcast quality monitoring) - it also features Audio Vectoring using a Lissajous graph shape, allowing you to visualize the depth and balance of a stereo recording. Further - it has a software capability that will allow you to control the device remotely via RS422, GPI, or LAN ports.

12G SDI Studio / Broadcast Monitor
Studio/Broadcast Monitor for professional camcorder & camera Application for video production & making movies.

Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColorSpace CMS by Light Illusion.

Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K/5500K/6500K/7500K/9300K five color temperature conditions, can also be customized according to user needs.

Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.

Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors

LAN / RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.

Brightness, contrast, saturation, tint, sharpness, backlight and color temperature can be controlled in this pattern.

Marker
Skip the complex menu options and select necessary marker directly.

Function
Includes waveform, histogram, and other features in this pattern.

Source
Switch between four different SDI signals and single HDMI signal

Audio
Any audio channel can be matched and control level meter and audio vector.

Tally/UMD
Control the color of Tally, as well as the text format of the UMD.

12G-SDI/4K HDMI Signal
12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals.

Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096 x2160 (60p, 50p, 30p. 25p,24p) & 3840 x2160 (60p, 50p, 30p, 25p, 24p) signal.

12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Waveform
Quickly and easily check under or over exposure as well as color and white balance issues on pictures.

Histogram
A display that indicates how many of the pixels in a photo are at that given level of brightness.

False Color
An image that depicts an object in colors that differ from those a photograph (a true-color image) would show. Supports ARRI, RED False color.

User Markers
Adjusting the lines of four directions to shape any type of safety marker can also weaken the sense of existence of the image outside the marker.

Peaking Focus
It highlights the areas that are in focus so you are able to quickly focus the camera and not miss crucial shots.

Exposure
Areas of the image over a certain threshold are filed with a striped pattem to dramaticalty highlight areas where too much light is falling on the image sensor.

Check Field
When enabled, hue and saturation can be adjusted quickly and accurately especially in broadcast area display.

Aspect Ratio
Provides a wide variety of aspect ratio to match different camera anamorphic lenses.

Zoom
Zoom in and out by adjusting the horizontal and vertical axis of the screen position.

Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships dependson its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

Camera Auxiliary Functions
Povides plenty of auxiliary functions for taking photos and making movies. such as peaking, false color and audio level meter.

• Color Temp
• Color Gamut
• 3D-LUT
• HDR
• Gamma
• UMD
• Time Code
• Remote
• Vector Scope
• Waveform
• Audio Vector
• Level Meter
• Histogram
• Exposure
• Peaking
• False Color
• Check Field
• Color Bar
• Pixel Zoom
• Pix to Pix
• Marker
• Freeze
• H/V Delay

Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, 3G-SDI, HDMI2.0 and 12G-SFP+ Moreover,images can be differentiated with colorful borders to enhance the senses of monitoring.

The four images are allowed to select the input signal source separately, INGLE Zid BELUIM and cinematographers can also quickly switch between each input signal via physical butions.

Inthe mode of quad split multiview, user can select any one input signal for audiofsound output, for example, SDI, HDMI or SFP+.

HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

3D LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

Easy-to-use
F1-F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.
