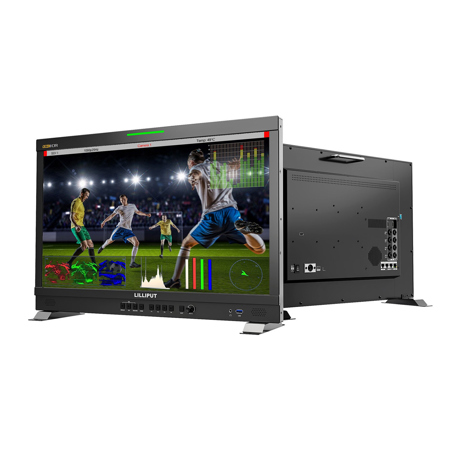

Lilliput Q23-8K 23.8" 16:9 4K UHD Professional Production Studio Monitor, Supports 12G-SDI/HDMI, Gold Mount, Black

Production / Broadcast monitor for professional camcorder & video camera Application for video post production & making movies.

8K 12G-SDI Signal
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.

Support Up to 8K 60Hz Video
In addition to the different 4K 60Hz video signals provided by four single-link 12G-SDI, the monitor with four 12G-SDI interfaces is also compliant with the ST2082-12 video protocol standard and can generate video signals up to 8K 60Hz.
• 12G-SDI
• 12G SFP+
• HDMI 2.0

Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColorSpace CMS by Light Illusion.

• Color Space: 100% Rec.709 Color Space
• Color Calibration: Different calibrated color spaces such as Rec.709, NTSC, DCI-P3 can be selected
• 3D LUT: Built-in 3D-LUT, featuring 17 default logs and 6 user logs

Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.

• Waveform
• False Color
• Audio Vector (Lissajous)

Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+ Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring.

When the quad split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.

• SINGLE
• 2SI
• SQUARE
• HDMI

Easy-to-use
F1-F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, under scan and check field. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc
