AVMatrix SC1120 3G-SDI to HDMI and AV Scaling Converter

SKU: LLSC1120 MFR: SC1120
Earn VIP Reward Points

Key Features

  • Seamlessly convert 3G-SDI to HDMI with this high resolution format converter for crystal-clear video.
  • Enjoy real-time conversion of SD/HD/3G-SDI signals to HDMI or AV, ensuring no lag in your workflow.
  • Experience stable performance with auto input detection, making setup easy for any video format conversion.
  • This affordable price SDI to HDMI converter supports multiple formats, including 1080p and 720p.
  • Use the AVMatrix converter for live streaming, easily converting SDI feeds to HDMI for broader compatibility.
  • Versatile video format converter features AES/EBU digital audio I/O alongside analog audio input/output.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$17.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix SC1120 Specifications

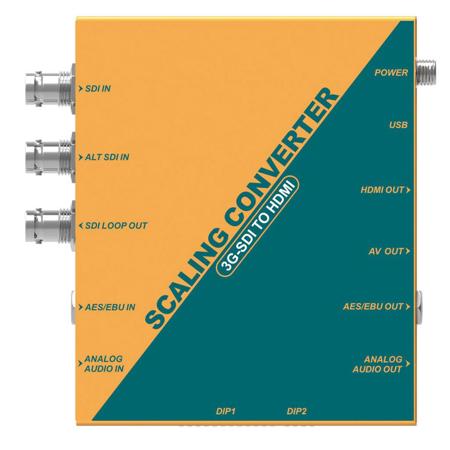

Input
  • SDI Video Input

    1x SD/HD/3G-SDI, 1x Alt 3G-SDI

  • AES/EBU Digital Audio Input

    1x 1/4" (6.35mm) TRS jack

  • Analog Audio Input

    1x 1/8" (3.5mm) jack

  • HDMI Video Output

    1x HDMI type A

  • AV Output

    1x 1/8" (3.5mm) jack

  • SDI Video Loop Output

    1x SD/HD/3G-SDI

  • AES/EBU Digital Audio Output

    1x 1/4" (6.35mm) TRS jack

  • Analog Audio Output

    1x 1/8" (3.5mm) jack

Formats

Jump to...
  • SDI Input Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080PsF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50, 525i 59.94

  • SDI Video Rate

    SD/HD/3G-SDI

  • SDI Compliance

    SMPTE 292M/SMPTE 259M/SMPTE 424M

  • SDI Color Space and Precision

    YUV 4:2:2

  • SDI Auto Switching

    Auto selects SD, HD and 3G-SDI on input

  • HDMI Output Format Support

    1080p 60/50/30/25/24
    1080i 60/50
    720p 60/50/30/25/24
    576i 50, 480i 60

  • HDMI Color Space and Precision

    YUV 4:2:2. YUV 4:4:4, RGB 4:4:4

  • AV Output Format Support

    NTSC, PAL

General

Jump to...
  • Dimensions (LxWxD)

    125.5 x 104 x 24.5mm (4.94 x 4.09 x 0.96")

  • UPC Code

    6971118000036

About AVMatrix SC1120

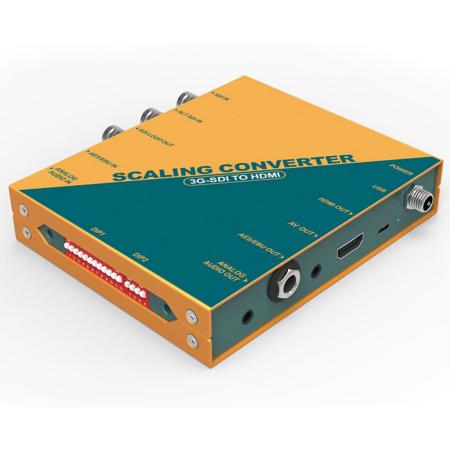

You can rely on the SC1120 3G-SDI to HDMI and AV Scaling Converter for seamless, high-quality signal conversion. This versatile device, manufactured by the trusted brand AVmatrix, effortlessly converts SDI signals into HDMI and AV formats simultaneously. With the ability to support up to 1080p 60Hz, this converter ensures your visuals are always crisp and clear.

The SC1120 converter is not just about video; it's also a master of audio embedding and de-embedding. It can seamlessly integrate an external AES/EBU or analog audio, or SDI embedded audio to HDMI output. Moreover, it can extract audio from the SDI input signal to external AES/EBU and analog audio. With standard 1/4" (6.3mm) TRS audio jack and 1/8" (3.5mm) audio jack, there's no need for custom cables.

One of the standout features of this converter is its redundant SDI input and re-clocked output. The Alt SDI In provides input redundancy, automatically switching to the redundant SDI input to prevent signal loss in the event of an issue with the main signal input. This makes it an ideal solution for studios, live shows, and outdoor live events. The re-clocked SDI output ensures long-distance transmission without any degradation in signal quality.

The SC1120 3G-SDI to HDMI and AV Scaling Converter is also designed for easy control. Adjust the DIP switches with your finger to change common settings quickly, making it perfect for on-the-go applications. For more advanced control, connect it to a PC via USB for remote setting adjustments and software upgrades. This durable and reliable converter is a must-have for any audio-visual professional.

AVMatrix SC1120 Features

  • Up/down scaling and frame rate conversion
  • AES/EBU or analog audio Embedding & De-embedding
  • Input signal automatic detection and configuration
  • LED indicators for power and signal lock
  • Control easily via the DIP switches
  • Remote control for PC via USB
  • Threaded locking power connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly convert 3G-SDI to HDMI with this high resolution format converter for crystal-clear video.
  • Enjoy real-time conversion of SD/HD/3G-SDI signals to HDMI or AV, ensuring no lag in your workflow.
  • Experience stable performance with auto input detection, making setup easy for any video format conversion.
  • This affordable price SDI to HDMI converter supports multiple formats, including 1080p and 720p.
  • Use the AVMatrix converter for live streaming, easily converting SDI feeds to HDMI for broader compatibility.
  • Versatile video format converter features AES/EBU digital audio I/O alongside analog audio input/output.

What's in the box:

  • Lilliput SC1120 3G-SDI to HDMI and AV Scaling Converter
  • 2x Bracket
  • Power Adapter
  • Micro USB Cable
  • Lilliput 3 Year Limited Warranty
