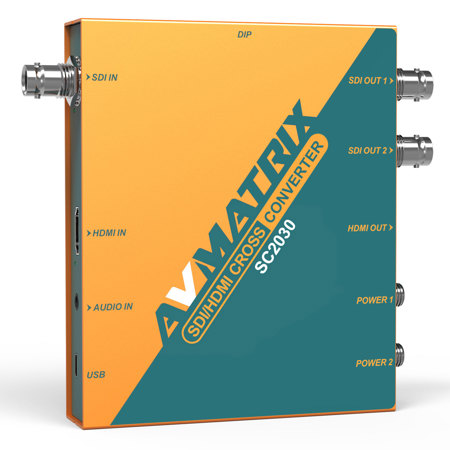

AVMatrix SC2030 3G/HD/SD-SDI/HDMI Updown Cross Converter

SKU: LLSC2030 MFR: SC2030
Earn VIP Reward Points

Key Features

  • Seamlessly convert HDMI and 3G-SDI signals with this reliable video format converter.
  • Achieve stable, high-resolution video output for professional broadcasting and live events.
  • Enjoy wide compatibility with various video formats, simplifying your video production workflow.
  • The AVMatrix SC2030 supports real-time streaming, perfect for live video content creation.
  • This easy-to-use up/down cross converter ensures optimal video quality for any display setup.
  • Get precise video format conversion at an affordable price, ideal for budget-conscious setups.
See More Product Details
Special Order?Estimated to Ship: 10/18/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

AVMatrix SC2030 Specifications

Inputs
  • HDMI Video Input

    1x HDMI type A

  • SDI Video Input

    1x SD/HD/3G-SDI

  • Analog Audio Input

    1x 1/8" (3.5mm) jack

Outputs

Jump to...
  • SDI Video Outputs

    2x SD/HD/3G-SDI

  • HDMI Video Output

    1x HDMI type A

  • SDI Input Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080Psf 30/29.97/25/24/23.98
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50
    525 59.94

  • SDI Video Rate

    SD/HD/3G-SDI

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 424,M

  • SDI Color Space and Precision

    YUV 4:2:2

  • HDMI Input Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    576p 50, 576i 50
    480i 60/59.94

  • HDMI Input Color Space and Precision

    RGB 4:4:4, YUV 4:2:2, YUV 4:4:4

  • SDI/HDMI Output Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50

  • Power Connector

    Threaded locking connector
    Micro USB

  • Voltage Range

    USB 3.3-5V
    DC 6-23V

  • Power Consumption

    4W

Environmental

Jump to...
  • Operating Temperature

    -4-140 Degree F (-20-60 Degree C)

  • Storage Temperature

    -22-158 Degree F (-30-70 Degree C)

  • Relative Humidity

    0%-90% non-condensing

Physical

Jump to...
  • Dimensions (L x W x D)

    49.4 x 40.9 x 9.64" (125.5 x 104 x 24.5mm)

  • Weight

    17.10 oz (485g)

  • UPC Code

    6971118000005

About AVMatrix SC2030

Enhance your broadcasting and AV post-production applications with the SC2030 3G/HD/SD-SDI/HDMI Updown Cross Converter, a robust and professional-grade device designed for seamless signal conversion. This innovative tool is expertly engineered to convert between SDI and HDMI signals, offering a wide range of transformation combinations to facilitate the inter-rotation of various resolutions.

The SC2030 Cross Converter stands out with its unique up/down scaling and frame rate conversion capabilities. Whether you're working with SDI or HDMI input, this compact yet powerful device can simultaneously convert to both SDI and HDMI, providing a multitude of HD video conversion possibilities. When both SDI and HDMI input signals are connected, the SC2030 defaults to SDI as the priority input signal, ensuring optimal performance and versatility.

This user-friendly converter is more than just a signal transformer. It also features analog audio embedding, allowing you to integrate an external analog audio into both SDI and HDMI outputs. With its convenient 3.5mm interface, adding external audio signals to your SDI or HDMI video output has never been easier.

Control over the SC2030 Cross Converter is a breeze, thanks to its built-in DIP switches. You can easily adjust the functions by finger, without the need for any additional tools, making it an ideal solution for on-the-go applications. For more advanced settings, the SC2030 can be remotely set using software when connected to a Windows PC via the USB port.

In summary, the SC2030 3G/HD/SD-SDI/HDMI Updown Cross Converter is a durable, high-quality, and versatile tool that offers comprehensive signal conversion and audio embedding capabilities. It's an essential addition to any professional video production, live event, or post-production setup.

AVMatrix SC2030 Features

  • Input: 1x HDMI or 1x SDI, 1x analog audio
  • Output: 2x 3G-SDI, 1x HDMI
  • Up/down scaling and frame rate conversion
  • Analog audio Embedding
  • HDMI/SDI Input automatic detection and configuration
  • Control easily via the DIP switches
  • USB is used for PC software control and power supply
  • Dual threaded locking power for redundant power supply
  • Detachable bracket design for wall mounting

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly convert HDMI and 3G-SDI signals with this reliable video format converter.
  • Achieve stable, high-resolution video output for professional broadcasting and live events.
  • Enjoy wide compatibility with various video formats, simplifying your video production workflow.
  • The AVMatrix SC2030 supports real-time streaming, perfect for live video content creation.
  • This easy-to-use up/down cross converter ensures optimal video quality for any display setup.
  • Get precise video format conversion at an affordable price, ideal for budget-conscious setups.

What's in the box:

  • SC2030 3G/HD/SD-SDI/HDMI Updown Cross Converter
  • 12V 1.2A DC Power Supply with International Socket
  • 2x Mounting Brackets
  • Aviatrix 3 Year Limited Warranty
