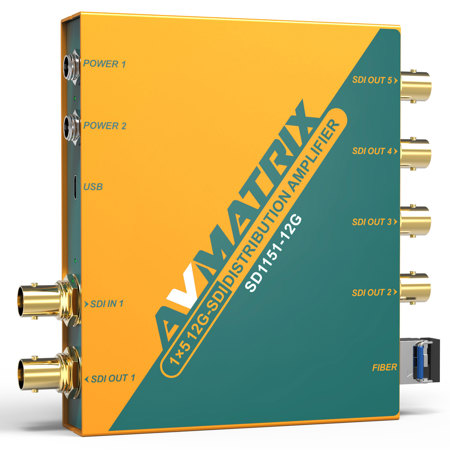

AVMatrix SD1151-12G 1x5 12G-SDI Distribution Amplifier with SFP Out Port

SKU: LLSD115112G MFR: SD1151-12G
Earn VIP Reward Points

Key Features

  • Distribute 12G-SDI video signals with this reliable 1x5 distribution amplifier.
  • Ensure signal integrity with low latency, supporting SD/HD/3G/6G/12G-SDI formats.
  • Expand your video setup using this distribution amplifier's wide compatibility.
  • This video distribution amplifier offers easy setup for quick integration.
  • Utilize the SFP port for optional fiber output, extending your signal range.
  • Power this distribution amplifier via USB or DC for flexible installation options.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix SD1151-12G Specifications

Connections

Connections

Jump to...
  • Inputs

    1x SD/HD/3G/6G/12G-SDI/DVB-ASI

  • Outputs

    5x SD/HD/3G/6G/12G-SDI/DVB-ASI
    1x SFP (optional)

  • SD Video Rate

    SD/HD/3G/6G/12G-SDI

  • SDI Compliance

    SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M

  • ASI Compliance

    DVB-ASI

  • SDI Color Space and Precision

    RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit

  • Power Connector

    Micro USB, Threaded locking connector

  • Voltage Range

    USB 5V, DC 5-17 V

  • Power Consumption

    1W

Environmental

Jump to...
  • Operating Temperature

    -4-140 Degree F (-20-60 Degree C)

  • Storage Temperature

    -22-158 Degree F (-30-70 Degree C)

  • Relative Humidity

    0%-90% non-condensing

Physical

Jump to...
  • Dimensions

    49.4 x 40.9 x 9.64" (125.5 x 104 x 24.5mm)

  • Weight

    1.06 lbs. (485g)

  • UPC Code

    6971118000180

About AVMatrix SD1151-12G

Under the umbrella of high-performance video equipment, the SD1151-12G stands out as a compact yet powerful 1x5 12G-SDI re-clocking distribution amplifier. This device is engineered to automatically detect SD/HD/3G/6G/12G-SDI input signals, streamlining your video production process.

Equipped with advanced cable equalization and re-clocking techniques, the SD1151-12G extends the SDI cable distance up to 400m for SD, 200m for HD, 120m for 3G, and 60m for 12G. This feature ensures consistent, high-quality signal transmission over extended distances, making it an ideal choice for professional broadcasting and post-production environments.

In addition to its primary function as an SDI distribution amplifier, the SD1151-12G also serves as an ASI distributor amplifier. All input and output ports are fully compatible with ASI signals, offering enhanced versatility for a wide range of video applications.

The SD1151-12G is designed to support 1x5 distribution, accommodating one input and four outputs for SDI and multi-rate SDI video signals up to 4k 60hz (12 Gbps). It also supports DVB-ASI signals, further expanding its functionality.

An optional feature of the SD1151-12G is its SFP output, which supports a 12G-SFP fiber output channel. This SFP module can be used as the transmitter for an optional fiber extender, making it a perfect match for the FE1121-12G - RX receiver.

The SD1151-12G also boasts SDI equalization and re-clocking capabilities, maximizing performance up to 60m for 12G-SDI and 140m for HD-SDI.

Designed with a focus on reliability, the SD1151-12G features premium components and dual redundant power supplies. This ensures the device continues to function optimally even in the event of a main power supply issue. Its compact design makes it a perfect fit for live broadcasts or post-production settings where space is at a premium.

AVMatrix SD1151-12G Features

  • 12G/6G/3G/HD/SD-SDI multi-rate signal processing
  • 5 buffered and re-clocked outputs
  • 1 channel SFP output for optional
  • Support DVB-ASI signal
  • Automatic cable equalization and signal retiming
  • All ancillary data is passed to the outputs
  • LED indicators for power and signal lock
  • Threaded locking power connector
  • Detachable bracket design for wall mounting

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute 12G-SDI video signals with this reliable 1x5 distribution amplifier.
  • Ensure signal integrity with low latency, supporting SD/HD/3G/6G/12G-SDI formats.
  • Expand your video setup using this distribution amplifier's wide compatibility.
  • This video distribution amplifier offers easy setup for quick integration.
  • Utilize the SFP port for optional fiber output, extending your signal range.
  • Power this distribution amplifier via USB or DC for flexible installation options.

What's in the box:

  • AVMatrix SD1151-12G 1x5 12G-SDI Distribution Amplifier
  • 5V Power Supply with International Socket
  • 2x Mounting Brackets
  • AVMatrix 3 Year Limited Warranty
