Lilliput UQ23 23.8" 16:9 4K Ultra HD Professional Production Studio Monitor, Supports 12G-SDI/HDMI 2.1, V-Mount, Black

This 4K 23.8 Inches 1200 nits high brightness Production Monitor, feature with 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. It comes with rich features, including 3D-LUT, waveform and quad-split, allowing four signals to be displayed simultaneously, specially designed for professional photographer, videographer or film maker. UQ23 also have a portable rugged suitcase for outdoor filmmaking.

23.8": 1200nits Portable Production Monitor
Production / Broadcast high-bright monitor for professional video cameras. Application for post-production & making movies

Sunlight Readable Screen
The 1200 nits high brightness screen not only provides director with accurately colors outdoors, but also combines with the HDR algorithm to deliver an unparalleled quality picture that plays an important role in post-production. HDR supports both HLG and PQ (ST2084 300/1000/10000).

A+ Precise Color Expression
A good quality A+ grade screen with color depth of 1.07B is carefully selected one in a hundred, so that every detail cannot be missed through accurately reproducing the rich colors of reality.

Accurate Color Calibration
The color spaces are calibrated by a precision calibrator, so the color space can be switched between BT.709, BT.2020, DCI-P3 and NTSC.

• 100% DCI-P3 86% BT.2020
• Built-in 3D-LUT, featuring 17 default logs and 6 user logs

8K 12G-SDI, HDMI Video Signal
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.

4x 12G-SDI | Single-link & Quad-link
Supports ST2082-10 and ST2082-12, the 12G-SDI quad-link generate video signal up to 8K 60Hz.

12G SFP+ Fiber Optic Video
Supports 12G SFP+ fiber optic video signal, transmits up to 4K 60Hz

HDMI 2.1 Input And Loop Output
Supports HDMI 2.1 video signal input and loop output, up to 8K 60Hz

Mountable Gears
Supports 1/4" and 3/8" interfaces, compatible with most brackets on the market.

Upgraded UI
Upgraded Ul of monitor brings extreme convenient and practical experience. Moreover, an abundance of shortcut buttons and knobs cover most of monitor functions and settings. User can quickly reach their desired functions.

Main Menu
Main menu with three levels, easy to use

F1-F4 & Knob Shortcuts
• Press F1-F4 to quickly call up functions
• Long press F1-F4 or knobs to customize different functions

LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.

Remote Control Application
Connect your computer to control the monitor via application. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

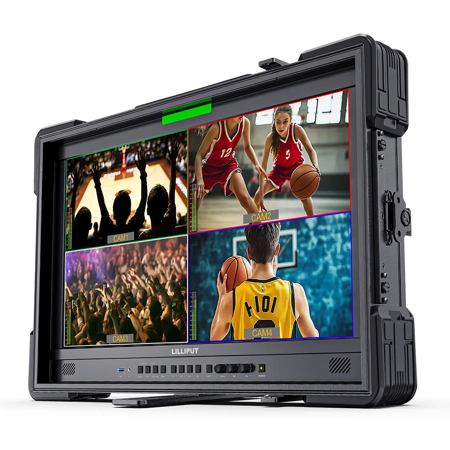

Quad-Split Multiview
In quad-split multiview mode, any input signal can be selected and changed among 12G-SDI, HDMI 2.1 and 12G-SFP+. Moreover, the images can be differentiated with colorful borders to enhance the senses of monitoring.

When the quad-split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.

Outdoor Filmmaking
A portable production monitor designed for outdoor filmmaking/broadcast live, the 1200 nits of high brightness screen effectively combats sunlight and allows for accurate color reproduction.

Video Post-Production
A high brightness 4K monitor with HDR is critical in film and video post-production to ensure accurate color grading, detail precision, and consistency across deliverables. Monitors must also feature advanced video connectivity and support more than 10 bit color depth to prevent banding.
