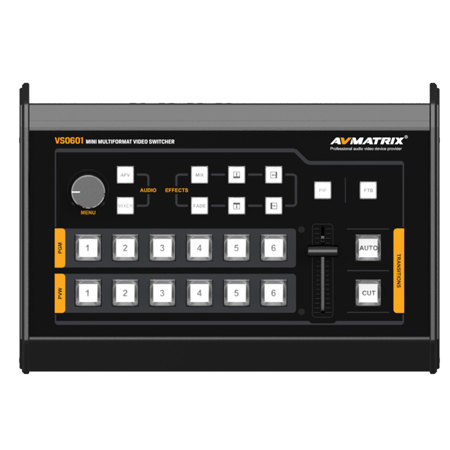

AVMatrix VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher

SKU: LLVS0601 MFR: VS0601
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 6 channels with this AVMatrix video switcher for dynamic live productions.
  • Enjoy wide compatibility with HDMI & SDI inputs, making integration with your existing setup easy.
  • Create engaging content using features like PIP, multiview, & transitions on this reliable switcher.
  • Achieve high resolution output at 1080p, ensuring your video productions look crisp and professional.
  • Take advantage of the audio mixer for perfect sound, enhancing your audience's viewing experience.
  • Compact & lightweight, this mini video switcher is perfect for on-the-go live streaming and events.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-04-25T07:14:43

Rated 5 out of 5

Solid switcher that has delivered

I recently moved to the AVMAtrix after several years of successful streams with an ATEM Mini. I needed an upgrade that could input SDI sources, scale when necessary, and most importantly- provide a multiview monitor view right from an HDMI out (rather than using special software via the USB-C connection.) The VS0601 was a bit of a leap of faith as I've never used their products and there's not much online in the way of reviews. After completing two month's worth of live streaming events with it I'm very satisfied. Positives - - Hardware build quality. It's solid. It feels like a commercial-grade piece of equipment. The buttons are tactile with solid confirmation when you click. - Multimonitor HDMI output option works very well with a clean GUI and no noticeable lag. - Video conversion from SDI and HDMI to USB-C works as expected. The device was plug-and-play on both my Mac and Windows streaming systems (in that both the OS and Wirecast saw the input source immediately with no additional updates, software, drivers, etc.) -Transitions and PIP work as expected. - I've only had limited opportunities to test the scaling feature, but so far it's worked. I've downscaled 4K native camera sources, laptop HDMI outputs of various resolutions, etc. The switcher took them all and standardized them as expected. Needs improvement - - The switcher takes audio inputs from either RCA or 3.5mm inputs. I would love if a 1/4" or XLR option was available, but it's nothing a quick adaption can't solve. - Audio adjustments need to be done within the GUI from the multiview output view. It's a pain to change inputs sources, adjust input levels, etc. - The multiview has a nice analog clock built into the GUI. However that clock is set to Pacific time with no apparent way to change it (that I could find.) All in all I know the 'cons' are things I would find on a more expensive professional switcher, so I'm really not complaining. For the price this unit is fantastic.

Scott B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix VS0601 Specifications

Functions

Functions

Jump to...
  • Transitions

    Manual T-bar/AUTO/CUT

  • Functions

    Wipe/Mix/Fade/FTB

  • Layouts

    Pip/Multiview

  • Audio Mixer

    Following/Mixing

  • Video Inputs

    4x SD/HD/3G-SDI(75 Ohms), 2x HDMI type-A (100 Ohms)

  • Analog Audio Inputs

    1x 3.5mm stereo audio, 1x RCA(L/R)

Outputs

Jump to...
  • PGM Outputs

    2x SD/HD/3G-SDI(75 Ohms), 1x HDMI type-A (100 Ohms)

  • AUX Output

    1x SD/HD/3G-SDI(75 Ohms)

  • Multiview Outputs

    1x 3G-SDI (75 Ohms), 1x HDMI type-A (100 Ohms)

  • Analog Audio Output

    1x 3.5mm stereo-audio, 1x RCA (L/R)

Data Interface

Jump to...
  • LAN

    1x RJ45, Synchronize local time

  • Tally

    1x DB-15

Standards

Jump to...
  • SDI Input Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080psF 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50 PAL, 525i 59.94 NTSC

  • HDMI Input Format Support

    1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98
    576i 50, 576 50

  • PGM Output Format

    1080p 60/59.94/50/30/29.97/25/24, 1080i 60/59.94/50

  • Multiview Output Format

    1080p 60

  • SDI Compliance

    SMPTE 292M/ SMPTE 259M/ SMPTE 424M

  • Current

    DC 12V, 1.2A

  • Voltage

    DC 6-17V

  • Power Supply

    DC 12V, 2A

Environmental

Jump to...
  • Operating Temperature

    -4-140 Degree F (-20-60 Degree C)

  • Storage Temperature

    -22-158 Degree F (-30-70 Degree C)

Physical

Jump to...
  • Dimensions (L x W x D)

    9.8 x 6.78 x 2.16" (249.2 x 172.3 x 55mm)

  • Weight

    2.20 lbs. (1kg)

  • UPC Code

    6971118000166

About AVMatrix VS0601

FEATURED REVIEWS

Solid switcher that has delivered

By Scott B.

I recently moved to the AVMAtrix after several years of successful streams with an ATEM Mini. I needed an upgrade that could input SDI sources, scale when necessary, and most importantly- provide a multiview monitor view right from an HDMI out (rather than using special software via the USB-C connection.) The VS0601 was a bit of a leap of faith as I've never used their products and there's not much online in the way of reviews. After completing two month's worth of live streaming events with...

View full Review

From live events to studio productions, the VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher is a compact, yet powerful solution for your video switching needs. Encased in a robust metal housing, this miniature design switcher is capable of handling six channels, offering seamless video switching, comprehensive audio mixing, and a variety of transition effects.

The VS0601's intelligent auto-detection feature effortlessly recognizes input signals, while its Program (PGM) output can be scaled to ensure compatibility with a wide range of equipment, enhancing its flexibility and adaptability. With its built-in scaler, the switcher can accept six input sources of varying formats and frame rates, and scale the PGM output to both 1080i and 1080p resolutions, providing high-definition video quality.

The Multiview Monitoring feature of the VS0601 Video Switcher simplifies the process of monitoring multiple cameras. It allows you to view six cameras, Preview (PVW), and Program (PGM) simultaneously on a single display. Additionally, a convenient clock and menu list are positioned in the lower right corner of the Multiview for easy access.

The Picture-in-Picture (PIP) function enables you to insert a secondary image into or outside the main picture. This feature allows for easy adjustment of window size and position, which can then be overlaid on the program for enhanced viewing experience.

Transitioning between PVW and PGM is smooth and effortless with the VS0601, offering Wipe, Mix, and Fade effects that can be controlled through the T-bar and Auto functions.

The built-in audio mixer can blend two external stereo 3.5mm and RCA audio inputs with six embedded audio channels, providing a rich and immersive audio experience.

Despite its extensive capabilities, the VS0601 Video Switcher is incredibly portable. Weighing around 1.7kg and accompanied by a handy carrying bag, it's the perfect companion for on-the-go productions. Whether you're a professional videographer or an enthusiast, the VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher is a cost-effective and versatile tool for your video production needs.

AVMatrix VS0601 Features

  • 6 channel inputs: 4x SDI & 2x HDMI inputs
  • 2x SDI & 1x HDMI PGM outputs, 1x SDI & 1x HDMI Multiview output
  • 1x SDI AUX output, can be selected as PGM or PVW out
  • Multi-format support, input format auto-detected and PGM outputs select-able
  • T-Bar/ AUTO/ CUT transitions
  • Mix/ Fade/ Wipe transition effects
  • PIP mode size and position adjustable
  • Audio mixer: 3.5mm stereo/RCA & SDI/HDMI embedded audio
  • GPIO for live tally system
  • FTB for emergency

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between 6 channels with this AVMatrix video switcher for dynamic live productions.
  • Enjoy wide compatibility with HDMI & SDI inputs, making integration with your existing setup easy.
  • Create engaging content using features like PIP, multiview, & transitions on this reliable switcher.
  • Achieve high resolution output at 1080p, ensuring your video productions look crisp and professional.
  • Take advantage of the audio mixer for perfect sound, enhancing your audience's viewing experience.
  • Compact & lightweight, this mini video switcher is perfect for on-the-go live streaming and events.

What's in the box:

  • AVMatrix VS0601 Mini 6-Channel SDI/HDMI Multi-Format Video Switcher
  • 12V 2A DC Power Supply
  • Tally Connector
  • Nylon Handbag
  • AVMatrix 2 Year Limited Warranty
