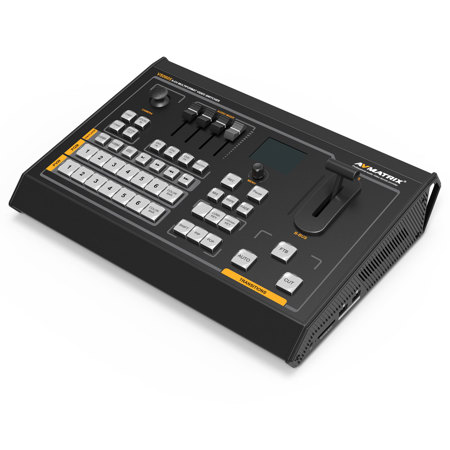

AVMatrix VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher

SKU: LLVS0605U MFR: VS0605U
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 6 channels with this AVMatrix video switcher for dynamic live productions.
  • Achieve high resolution broadcasts with SDI/HDMI inputs, perfect for professional streaming setups.
  • Enjoy low latency video switching, ensuring smooth transitions during live events and recordings.
  • Set up your multi-format streaming switcher easily, compatible with various devices for wide compatibility.
  • Record directly to SD card in H.264 format, capturing PGM up to 1080p60 for reliable connection.
  • Mix audio with flexible options, enhancing your video switcher experience with a built-in audio mixer.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

AVMatrix VS0605U Specifications

Functions

Functions

Jump to...
  • Transitions & Effects

    Manual T-bar/ AUTO/ CUT/Wipe/ Mix/ Fade/ FTB / color Bar

  • Streaming

    USB type-C uncompressed capture, Comply with UVC & UAC

  • Keys & Layouts

    Luma Key/ Chroma Key/ PiP/ POP/ Multiview

  • Audio Mixer

    Following/ Mixing

  • Record

    SD card, H.264, record for PGM up to 1080p60

  • Video Inputs

    SD/HD/3G-SDI (75 Ohm) x4, HDMI2.0 type-A (100 Ohm) x2, DVI-I(VGA-compatible) x2

  • USB Media Player

    USB type-A x2

  • Analog Audio Inputs

    XLR(balanced L/R) x1, RCA(L/R) x1

  • LAN

    RJ45x1, Synchronize local time

Outputs

Jump to...
  • PGM Streaming Output

    USB3.0 (type-C) x1

  • PGM Outputs

    HD/3G-SDI (75 Ohm) x2, HDMI type-A (100 Ohm) x2

  • Multiview Outputs

    HDMI type-A x1, 3G-SDI (75 Ohm) x1

  • Analog Audio Output

    RCA(L/R) x1, 3.5mm earphone slot x1

  • Remote Camera Control

    RS-422(Compatible RS485) x1

  • Tally Port

    DB-15

Standards

Jump to...
  • SDI Input Format Support

    1080p 60/59.94150/30/29.97/25/24/23.98
    1080psF 30/29.97/25124/23.98
    1080i 60/59.94/50
    720p 60/59.94/50/30/29.97/25/24/23.98
    625i 50 PAL, 525i 59.94 NTSC

  • HDMI Input Format Support

    4K 60/50/30, 2K 60/50/30
    1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    1080i 50/59.94/60
    720p 60/59.94/50/30/29.97/25/24/23.98
    576i 50, 576p 50

  • PGM Output Format

    1080p 60/50130/25/24, 1080i 60/50

  • Multiview Output Format

    1080p 60

  • SDI Compliance

    SMPTE 292M/ SMPTE 259M/ SMPTE 424M

  • USB Capture

    Compatible with USB3.0 and USB 2.0 up to 1080p60hz

  • Power Supply

    DC 12V 1.8A, 22W

Physical

Jump to...
  • Dimensions (L x W x D)

    13.3 x 10.2 x 2.7" (338.7 x 260 x 70.2mm)

  • Weight

    6.6 lbs (3kg)

  • UPC Code

    6971118000388

About AVMatrix VS0605U

How can you elevate your live event production to a professional level The VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher is the answer for advanced video switching, audio mixing, and high-quality video recording. This sophisticated unit integrates a recorder and USB media player, offering a comprehensive solution for your production needs.

With its innovative Multiview Monitoring feature, the VS0605U allows you to easily monitor six channel sources, as well as Preview (PVW) and Program (PGM) outputs, simultaneously on a single display. The convenience of a real-time clock and menu list positioned in the lower right corner of the Multiview enhances user experience and control.

The VS0605U is equipped with a built-in USB Type-C output, transforming the switcher into a high-performance webcam when connected to a PC. This feature enables you to capture uncompressed video and audio, streaming your production seamlessly to various platforms such as Twitch, YouTube, Facebook Live, and Zoom without the need for drivers. It is compatible with a wide range of operating systems, including Windows 7/8/10, Linux, and macOS.

This professional switcher is designed to handle multi-format sources, with the ability to detect and display up to six different SD and HD format video sources concurrently. The PGM output can be effortlessly up/down scaled to suit your needs, including 1080i and 1080p resolutions.

Picture-in-Picture (PIP) and Picture-outside-Picture (POP) functionalities allow for creative composition, enabling you to insert a second image into or outside the main picture with ease. Adjust size and position, then push to program for a polished look.

Chroma and Luma Key support provide real-time background matting, allowing you to use Chroma key to cut out green or blue screen backgrounds and Luma Key for black backgrounds, enhancing your production's visual effects.

Transition between PVW and PGM smoothly with the VS0605U's array of transition effects, including WIPE, MIX, and FADE, controlled through the T-Bar or AUTO settings with three transition rates for AUTO transitions.

The built-in audio mixer of the VS0605U is a high-quality asset, capable of mixing two external stereo XLR & RCA audio sources with six channels of embedded audio. Control three stereo channels individually with precision through the faders and corresponding buttons.

Recording is made simple with the built-in SD card slot, eliminating the need for an external recorder. Capture high-quality recordings of your event directly from the switcher in FHD 1080P at 60Hz.

Channels 5 and 6 support various signals, including a USB media player, which supports both video and image playback, adding versatility to your media sources.

For those utilizing PTZ cameras, the switcher also features PTZ camera control. Manage two cameras' pan, tilt, and zoom functions with a joystick and buttons through the RS422 / RS485 port, setting camera addresses and selecting VISCA & PELCO D/P protocols from the menu.

The VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher stands out as an innovative, high-quality choice for professionals seeking flexibility and sophistication in their video production equipment.

AVMatrix VS0605U Features

  • Uncompressed capture for live streaming, comply with UVC & UAC
  • 6 channel inputs: 4 x SDI and 2 x DVI-I/ HDMI/ VGA/ USB player
  • 3 x SDI/ HDMI PGM outputs, 1 x SDI AUX output, 2 x SDI/ HDMI multiview outputs
  • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
  • Luma Key/ Chroma Key for virtual studio
  • Record PGM video to SD card, up to 1080p60
  • Remote PTZ camera control: Visca & Pelco D/P protocols
  • PiP & PoP mode size and position is adjustable
  • Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio
  • Tally port for multiple camera system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between 6 channels with this AVMatrix video switcher for dynamic live productions.
  • Achieve high resolution broadcasts with SDI/HDMI inputs, perfect for professional streaming setups.
  • Enjoy low latency video switching, ensuring smooth transitions during live events and recordings.
  • Set up your multi-format streaming switcher easily, compatible with various devices for wide compatibility.
  • Record directly to SD card in H.264 format, capturing PGM up to 1080p60 for reliable connection.
  • Mix audio with flexible options, enhancing your video switcher experience with a built-in audio mixer.

What's in the box:

  • VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher
  • 12V 5A DC Power Supply
  • Tally Connector
  • USB 3.0 Cable
  • AVMatrix 2 Year Limited Warranty
