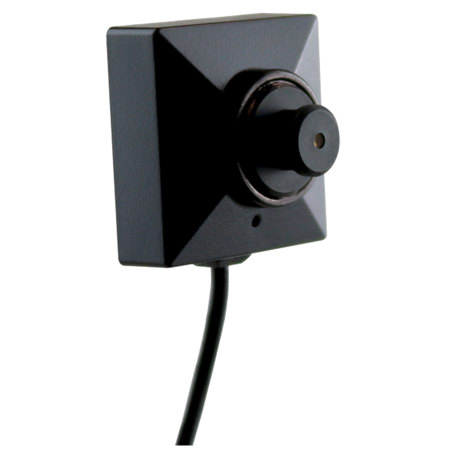

Lawmate BU-19 700 TV Line CCD Covert Button Camera

SKU: LMBU19

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?KERRY M : As before, the quality is what I look for regarding my profession.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lawmate BU-19 Specifications

  • Video System

    NTSC and PAL

  • Picture Element (H x V)

    NTSC: 976 x 494
    PAL: 976 x 582

  • Resolution

    700 TV lines

  • CCD Image Sensor

    SONY 1/3'' 960H HAD II CCD

  • S/N ratio (signal/noise)

    More than 54 db (AGC off)

  • MIN Illumination

    0.005lux / 50 IRE @ F1.2

  • Electronic Shutter

    NTSC: 1/60-1/100,000
    PAL: 1/50-1/100,000

  • Video Output

    1.0V p-p Composite at 75 ohm

  • Audio Output

    2Vp-p(MAX) 10KHz ohms Impedance

  • MIC Sensitivity

    Yes

  • Focal length

    4.3mm

  • Angle of View

    78 Degree

  • Power Supply Voltage

    DC 5V+/-0.5V

  • Power Supply Current

    180mA

  • Operation Temperature

    14 Degree to 122 Degree F (-10 Degree to 50 Degree C)

  • Battery Info

    Required, not included

  • Battery Material

    -

  • Battery Type

    9-Volt

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    0.86 x 0.86 x 0.47" (22 x 22 x 12mm)

  • Weight

    0.77 oz (22g)

  • UPC Code

    703624459093

About Lawmate BU-19

Be at the forefront of surveillance technology with the LawMate CM-BU19, an advanced upgrade to the renowned BU18 button camera. This high-quality, discreet device boasts an ultra-low light sensitivity with a minimum illumination of just 0.005 lux, ensuring optimal performance even in the most challenging lighting conditions.

The BU-19 700 TV Line CCD Covert Button Camera is designed with an enhanced 700 TV-line resolution, delivering crystal-clear images that surpass its predecessors. Its superior low light capture capabilities ensure that you never miss a detail, even when other cameras would only produce a dark image.

This small, durable, and easy-to-use covert camera comes with a kit that includes five interchangeable lens surrounds, three button types, and two screw types, offering versatility and adaptability to suit your specific needs. It seamlessly integrates with all existing LawMate recorders that have an analogue camera input socket, eliminating the need for an additional power supply.

Please note, this camera option is not compatible with Wi-Fi enabled LawMate recording solutions. Whether you're in need of a reliable security solution or a discreet surveillance tool, the BU-19 700 TV Line CCD Covert Button Camera is an excellent choice. Its black color further enhances its covert nature, making it less noticeable and more difficult to spot, ideal for all your covert surveillance or security needs.

Lawmate BU-19 Features

  • Various Covert Capability
  • Higher Resolution in 700 TV Lines
  • Better Sensitivity at 0.005 Lux F1.2
  • Able to work in the Day-Night
  • Miniature Size Designed
  • Built-In High Gain Microphone
  • Instant cable Jack for Quick installation

Key Features

  • Enhanced 700 TV-line resolution for capturing crystal-clear images
  • Versatile kit includes five interchangeable lens surrounds, three button types, & two screw types
  • Compatible with all existing LawMate recorders with an analogue camera input socket
  • Discreet, small, and durable design, ideal for covert surveillance and security purposes
  • Black color for added discretion and less visibility in covert operations

What's in the box:

  • LawMate BU-19 700 TV Line CCD Covert Button Camera
  • 5x Button/Screw Camera Heads (PAD-BU/SR)
  • Flat Lens Cover and Adhesive Tape (Z34-BU-18-DIY)
  • Switching Cable (S-PJ3R)
  • Battery Holder (BHD-SQ9V)
  • Instruction Guide
  • LawMate 1 Year Limited Warranty
