LawMate CMD-BU20U Full HD Button Covert Camera Kit

Lawmate CMD-BU20U Full HD Button Covert Camera Kit

SKU: LMCMDBU20U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lawmate CMD-BU20U Specifications

  • Video Resolution

    > 1200 TVL

  • Pixel Size

    2.8 x 2.8 micron

  • Resolution

    1920 x 1080

  • Image Sensor

    Sony 1/2.8" progressive-scan CMOS

  • Illumination

    0.08 lux, f/2.0 (50 IRE)

  • Aperture

    f/2.0

  • Lens Diameter

    4.3mm

  • Angle of View

    78 Degree

  • Depth of Field

    20" (51 cm)

  • Electronic Shutter

    1/8 to 1/30,000

  • Video Output

    RAW Dana

  • Audio Output

    2 Vpp (maximum)

  • Impedance

    10k Ohms

  • AGC

    > 52 db (AGC off)

  • S/N Ratio

    36 dB maximum

  • Power Supply Voltage

    3.3 VDC +/- 5%

  • Power Current

    200 mA

  • Operating Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    20 to 90%

  • Storage Temperature

    -22 to 176 Degree F (-30 to 80 Degree C)

  • Dimensions

    1.2 x 1.2 x 0.8" (30 x 30 x 20mm)

  • Weight

    0.35 oz (10g)

About Lawmate CMD-BU20U

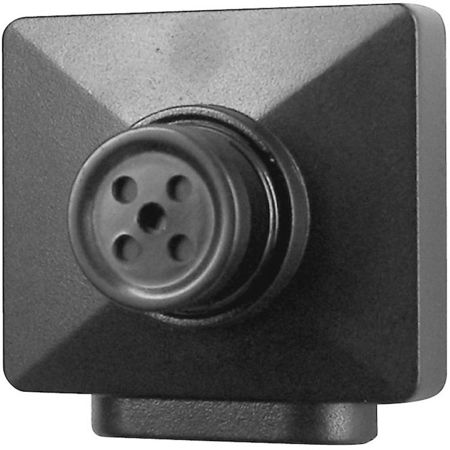

The HD Covert Camera Button Kit is the highest quality HD pinhole camera we've ever offered. Capture amazing 1080P HD video footage with this camera disguised as a shirt button or hide it in anything that you can put one of the fake screw heads in.

Designed to work with the PV-500EVO2U and PV-1000T5 DVRs only, this camera is not backward compatible with any previous models of the LawMate Portable DVRs. You must have one of the above DVRs in order for this camera to work.

Lawmate CMD-BU20U Features

  • 2MP Digital CMOS Pinhole Camera
  • 78 Degree Field of View
  • 1080P With over 1200 TV Lines of Resolution
  • 0.08 Lux Level
  • NTSC And PAL Compatibility
  • In-Line Microphone With Amplifier
  • WDR Wide Dynamic Range Image Sensor

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2MP Digital CMOS Pinhole Camera
  • 78 Degree Field of View
  • 1080P With over 1200 TV Lines of Resolution
  • 0.08 Lux Level
  • NTSC And PAL Compatibility
  • In-Line Microphone With Amplifier

What's in the box:

  • Full HD Button Covert Camera (CMD-BU20U)
  • 43 " Camera Cable
  • 12 " Camera Cable
  • External Microphone
  • Button Set
  • LawMate 1 Year Limited Warranty
