Lumens Media Processor LC200 CaptureVision Station with 2x VC-A50P Full HD IP PTZ Cameras, White

- LC200 CaptureVision Station -

4 in 1 Media processor - supports recording, switching, mixing and live streaming at 1080p
Just one stand-alone device allows you to mix four video sources, record, stream, and live-switch simultaneously, which is perfect to serve as the core system for your video project. The LC200 supports Full HD 1080p video and audio recording with gorgeous high definition images and crystal clear audio, which is excellent for lecture capture, conference recording and event streaming. It supports popular streaming platforms and content management systems such as Youtube, Facebook, Kaltura and Panopto.

Capture up to 4 video sources through multiple inputs. Supports a direct output to an HDMI display
The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI|HX cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide a complete audiovisual experience to your viewers! Furthermore, programmed video can directly show on a HDMI display without any device in between.

User-Friendly Multi-View director and advanced Scenes Switching to ease your video process
The powerful function allows users to get control of their recording and streaming content. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background and generate a decent video while streaming.

Features

4-Channel recording, streaming, live switching media processor
Lumens LC200 CaptureVision Station is an all-in-one media processor. Just one stand-alone device that allows you to mix four video sources, recording, streaming, and live-switching simultaneously; perfect to serve as the core system for your video project.

Bring multiple videos and audio together
The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide complete audiovisual experience to your viewers!

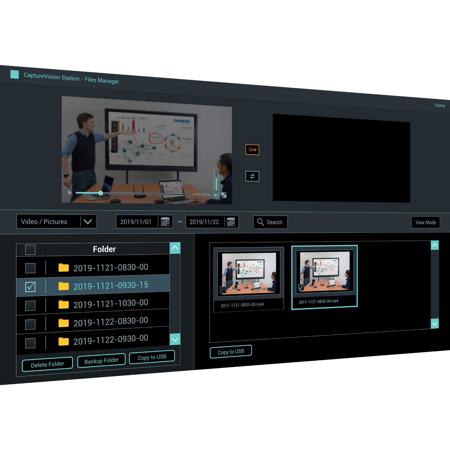

Record everything
The LC200 records not just the program-out video but also records four independent channels video as well with gorgeous high definition images and crystal clear audio, which also makes your post-production much easier.

Built-in 1TB HDD, USB port, FTP supports
The LC200 has a built-in 1Terabyte hard drive that can store up to 500 hours of video. You also have options to upload your recordings to an external USB device or the FTP server.

Live advanced scenes switch
The powerful function of advanced scenes switch, helps you capture the attention of your viewers and increase audience engagement in your event. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background.

Scheduling
Through Outlook or Google calendar, you can schedule your important events to create, record and stream your video content.

Content management system integration
The LC200 integrates with several content management systems like Panopto, Kaltura, and Opencast,etc. which are great applications for enterprise video and school lectures.

Multi-stream anywhere
Live streaming is a powerful tool. The LC200 can live stream up to three destinations like YouTube, Facebook, Twitter or twitch.

- VC-A50P Full HD IP PTZ Camera -

The Lumens VC-A50P HD Pan/Tilt/Zoom (PTZ) IP camera is equipped with a professional 1/2.8" image sensor with Full HD 1080p output at 60 fps. It's power supplied through the Power over Ethernet (PoE) providing an economical and easy solution. The superior 20x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a lecture hall.

The VC-A50P has different interfaces like Ethernet, HDMI, and 3G-SDI. It supports live broadcasting with MJPEG, H.264 / SVC format and further more its low-latency is less than 120ms. These features not only allow for simultaneous image outputs, they also result in the best image quality and is compatible with all video equipment. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations.

The VC-A50P is applicable for lecture recording, videoconferencing, and live broadcasting.

IP Camera
No need for extra cables, connect and control via IP.

Live Broadcasting
VC-A50P is applicable for lecture recording, videoconferencing, and live broadcasting.

SRT protocol
Supports SRT(Secure Reliable Transport) protocol that optimizes a streaming performance.

Features

Image Quality
The VC-A50P is equipped with a professional 1/2.8" image sensor with Full HD 1080p output resolution. The sensor provides high color reproduction, high-definition signals, and crystal-clear image quality.

Supports PoE+ for Easy Installation
Power supplied through the PoE+ (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.

Wide Range Pan/Tilt/Zoom Action
The VC-A50P has a wide shooting area (pan angle from -170 Degree to +170 Degree ; tilt angle from -30 Degree to +90 Degree ), as well as quiet, fast, and precise positioning movements.

Multiple Signal Interface
The VC-A50P has multiple interfaces like Ethernet, HDMI, and 3G-SDI for simultaneous image outputs.

Audio Input Support
The VC-A50P supports stereo audio input and AAC encoding transmission through the Internet, SDI and HDMI to extend the distance of the audio device. Through this transmission, sound quality is enhanced and installation costs are reduced.

Low-Latency Streaming
The VC-A50P supports MJPEG/ H.264 / SVC video compression format which reduce the bandwidth and it also supports low-latency and the fast response time is less than 120 ms so that allows human-unnoticeable delays between live image and streaming video.

RS-232/422 Remote Control
The camera's settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232/422 interface.

Remote image monitoring for IP Control
The built-in web page allow you to use an IP browser to remotely view and control camera using a PC, Mac or mobile devices. IP video can be transmitted to up to 5 terminals.

Free Camera Control Software
Free Lumens camera control software for controlling Lumens PTZ cameras and pre-view function supports 1080p with 60fps video output. Easy to adjust camera pan, tilt, zoom operation, pre-set and image setting.

Support an upgrade for NDI|HX compatibility
VC-A50P can be upgraded to support NDI|HX technology for NDI-based video production.
