LawMate PV-DY10I DIY Covert Camera & WiFi DVR Module

Lawmate PV-DY10I DIY Covert Camera & WiFi DVR Module

SKU: LMPVDY10I
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lawmate PV-DY10I Specifications

  • Image Sensor

    1/3" progressive CMOS sensor (3 MP)

  • Sensor Resolution

    2304 x 1536

  • Sensor Sensitivity

    3.3 lux at f/2.0

  • Lens

    4mm, f/3.2

  • Angle of View

    66 Degree

  • Algorithm

    H.264, JPEG

  • File Format

    MOV, JPEG

  • Recording Mode

    Auto / manual / motion detection

  • Recording Resolution

    1920 x 1080
    1280 x 720
    848 x 480

  • Frame Rate

    Up to 30 fps

  • Image Resolution

    1920 x 1080

  • Wi-Fi Standard

    IEEE 802.11b/g/n

  • Wi-Fi Protocol

    RTSP

  • Memory Type

    Supports up to 32 GB microSD card (16 GB card included)

  • Data Interface

    Mini-USB 2.0

  • Date/Time Stamp

    YYYY/MM/DD
    HH:MM:SS

  • Power Input

    5 VDC

  • Power Consumption

    450 to 500 mA (Wi-Fi off)
    +60 mA (Wi-Fi on)

    Standby: 8 to 8.5 mA

  • Charging Time

    240 minutes (800 mA)

  • Battery

    3.7 VDC, 2200 mA lithium

  • Battery Run Time

    Wi-Fi On:
    180 minutes at 1920 x 1080
    195 minutes at 1280 x 720
    210 minutes at 848 x 480

    Wi-Fi Off:
    210 minutes at 1920 x 1080
    225 minutes at 1280 x 720
    240 minutes at 848 x 480

  • Recording Time

    300 minutes at 1920 x 1080 resolution on a 16 GB microSD card (included)

  • Alert

    Vibration Alert: Power on/off, recording, low battery

About Lawmate PV-DY10I

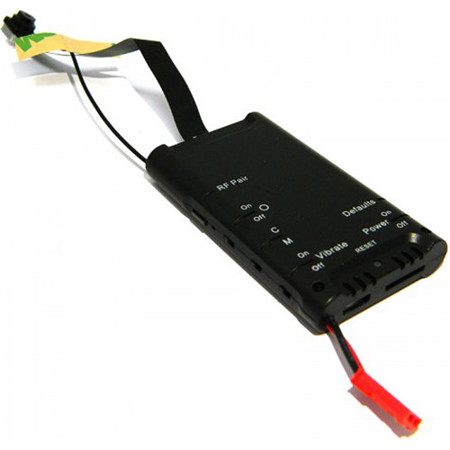

Build your own hidden camera with the power of LawMate's new PV-DY10i DIY Hidden Camera & WiFi DVR Module. This micro DVR includes everything you need to custom build your own WiFi hidden camera into almost anything imaginable.

DO-IT-YOURSELF
WiFi Hidden Camera DVR Module

The PV-DY10i is a surveillance professional's dream. A micro, high-resolution 3MP 1/3" progressive CMOS sensor camera is attached to a WiFi DVR module that you can hide in almost anything. Your only limitation is your imagination.

WiFi Hotspot Compatible
Deploy It Almost Anywhere

Watch your video live from virtually anywhere in the world with the free PV-Cam Viewer software. Compatibility with portable hotspots makes this ideal for live remote surveillance. Imagine the possibilities.

Multiple Recording Modes and Resolutions
Multiple recording modes and resolutions put you in complete control. Always on or motion activated video can be enabled and resolution from WVGA to 720P, to 1080P is fully adjustable.

Micro SD Card Stores Recorder Video
All of your video is stored your micro SD Card. When live viewing isn't what you need simply disable the WiFi system and the on board recorder will save your video to a removable micro SD card (up to 32GB).

Lawmate PV-DY10I Features

  • Do-It-Yourself Hidden Camera & WiFi Module DVR
  • 3MP 1/3" Progressive CMOS Sensor
  • On Board DVR Saves Video to Micro SD Card
  • 1080P / 720P / WVGA Adjustable Resolution
  • P2P IP Connection - View From Anywhere
  • Free PV-CAM Viewer App Included
  • Compatible with LawMate RF Remote Control
  • Record Time Up To 600 Mins with 32GB SD Card

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Do-It-Yourself Hidden Camera & WiFi Module DVR
  • 3MP 1/3" Progressive CMOS Sensor
  • On Board DVR Saves Video to Micro SD Card
  • 1080P / 720P / WVGA Adjustable Resolution
  • P2P IP Connection - View From Anywhere
  • Free PV-CAM Viewer App Included

What's in the box:

  • DIY Covert Camera & WiFi DVR Module (PV-DY10I)
  • USB Cable
  • 16GB microSD Card
  • SD Adapter
  • LawMate 1 Year Limited Warranty
