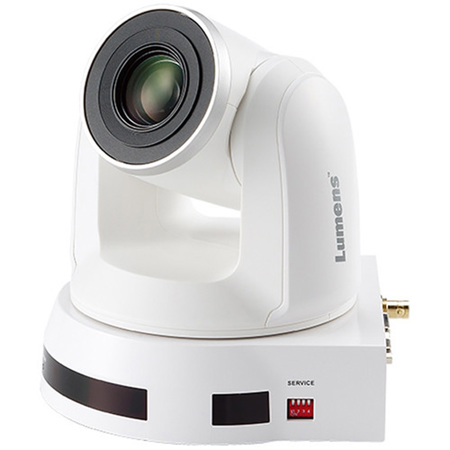

Lumens VC-A70H 9MP 4K UHD HDMI/HDBase T PTZ Camera with Built-In Tally Light, 12x Optical Zoom, White
SKU: LMVCA70HW
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Lumens VC-A70H
The Lumens VC-A70H 4K Ultra HD PTZ camera is equipped with a professional 1/2.3-type progressive scan Exmor R" CMOS sensor with 9 megapixels output resolution that delivers a superb clear and vivid live image. The superior 12x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness of a conference room.
The camera covers a wide shooting angle and utilizes a highly efficient DC motor servo controller to achieve high-speed, quiet and precise positioning movements with smooth PTZ operations. The VC-A70H HD PTZ camera has HDBaseT interfaces allowing Ultra HD resolution and long distance transmission up to 70 meters which carries power, video, and control through one CAT5e/6 cable. Lumens VC-A70H 4K Ultra HD PTZ camera is applicable for lecture capture, videoconferencing and broadcasting systems.
4K Ultra HD Image Quality
4K UHD 30 fps and Full HD 1080p 60fps output resolution providing high color reproduction, high definition, and a crystal-clear image. Includes 12x optical zoom lens without any distortions.
Super-wide 74 Degree HFOV
A panoramic 74 degrees Horizontal Field of View makes it suitable for any room size.
PoE Function
It simplifies the installation process, and reduces system integration costs.
Features
Image Quality
Equipped with a professional image sensor with 4K UHD 30 fps and Full HD 1080p 60fps output resolution providing high color reproduction, high definition, and a crystal-clear image.
Advanced Image Processing
The advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom & capture function.
Support HDBaseT Interface
The VC-A70H 4K Ultra HD PTZ camera has a HDBaseT interface. The camera only needs one CAT5e/6 cable for its power supply, control and video output. This feature not only simplifies the installation process, it also reduces system integration costs.
HDMI and HDBaseT Image Output Simultaneously
The VC-A70H supports HDMI and HDBaseT interface allowing two simultaneous image outputs with the best possible image quality.
Built-in Tally Light
The VC-A70H built-in tally light. The LED lights turn on when the camera is in operation. This is an essential function for a broadcast studio or any applications with more than two PTZ cameras.
Panoramic Viewing Angle
The VC-A70H has a panoramic 74 Degree horizontal field of view that helps users achieve a wider viewing area.
Lumens VC-A70H Features
- 4K UHD 30fps and 1080P 60fps video signal output format
- 12x optical zoom with 2x clear Image zoom, total 24x zoom
- 74 degrees Horizontal Field of View (HFoV)
- HDBaseT interface carries power, video and control through one CAT5e/6 cable
- HDMI and HDBase T image output simultaneously
- Built-in Tally light
- Maximum horizontal/vertical speed of rotation: 300 degrees/sec
- Wide Pan/ Tilt/Zoom mechanism: Horizontal viewing angle: -170 Degree to +170 Degree Tilting angle up to 90 Degree , and down to -30 Degree
- Up to 128 user defined preset modes to allow ease of use in all environments
- Clear images without blur even while being operated
- High speed, stable, quiet, and effortless positioning ensure the highest quality images
