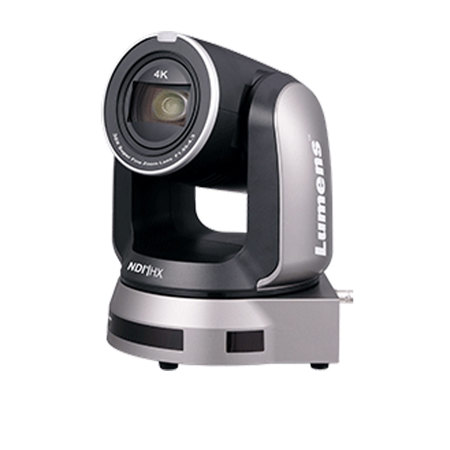

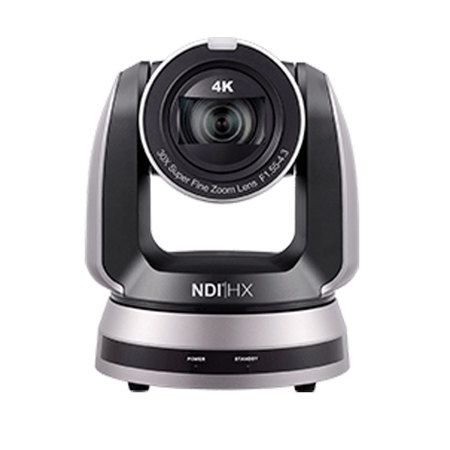

Lumens VC-A71SN 4K UltraHD NDI|HX3/12G-SDI/HDMI 30x PTZ Camera, Black

SKU: LMVCA71SNB MFR: VC-A71SNB
Earn VIP Reward Points

Key Features

  • Capture stunning 4K Ultra HD video with the Lumens PTZ camera's exceptional clarity.
  • Experience smooth, precise control with 30x optical zoom for detailed close-ups, remotely.
  • Easily integrate this PTZ camera via NDI|HX3, 12G-SDI, or HDMI for versatile connectivity.
  • Perfect for live streaming, broadcast, or video conferencing with reliable performance.
  • Enjoy flexible installation with PoE++ support, simplifying setup and reducing cable clutter.
  • Benefit from the advanced autofocus and wide dynamic range for optimal image quality.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lumens VC-A71SN Specifications

Camera
  • Sensor

    1/1.8" 9.17 MP CMOS

  • Video Format

    2160p: 59.94 / 50 / 29.97 / 25
    1080p: 59.94 / 50 / 29.97 / 25
    1080i: 59.94 / 50
    720p: 59.94 / 50

  • Video Output (HD) Interface

    12G-SDI / HDMI 2.0 / Ethernet / USB 3.0

  • Optical Zoom

    30x

  • Digital Zoom

    12x

  • Horizontal Viewing Angle

    63 Degree (Wide) to 3.7 Degree (Tele)

  • Vertical Viewing Angle

    35.4 Degree (Wide) to 2.1 Degree (Tele)

  • Diagonal Viewing Angle

    72.3 Degree (Wide) to 4.2 Degree (Tele)

  • Aperture

    F1.6 - F4.8

  • Focal Length

    6.5mm - 202mm

  • Shutter Speed

    1/1 - 1/10,000 sec

  • Minimum Object Distance

    1.5m (Wide/Tele)

  • Video S/N Ratio

    > 50dB

  • Minimum Illumination

    0.05 lux (F1.6, 50IRE, 30fps)

  • Focus System

    Auto/Manual/Smart AF

  • Gain Control

    Auto/Manual

  • White Balance

    Auto/Manual

  • Exposure Control

    Auto/Manual

  • WDR

    Yes

  • 3D NR

    Yes

  • Image Flip

    Yes

  • Color Space

    Standard/BT.2020/REC.709

  • AR/VR Systems

    FreeD

  • Tally Light

    Yes

Pan & Tilt

Jump to...
  • Panning Angle

    +170 to -170 Degree

  • Panning Speed

    300 Degree /sec

  • Tilting Angle

    +90 to -30 Degree

  • Tilting Speed

    300 Degree /sec

  • Preset Positions

    256

  • HDMI / 12G-SDI

    2160p 59.94

  • IP Stream

    NDI:
    HEVC 4K 59.94fps
    H.264 640x360 29.97fps
    or
    RTSP:
    HEVC 4K 59.94fps
    H.264 1080p 59.94fps
    H.264 640x360 29.97fps

  • IP Compression

    HEVC/H.264

  • USB Output

    H.264 4K 30fps
    MJPEG 1080p 30fps

  • USB Compression

    H.264/MJPEG

Network

Jump to...
  • PoE

    PoE++ (IEEE802.3bt)

  • Input

    Line In/MIC In , Phone Jack 3.5mm x1

  • Output

    Ethernet/12G-SDI/HDMI 2.0/USB 3.0

  • Compression Format

    G.711

Camera Control

Jump to...
  • Interface

    RS-232/RS-422/Ethernet/USB 3.0/Remote

  • Protocol

    VISCA/VISCAIP/PELCO D/NDI/UVC

General

Jump to...
  • DC In

    12V +/- 20%

  • Power Consumption

    PoE: 27.5 W
    DC In: 27 W

Physical

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    9.1 x 7.4 x 7.4" (232 x 188 x 189mm)

  • Weight

    6.6 lbs (3kg)

About Lumens VC-A71SN

A cutting-edge addition to the world of professional videography, the Lumens VC-A71SN 4K UltraHD NDI|HX3/12G-SDI/HDMI 30x PTZ Camera, Black, is a high-performance device designed to deliver superior video quality. This 4K 60fps PTZ camera is equipped with 12G-SDI and NDI|HX3 outputs, offering users the flexibility to integrate into UltraHD broadcast workflows or transmit UHD video over IP networks with minimal latency.

The VC-A71SN stands out in demanding environments such as broadcast studios, remote locations, concert halls, sports arenas, and virtual sets, thanks to its support for professional color spaces and SRT. It also features the FreeD protocol, making it a versatile tool for live VR/AR video production without the need for additional sensors.

The camera's NDI|HX3 technology ensures high-quality video transmission with ultra-low latency, allowing for seamless connection to NDI networks. The 12G-SDI video output delivers UltraHD at up to 60 frames per second, capturing fast motion and providing smooth video output.

The Lumens VC-A71SN also supports the BT.2020 color gamut, ensuring wide and precise color reproduction. This feature makes it easy to match the camera with other devices and deliver video output optimized for the latest generation of UltraHD monitors.

One of the standout features of the VC-A71SN is its smooth PTZ movement. Thanks to Lumens' innovative mechanical transmission mechanism and high-precision motor control, this camera achieves high-speed movement without any judder, with fully customizable speed of movement.

In summary, the Lumens VC-A71SN 4K UltraHD NDI|HX3/12G-SDI/HDMI 30x PTZ Camera, Black, is a robust and versatile tool for professionals seeking superior video quality and performance.

Lumens VC-A71SN Features

  • 2160p 60, 30x optical zoom, 1/1.8" Sensor
  • 12G-SDI, HDMI, Ethernet, USB3.0 output
  • Support NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG- TS / SRT
  • Support FreeD protocol for live VR/AR production
  • Support BT.2020 color space

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Capture stunning 4K Ultra HD video with the Lumens PTZ camera's exceptional clarity.
  • Experience smooth, precise control with 30x optical zoom for detailed close-ups, remotely.
  • Easily integrate this PTZ camera via NDI|HX3, 12G-SDI, or HDMI for versatile connectivity.
  • Perfect for live streaming, broadcast, or video conferencing with reliable performance.
  • Enjoy flexible installation with PoE++ support, simplifying setup and reducing cable clutter.
  • Benefit from the advanced autofocus and wide dynamic range for optimal image quality.

What's in the box:

  • Lumens VC-A71SN 4K Ultra HD NDI|HX3/12G-SDI/HDMI 30x PTZ Camera (Black)
  • Lumens 5 Year Limited Warranty
