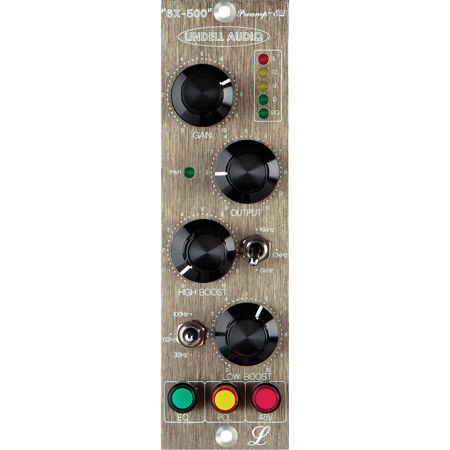

Lindell Audio 6X-500 Transformer Coupled Microphone Preamplifier with Passive Pultec Style Equalizer

SKU: LN6X500 MFR: 6X-500
Earn VIP Reward Points

Key Features

  • Experience pristine sound with this low noise microphone preamplifier for studio-quality recordings.
  • Achieve versatile tone shaping using the integrated passive Pultec-style equalizer for rich audio.
  • Dial in the perfect gain range with up to 65dB of clean boost for any microphone source.
  • Optimize your signal path with selectable impedance matching for superior mic and preamp performance.
  • Integrate seamlessly with your 500 series rack for a compact, powerful studio channel strip solution.
  • Enjoy robust build quality ensuring years of reliable performance from this transformer-coupled preamp.
See More Product Details
Special Order?Estimated to Ship: 09/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lindell Audio 6X-500 Specifications

  • Compatibility

    All 500 series power chassis

  • Pin Compatibility

    990&2520 type op-amps

  • Number of Channels

    Single

  • Gain

    65dB

  • Filter Type

    Passive Pultec style

  • Inputs

    On 500 series chassis

  • Outputs

    On 500 series chassis

  • Frequency Bands

    30, 60 and 100 Hz, +/-10%
    6, 10 and 16 kHz, +/-10%

  • Range (Boost/Cut)

    15 dB high end boost

  • Runs on

    +/-16V

  • Input Impedance

    2.4kOhms

  • Output Impedance

    70Ohms

  • Maximum Output

    +28dbu

  • Frequency Response

    20Hz-20kHz

  • Phantom Power

    48V

  • Power Requirements

    From 500 series chassis

  • Power Consumption

    100mA

  • Dimensions

    1.5 x 5.25 x 7" / 38.10 x 133.35 x 177.80mm

About Lindell Audio 6X-500

Become an audio master with the 6X-500 Transformer Coupled Microphone Preamplifier with Passive Pultec Style Equalizer. This professional-grade, single-channel preamplifier, brought to you by the reputable Lindell Audio, is a reliable and innovative addition to any recording studio or live sound setup.

Built with an all-discrete design, this preamplifier is based on Lindell Audio's hybrid amplifier technology, ensuring high-quality and durable performance. It can be upgraded with our Vintage OPA for those seeking an even more refined sound experience.

The standout feature of this preamplifier is its passive 2-band equalizer, inspired by the classic Pultec design. Known for its ability to add warmth and character to audio signals, this equalizer offers up to 15db boost of the smoothest high-end sounds and the most robust low-end tones.

The 6X-500 Transformer Coupled Microphone Preamplifier with Passive Pultec Style Equalizer delivers a sound that can be best described as fast, punchy, and in-your-face. It's the perfect tool for musicians and audio engineers looking to amplify and equalize their audio signals with precision and style.

Lindell Audio 6X-500 Features

  • Transformer coupled Balanced inputs and Balanced Outputs
  • Up to 65db of Gain
  • Passive Pultec Equalizer. Inductor + hybrid gain make-up amplifier
  • 3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
  • 3 Step Switched Eq High Freq Bosst 6kHz, 10kHz, 16kHz +/-10%
  • Selectable High Boost Bandwidth on pcb
  • Polarity Reverse
  • 48V Phantom Power
  • 5-LED VU Meters
  • Gold Plated Pcb

Product Documents

User Manual

Key Features

  • Experience pristine sound with this low noise microphone preamplifier for studio-quality recordings.
  • Achieve versatile tone shaping using the integrated passive Pultec-style equalizer for rich audio.
  • Dial in the perfect gain range with up to 65dB of clean boost for any microphone source.
  • Optimize your signal path with selectable impedance matching for superior mic and preamp performance.
  • Integrate seamlessly with your 500 series rack for a compact, powerful studio channel strip solution.
  • Enjoy robust build quality ensuring years of reliable performance from this transformer-coupled preamp.

What's in the box:

  • Lindell Audio 6X-500 Transformer Coupled Microphone Preamplifier with Passive Pultec Style Equalizer
  • Lindell Audio 1 Year Limited Warranty
