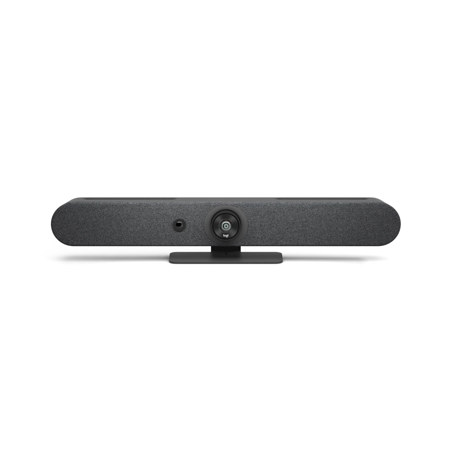

Logitech Rally Bar Mini 4K Ultra HD All-in-One Video Conference Camera, TAA Compliant, Graphite

SKU: LO960001563 MFR: 960-001563
Earn VIP Reward Points
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Logitech Rally Bar Mini Specifications

General

General

Jump to...
  • Color

    Graphite

  • Compatibility

    Internet Connection: Wired or wireless
    USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
    Appliance Mode: Room solution software license (not included)

  • Built-in Components

    6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform

  • Enclosure

    All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

  • Device Management

    Logitech Sync

  • Displays Supported

    2

  • Display Resolution

    Up to 1080p

  • Network Protocol Support

    IPv4, IPv6

  • Proxy Support

    IP based Proxy, FQDN based Proxy, Proxy using PAC file

  • Country of Origin

    Taiwan

  • Resolution

    4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

  • Pan

    Motorized +/-25 Degree

  • Tilt

    Motorized +/-15 Degree

  • Zoom

    4X HD digital zoom

  • Diagonal Field of View

    120 Degree

  • Horizontal Field of View

    113 Degree

  • Vertical Field of View

    80.7 Degree

  • Total Room Coverage

    163 Degree horizontal x 110 Degree vertical (field of view + pan and tilt)

Woofer Speaker

Jump to...
  • Driver

    2.7" (70mm)

  • Sensitivity

    92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1/2 meter

  • Rated Power

    8W

  • THD

    1kHz < 2% at 1W

  • Speaker Sampling Rate

    48KHz

  • Impedance

    4 Ohms

Midrange Speakers

Jump to...
  • Drivers

    0.08 x 1.69" (2x 43mm)

  • Sensitivity

    84 dB SPL @ 1W/1M

  • Rated Power

    4W

  • THD

    1kHz < 2% at 1W

  • Speaker Sampling Rate

    48KHz

  • Impedance

    4 Ohms

Microphones

Jump to...
  • Frequency Response

    90Hz - 16kHz

  • Sensitivity

    >-36dBFS +/-1dB at 1Pa

  • Microphone Data Rate Output

    48 kHz

  • Pickup Range

    Up to 23' (7m)

  • Beamforming Elements

    6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams

  • Audio Processing

    AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

  • Noise Suppression

    AI based de-noising algorithm

  • Add-on Mics

    Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense Technologies

Jump to...
  • RightLight

    Renders natural skin tones for each participant

  • RightSight

    Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

  • RightSound

    Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

  • Grid View

    Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Interfaces

Jump to...
  • HDMI Out

    2x (up to 1080p)

  • HDMI In

    1x

  • USB

    3x Type A, 1x Type C

  • Network

    10/100/1G Ethernet

  • Wi-Fi

    802.11a/b/g/n/ac (MIMO)

  • External Mic Input

    Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

  • Remote Control

    Bluetooth Low Energy

Power & Cables

Jump to...
  • Power supply

    Auto-sensing

  • Operating Voltage/Power

    100-240V, 19V, 4.74A

  • Power Supply Dimensions

    5 x 2.0 x 1.18" (127 x 51 x 30mm)

  • DC Cable

    5' (1.5m)

  • AC Cable

    3.28' (1m)

  • HDMI 1.4 Cable

    6.5' (2m)

  • USB A to USB C 3.0 Cable

    7.2' (2.2m)

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Humidity

    10 to 95%

  • BTU/hr

    57 idle, 64 in meeting

Security

Jump to...
  • Full Disk Encryption

    AES-128

  • Data Encryption

    Symmetric Keys, PKI

  • Device Identity

    Protected by device attestation

  • Device Access

    Authenticated using API

  • Key Protection

    Arm TrustZone, RPMP

Accessories

Jump to...
  • Mounts

    Wall Mount for Video Bars, TV Mount for Video Bars

  • Audio

    Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

  • Connectivity

    Logitech Strong USB Cable 32.81' (10m)
    65.6' (25m)
    147.64' (45m)

  • Touch Controller

    Logitech Tap and Tap IP

Certifications & Compatibility

Jump to...
  • Certifications & Compatibility

    For the latest information on certifications and compatibility
    Microsoft Teams Rooms on Android
    Microsoft Teams Rooms on Windows

Physical

Jump to...
  • Lens Depth

    0.73" (18.5mm)

  • Dimensions (H x W x D)

    3.6 x 28.3 x 3.98" (91.4 x 719 x 101mm)

  • Weight

    8.88 lbs (4.03kg)

  • UPC Code

    097855183163

About Logitech Rally Bar Mini

Logitech Rally Bar Mini is an all-in-one video bar for small to medium meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

All-in-One Video Bar for Small and Medium Rooms
Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics, AI-driven audio enhancements, seamless remote management through Logitech Sync, and additional advanced features.

Expand the Conversation
Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

Everyone Is Seen and Heard
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

Manage Remotely with Sync
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

Certified for Business
Leverage the video conferencing platforms and features you already use. Rally Bar Mini is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.

• Microsoft
• Zoom
• Google Meet
• Tencent Meeting

A Choice You Will Feel Good About
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

Made With Recycled Plastic
The plastic parts in the Graphite version of Rally Bar Mini include 36% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.

Ensure Business Continuity with Select Service Plan
Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Logitech Rally Bar Mini Features

  • Built-in components: 4K PTZ camera with 4x HD digital zoom, 113 Degree HFOV with 163 Degree total room coverage, AI Viewfinder, 6 beamforming microphones, integrated speakers, cable management and retention system, table stand, Logitech CollabOS platform
  • Displays supported: 2 up to 1080p
  • Device management: Logitech Sync
  • All-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio

Warranty Information

This product has a limited warranty of 24 months.

What's in the box:

  • Logitech Rally Bar Mini 4K UHD AIO Video Conference Camera (Graphite)
  • Power Supply
  • AC Power Cord
  • HDMI Cable
  • USB Cable
  • Remote Control
  • Lens Caps
  • User Manual
  • Logitech 2 Year Limited Warranty (Extended 3 Year Warranty w/Registration)
