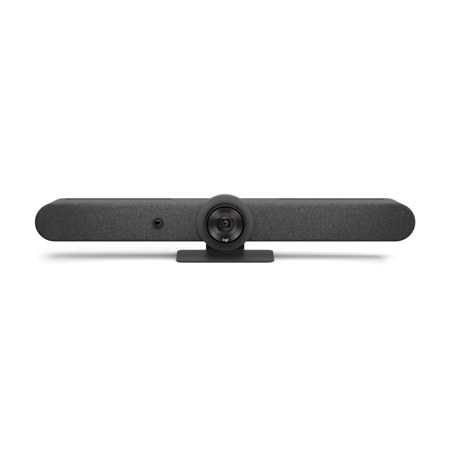

Logitech Rally Bar 4K Ultra HD All-in-One Video Conference Camera, No Radio, TAA Compliant, Graphite

SKU: LO960001669 MFR: 960-001669
Earn VIP Reward Points
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-10-08T09:13:45

Rated 5 out of 5

The best solution

The product is awesome , works so good that I can only say that is probaby the best solution out there. I`ve been tested other geat productrs however, ovearall this surpass Poly and other

FLORENTIN B.

Logitech Rally Bar Specifications

General

General

Jump to...
  • Color

    Graphite

  • Compatibility

    USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
    Appliance Mode: Room solution software license (not included)

  • Built-in Components

    6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform

  • Enclosure

    All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

  • Device Management

    Logitech Sync

  • Displays Supported

    2

  • Display Resolution

    Up to 1080p

  • Network Protocol Support

    IPv4, IPv6

  • Proxy Support

    IP based Proxy, FQDN based Proxy, Proxy using PAC file

  • Rally Bar No-Radio

    All radio frequency technology and connectivity such as Wi-Fi and Bluetooth has been removed from this model.

  • Country of Origin

    Mexico

  • Resolution

    4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

  • Pan

    Motorized +/-25 Degree

  • Tilt

    Motorized +/-15 Degree

  • Zoom

    15X HD zoom (5X optical and 3X digital)

  • Diagonal Field of View

    90 Degree

  • Horizontal Field of View

    82.1 Degree

  • Vertical Field of View

    52.2 Degree

  • Total Room Coverage

    132.1 Degree Horizontal x 82.2 Degree Vertical (field of view + pan and tilt)

Speakers

Jump to...
  • Drivers

    2x 2.7" (70mm)

  • Sensitivity

    92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1/2 meter

  • Rated Power

    8W

  • THD

    1kHz < 2% at 1W

  • Speaker Sampling Rate

    48 kHz

  • Impedance

    4 Ohms

Microphones

Jump to...
  • Frequency Response

    90Hz - 16kHz

  • Sensitivity

    >-36dBFS +/-1 dB @ 1Pa

  • Microphone data rate output

    48KHz

  • Pickup Range

    Up to 23' (7m)

  • Beamforming Elements

    6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams

  • Audio processing

    AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

  • Noise suppression

    AI based de-noising algorithm

  • Add-on Mics

    Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense Technologies

Jump to...
  • RightLight

    Renders natural skin tones for each participant

  • RightSight

    Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

  • RightSound

    Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

  • Grid View

    Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Interfaces

Jump to...
  • HDMI Out

    2x (up to 1080p)

  • HDMI In

    1x

  • USB

    3x Type A, 1x Type C

  • Network

    10/100/1G Ethernet

  • Wi-Fi

    802.11a/b/g/n/ac (Rally Bar No-Radio does not support Wi-Fi connectivity)

  • External Mic Input

    Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

Power & Cables

Jump to...
  • Power supply

    Auto-sensing

  • Operating Voltage/Power

    100-240V, 19V, 4.74A

  • Power Supply Dimensions

    5 x 2.01 x 1.18" (127 x 51 x 30mm)

  • DC Cable

    5' (1.5m)

  • AC Cable

    3.28' (1m)

  • HDMI 1.4 Cable

    6.5' (2m)

  • USB A to USB C 3.0 Cable

    7.2' (2.2m)

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Humidity

    10 to 95%

  • BTU/hr

    57 idle, 64 in meeting

Security

Jump to...
  • Full Disk Encryption

    AES-128

  • Data Encryption

    Symmetric Keys, PKI

  • Device Identity

    Protected by device attestation

  • Device Access

    Authenticated using API

  • Key Protection

    Arm TrustZone, RPMP

Accessories

Jump to...
  • Mounts

    Wall Mount for Video Bars, TV Mount for Video Bars

  • Audio

    Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

  • Connectivity

    Logitech Strong USB Cable 32.81' (10 m)
    65.6' (25m)
    147.64' (45m)

  • Touch Controller

    Logitech Tap and Tap IP

Certifications & Compatibility

Jump to...
  • Certifications & Compatibility

    For the latest information on certifications and compatibility
    Microsoft Teams Rooms on Android
    Microsoft Teams Rooms on Windows

Physical

Jump to...
  • Lens Depth

    1.13" (28.8mm)

  • Dimensions (H x W x D)

    6.46 x 35.88 x 5.14" (164 x 910 x 130.5cm)

  • Weight

    15.6 lbs (7.08kg)

  • UPC Code

    097855197849

About Logitech Rally Bar

FEATURED REVIEWS

The best solution

By FLORENTIN B.

The product is awesome , works so good that I can only say that is probaby the best solution out there. I`ve been tested other geat productrs however, ovearall this surpass Poly and other

Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

All-in-One Video Bar for Medium and Large Rooms
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.

Expand the Conversation
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

Ensure Everyone Is Seen and Heard
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

Manage Remotely with Sync
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

Certified for Business
Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.

• Microsoft
• Zoom
• Google Meet
• Tencent Meeting

A Choice You Will Feel Good About
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

Made With Recycled Plastic
The plastic parts in the Graphite version of Rally Bar include 40% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.

HETMA Certified
Rally Bar has been certified for meeting the quality and service standards set by the Higher Education Technology Managers Alliance for higher education environments.

Ensure Business Continuity with Select Service Plan
Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Unlock a Full Solution
Discover a full solution including Rally Bar and Logitech Tap IP, a touch controller with PoE connectivity.

Logitech Rally Bar Features

  • Built-in Components: 4K PTZ Camera with 15X HD zoom (5X optical and 3X Digital), 82 Degree HFOV with 132 Degree total room coverage, AI Viewfinder, 6 omnidirectional microphones with 23 ft pickup range, AI based de-noising, 2 integrated speakers, cable management and retention system, table stand, Logitech CollabOS platform
  • Displays Supported: 2 up to 1080p
  • Device Management: Logitech Sync
  • Features and support may vary by UC platform
  • Certified for Business: Compatible with Microsoft Teams, Zoom, Google Meet, and Tencent Meeting

What's in the box:

  • Logitech Rally Bar 4K Ultra HD All-in-One Video Conference Camera (Graphite)
  • Power Supply
  • AC Power Cord
  • HDMI Cable
  • USB Cable
  • Lens Caps
  • Logitech 2 Year Limited Warranty (Extended 3 Year Warranty w/Registration)
