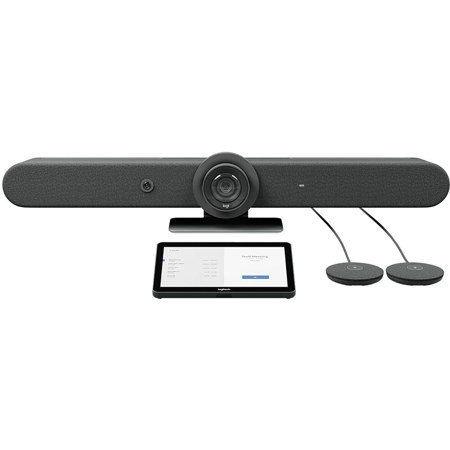

Logitech Rally Bar 4K Ultra HD All-in-One Video Conference Camera with 10.1" Tap Cat5e Touch Controller and 2x Mic Pods, No Radio, TAA Compliant

SKU: LO991000536 MFR: 991-000536
Earn VIP Reward Points
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Logitech Rally Bar+Tap Cat5e+Pod Specifications

Rally Bar: General

Rally Bar: General

Jump to...
  • Color

    Graphite

  • Compatibility

    USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
    Appliance Mode: Room solution software license (not included)

  • Built-in Components

    6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform

  • Enclosure

    All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

  • Device Management

    Logitech Sync

  • Displays Supported

    2

  • Display Resolution

    Up to 1080p

  • Network Protocol Support

    IPv4, IPv6

  • Proxy Support

    IP based Proxy, FQDN based Proxy, Proxy using PAC file

  • Rally Bar No-Radio

    All radio frequency technology and connectivity such as Wi-Fi and Bluetooth has been removed from this model.

  • Country of Origin

    Mexico

Rally Bar: Camera

Jump to...
  • Resolution

    4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

  • Pan

    Motorized +/-25 Degree

  • Tilt

    Motorized +/-15 Degree

  • Zoom

    15X HD zoom (5X optical and 3X digital)

  • Diagonal Field of View

    90 Degree

  • Horizontal Field of View

    82.1 Degree

  • Vertical Field of View

    52.2 Degree

  • Total Room Coverage

    132.1 Degree Horizontal x 82.2 Degree Vertical (field of view + pan and tilt)

Rally Bar: Speakers

Jump to...
  • Drivers

    2x 2.7" (70mm)

  • Sensitivity

    92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1/2 meter

  • Rated Power

    8W

  • THD

    1kHz < 2% at 1W

  • Speaker Sampling Rate

    48 kHz

  • Impedance

    4 Ohms

Rally Bar: Microphones

Jump to...
  • Frequency Response

    90Hz - 16kHz

  • Sensitivity

    >-36dBFS +/-1 dB @ 1Pa

  • Microphone data rate output

    48KHz

  • Pickup Range

    Up to 23' (7m)

  • Beamforming Elements

    6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams

  • Audio processing

    AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

  • Noise suppression

    AI based de-noising algorithm

  • Add-on Mics

    Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

Rally Bar: RightSense Tech

Jump to...
  • RightLight

    Renders natural skin tones for each participant

  • RightSight

    Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

  • RightSound

    Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

  • Grid View

    Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Rally Bar: Interfaces

Jump to...
  • HDMI Out

    2x (up to 1080p)

  • HDMI In

    1x

  • USB

    3x Type A, 1x Type C

  • Network

    10/100/1G Ethernet

  • Wi-Fi

    802.11a/b/g/n/ac (Rally Bar No-Radio does not support Wi-Fi connectivity)

  • External Mic Input

    Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

Rally Bar: Power & Cables

Jump to...
  • Power supply

    Auto-sensing

  • Operating Voltage/Power

    100-240V, 19V, 4.74A

  • Power Supply Dimensions

    5 x 2.01 x 1.18" (127 x 51 x 30mm)

  • DC Cable

    5' (1.5m)

  • AC Cable

    3.28' (1m)

  • HDMI 1.4 Cable

    6.5' (2m)

  • USB A to USB C 3.0 Cable

    7.2' (2.2m)

Rally Bar: Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Humidity

    10 to 95%

  • BTU/hr

    57 idle, 64 in meeting

Rally Bar: Security

Jump to...
  • Full Disk Encryption

    AES-128

  • Data Encryption

    Symmetric Keys, PKI

  • Device Identity

    Protected by device attestation

  • Device Access

    Authenticated using API

  • Key Protection

    Arm TrustZone, RPMP

Rally Bar: Accessories

Jump to...
  • Mounts

    Wall Mount for Video Bars, TV Mount for Video Bars

  • Audio

    Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

  • Connectivity

    Logitech Strong USB Cable 32.81' (10m)
    65.6' (25m)
    147.64' (45m)

  • Touch Controller

    Logitech Tap and Tap IP

Rally Bar: Certifications

Jump to...
  • Certifications & Compatibility

    For the latest information on certifications and compatibility
    Microsoft Teams Rooms on Android
    Microsoft Teams Rooms on Windows

Rally Bar: Physical

Jump to...
  • Lens Depth

    1.13" (28.8mm)

  • Dimensions (H x W x D)

    6.46 x 35.88 x 5.14" (164 x 910 x 130.5cm)

  • Weight

    15.6 lbs (7.08kg)

Tap Touch Controller

Jump to...
  • Color

    Graphite

  • Compatibility

    Rally Mic Pod, White: Plenum Rated, Eca/IEC 60332-1-2 Compliant
    Rally Mic Pod, Graphite: N/A

  • Room Solutions Compatibility

    Google Meet on ChromeOS
    Google Meet on Android
    Microsoft Teams Rooms on Windows
    Zoom Rooms Appliances
    Zoom Rooms for PC

  • Screen size

    10.1" (25.65cm) diagonal touch display
    1280 x 800 pixels

  • Screen type

    Capacitive Touch with Oleophobic Coating

  • Power

    Included Power Supply inline via Cat5e

  • Connectivity

    Cat5e ethernet kit (9.7' (2.97m)
    22' (7m) Cat5e cables)

  • Content-Sharing

    HDMI ingest

  • Motion sensor

    Yes

  • Built-in cable

    Yes (retention and strain relief)

  • Headphone jack

    Yes

  • Compatible Accessories

    Riser, Table, Wall Mounts

Rally Mic Pod: Microphones

Jump to...
  • Frequency Response

    90Hz - 16kHz

  • Sensitivity

    >-27 dB +/-1dB @ 1Pa

  • Microphone data rate output

    48 kHz

  • Pickup Range

    15' (4.5m)

  • Beamforming Elements

    Four omnidirectional microphones forming eight acoustic beams

  • Audio processing

    AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

  • Noise suppression

    AI filter

Rally Mic Pod: Interfaces

Jump to...
  • Output

    9.6' (2.95m) 12-pin captive cable

  • Input

    12-pin interface to daisy-chain Mic Pods or connect to Rally Mic Pod Hub

Rally Mic Pod: Device Management

Jump to...
  • Platform

    Logitech Sync

Rally Mic Pod: Accessories

Jump to...
  • Hub

    Rally Mic Pod Hub

  • Mounts

    Rally Mic Pod Mount

  • Cable

    Rally Mic Pod Extension Cable

  • UPC Code

    097855198099

About Logitech Rally Bar+Tap Cat5e+Pod

Secure and compliant video conferencing to optimize communication experiences in medium to large rooms.

Fully secure.
Designed for environments where radio frequency equipment is restricted, the Logitech Rally Bar No-Radio Kit maintains all the features of the standard Rally Bar Room Kit but with the Rally Bar No-Radio variant. This specialized kit offers the same high-quality video and advanced audio capabilities, ensuring a superior collaboration experience without the inclusion of wireless radio components.

Value added features and benefits for government agencies

Security and compliance.
Compliant with TAA and NDAA regulations, ensuring national security and trade interests are met.

Enhanced experiences.
Create more inclusive meeting experiences by providing a clear view of who is speaking and who is in the room.

Seamless integration.
Components work seamlessly together and with leading UC platforms with option to switch platforms if needs evolve.

Streamlined IT
Easy to deploy at scale, simple to use and manage, connects hybrid workplaces for everyone.

Simplified procurement.
Bundled solution reduces procurement complexities and streamlines purchasing saving time and costs.

Sustainability.
Products include certified Post Consumer Recycled (PCR) plastics and FSCTM certified packaging where available.

Flexible and scalable.
Accommodate various room sizes with hardware expansion capabilities and support large deployments with management software.


- Rally Bar -

All-in-one video bar for medium to large rooms that is No-Radio compliant. USB mode certified only.

Logitech Rally Bar is the premier video bar for medium to large meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

All-in-One Video Bar for Medium and Large Rooms
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.

Expand the Conversation
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

Ensure Everyone Is Seen and Heard
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

Manage Remotely with Sync
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

Certified for Business
Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.

• Microsoft
• Zoom
• Google Meet
• Tencent Meeting

A Choice You Will Feel Good About
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

Made With Recycled Plastic
The plastic parts in the Graphite version of Rally Bar include 40% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.

HETMA Certified
Rally Bar has been certified for meeting the quality and service standards set by the Higher Education Technology Managers Alliance for higher education environments.

Ensure Business Continuity with Select Service Plan
Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.


- Tap Touch Controller -

Make video meetings simple to join with a USB-connected touch controller with an included Cat5e Kit for flexible cabling.

Deploy Room Solutions with Ease
Transform your space into a Microsoft Teams Room, Zoom Room, or Google Meet room with Logitech Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across all rooms.

• Microsoft
• Zoom
• Google Meet

Clean and Convenient Setup - Just the Right Presence
With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.

Clean and Convenient Setup - Simple and Secure Cabling
Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.

Clean and Convenient Setup - Multiple Mounting Options
Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate 180 Degree for visibility and convenience, or save table space in small rooms with the Wall Mount.

Clean Installation
Use the included or compatible category cabling to position the controller flexibly, up to 131 ft (40 m) away. This allows Tap to be conveniently placed near participants for easy operation, while installing the host computer in a cabinet, beneath a table, or behind a display.

Share Effortlessly
Bring instant content sharing via wireless or HDMI connections to video meetings rooms with Tap.

Simple To Manage
With Logitech Sync, you can monitor and manage Tap along with your other meeting room devices from one single platform.

Enhanced Performance with Logitech Services
Remove barriers to effective collaboration with global support, powerful software, and fast product replacements.

Expert Help Desk
Keep downtime to a minimum with fast response times. Our experts have deep expertise in video collaboration and partner ecosystems for quick issue resolution.

Product Coverage
Protect your investment with extended warranty options, complete room coverage, accelerated RMA, and onsite spares.

Advanced Software
Utilize our advanced device and space management tools, such as Remote UI Access, Booking, and Insights, through Logitech Sync.


- Rally Mic Pod -

Modular microphones with RightSound for Rally, Rally Bar, and Rally Bar Mini

Good Looks Meet Great Sound
Boasting a sleek, low-profile design and premium materials, these mic pods render clear, natural, conversational sound. Individual pods contain multiple beamforming elements to capture speech, not distractions. In larger rooms, deploy additional mic pods to extend the beamforming mic matrix throughout the room.

Hear Every Voice Clearly
While ordinary microphones pick up any sound, these mic pods hear voices. With RightSound technologies to auto-level voices, suppress noise, and cancel echo, conversations feel remarkably lively and natural.

Simplified Cabling
Mic pods can be daisy-chained for full coverage in rooms with long tables. For U-shaped tables or single-wire cabling through grommets, the Rally Mic Pod Hub accessory provides three connections for optimal positioning and to bring mute control within easy reach.

Logitech Rally Bar+Tap Cat5e+Pod Features

  • Rally Bar Conference Camera
  • Built-in Components: 4K PTZ Camera with 15X HD zoom (5X optical and 3X Digital), 82 Degree HFOV with 132 Degree total room coverage, AI Viewfinder, 6 omnidirectional microphones with 23 ft pickup range, AI based de-noising, 2 integrated speakers, cable management and retention system, table stand, Logitech CollabOS platform
  • Displays Supported: 2 up to 1080p
  • Device Management: Logitech Sync
  • Features and support may vary by UC platform
  • Certified for Business: Compatible with Microsoft Teams, Zoom, Google Meet, and Tencent Meeting
  • Tap Touch Controller
  • Deliver one-touch join, calendar integration, content-sharing, and a consistent user experience across all rooms
  • Spacious 10.1" display, low profile, and motion sensor for always-on readiness
  • Multiple mounting options -Table or riser mounts fit standard grommets and rotate 180 Degree for visibility and convenience, or save table space in small rooms with the wall mount
  • Bring instant content sharing via HDMI connections to video meetings rooms with Tap
  • Rally Mic Pod Conferencing Microphone
  • Includes 2x Rally Mic Pods (15' pickup range each)
  • Expands audio coverage with modular, beamforming microphones with RightSound technology
  • Compact form factor and clever design details, ability to anchor mic pods to both tables and ceilings, hides cabling for a clean look

What's in the box:

  • 2x Mic Pod Conferencing Microphone
  • Power Supply
  • AC Power Cord
  • HDMI Cable
  • USB Cable
  • Lens Caps
  • User Manual
  • (Remote Control Not Included)
  • Logitech 2 Year Limited Warranty (Extended 3 Year Warranty w/Registration)
