LG EW5F-A Specifications

Panel
  • Screen Size

    55" (139.7cm)

  • Panel Technology

    OLED

  • Aspect Ratio

    16:09

  • Native Resolution

    1920 x 1080 (FHD)

  • Brightness (Typ.)

    400/150 cd/sq. m (Average Picture Level 25%/100%, without Glass)

  • Transparency (Typ.)

    38% (Panel)

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    1ms (G to G)

  • Surface Treatment (Haze)

    Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Reflectance Typ. 14%)

  • Life Time (Typ.)

    30000 Hours

  • Operation Hours

    18 Hours / 7 days (Moving Video Only)

  • Orientation

    Landscape & Portrait

Connectivity

Jump to...
  • Input

    HDMI, DP, USB (2)

  • Output

    DP, Audio

  • External Control

    RS232C In/out, RJ45 (LAN) In/out, IR I

Special Features

Jump to...
  • Features

    Internal Memory (64GB), Temperature Sensor, Embedded CMS, Fail Over, Content Sync., OSD Rotation, Lock Mode, Content Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron Connected), DPM, PM Mode, Wake on LAN, SI Server Setting, webRTC

Enviornmental

Jump to...
  • Operation Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operation Humidity

    10%to 80%

  • Power Supply

    100-240V-, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption

    Typ: 309 W x 8 color bar
    Max: 318 W x 8 color bar

Standard Certifications

Jump to...
  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes / No

Media Player

Jump to...
  • OPS Type Compatible

    No

  • External Media Player Attachable

    Yes

Software

Jump to...
  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control / Control+

Physical

Jump to...
  • Bezel Color

    Mirror Silver

  • Bezel Width

    0.31 / 0.31 / 0.31 / 4.7" (7.9 / 7.9 / 7.9 / 121.7mm) (T/L/R/B)

  • Dimension (W x H x D)

    Head: 48.24 x 31.89 x 0.25" (1225.53 x 810.1 x 6.6mm)
    Signage Box: 30.81 x 9.38 x 1.36" (782.8 x 238.4 x 34.7mm)

  • Weight

    Head: (13.9kg)
    Signage Box: (3.4kg)

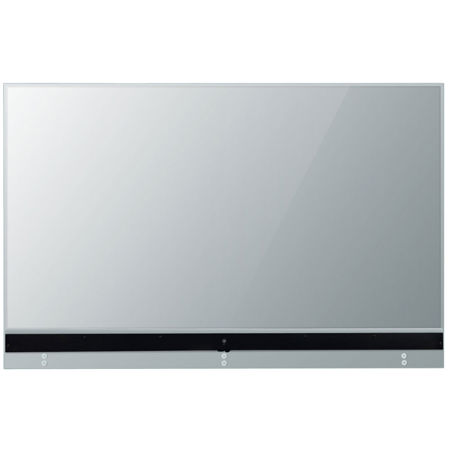

About LG EW5F-A

A New Dimension to Digital Signage
Transform your business and experience the new level of creativity with LG Transparent OLED Signage.

A New Level of See-Through View
LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.

Bring Color To Life

Exceptional Picture Quality
LG's OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the digital display becomes transparent. Transparent OLED signage brings content to life by blending digital content with real objects when positioned together.

Spacial Harmony

High Transparency
LG Transparent OLED signage seamlessly and naturally blends into it surroundings thanks to its high transparency. These see-through digital displays turn static signage areas into open and interactive spaces.

Customizable and Expandable Design
LG Transparent OLED signage is designed as a semi-assembled display, allowing you to install it in various ways to fit into existing structures and spaces. With endless possibilities, Transparent OLED signage can complement any venue.

See Through

Effective Information Delivery
While clearly showing objects behind the screen, LG Transparent OLED signage seamlessly overlays information so that viewers can easily see both the object and the relevant information without having to change their view.

Visual Feast

AR Effects in the Dark
Using LG transparent OLED signage, you can surprise viewers with Augmented Reality (AR) effects in the dark. The content displayed seems life-like, adding another "wow" factor to the viewing experience.

LG EW5F-A Features

  • Brightness (Typ.): 400cd/sq. m
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
  • IEC 61373 Standard Certified

Key Features

  • Brightness (Typ.): 400cd/sq. m
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
  • IEC 61373 Standard Certified

What's in the box:

  • EW5F-A 55 " 16:9 Transparent OLED Commercial Digital Signage Display (Mirror Silver)
  • Remote Controller
  • Power Cord
  • QSG
  • IR Receiver
  • Regulation Book
  • Phone to RS232C Gender
  • RS232 Cable (4p-4p)
  • FFC Cables (Connection Between Panel and Signage Box)
  • DP Cable
  • LAN Cable
  • LC (VLC Cable)
  • Tapes/Screws
  • Shield Cover Assy
  • Rubber Dampers
  • LG 3 Year Limited Warranty
