This item is no longer available.
The UH5E 75" UHD IPS Digital Signage Display has an Ultra HD resolution of 3840x2160, offering four times higher definition than FHD.
The embedded CMS (Content Management System) in the UH5E series allows you to create, edit, and schedule content using internal or external sources without the need for a separate PC. It features an intuitive GUI and a menu structure based on usage scenarios for easy content management.
The Multi Screen Mode in the UH5E series includes PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features. PBP allows multi screen in a single display with up to 4 input sources, while PIP supports playing both main screen and sub screen simultaneously with various layouts.
Yes, the UH5E series has been certified for its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control for a smarter video conference. It enables the integrated control of the display and Cisco system through the HDMI cable connection.
Yes, the UH5E series supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. This feature reduces the overall cost of ownership as there's no need to purchase additional software or media players for creating value-added solutions.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
75" (190.5cm)
IPS
3840 x 2160 (UHD)
1,200:1
6ms (G to G)
500 nits
178 x 178 degree
Landscape & Portrait
50,000 Hrs
24Hrs
Haze 3%
HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
DP, Audio (Off/Fixed/Variable), External Speaker (98" Only)
RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
Yes Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation,
PIP/PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron Connected1, Cisco Compatibility 2, Beacon, HDMI-CEC 3, SI Server Setting, webRTC
32 Degree F to 104 Degree F / 0 Degree C to 40 Degree C
10% to 80%
100-240V-, 50/60Hz
Built-In Power
126 W
Typ./Max.: 180W / 260W
Built-in 20W (10W x2)
IEC 60950-1/EN 60950-1/UL 60950-1
FCC Class "A"/CE/KC
Yes
Yes
SuperSign CMS
SuperSign Control/Control+
Black
0.58" (14.9mm) (Even, Off-Bezel)
600 x 400 mm
Yes
Without Handle and Logo: 66.2 x 37.8 x 2.3" (1682.4 x 960.3 x 57.9mm)
91.5 lb (41.5kg)

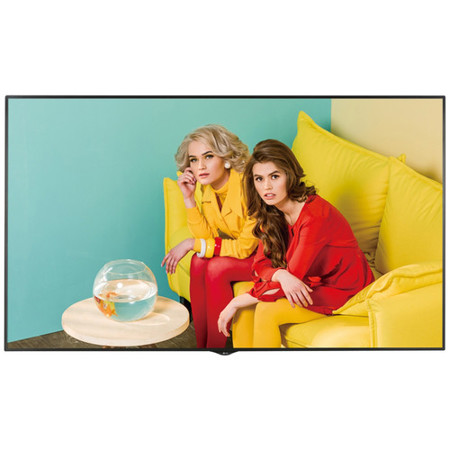

While delivering vibrant colors and powerful performance, the UH5E 75" UHD IPS Digital Signage Display with Built-In-Speakers, Landscape & Portrait, 3840x2160, Black, brings your content to life with exceptional picture quality and cutting-edge technology. This digital signage display is designed to captivate passersby with its bright, colorful, and high-definition visuals, making it an ideal choice for public spaces and businesses.
The UH5E series boasts a large display that ensures your content gets the undivided attention it deserves. Equipped with an LG IPS panel, it offers a wide viewing angle, delivering clear, distortion-free content regardless of the viewer's position. Each pixel in the IPS panel reproduces true-to-life colors, enhancing the overall viewing experience.
With Ultra HD resolution, the UH5E series allows users to view intricate details even when zooming in on the display, offering four times higher definition than FHD. It ensures stable UHD video playback with HEVC (High Efficiency Video Coding), enhancing the overall visual quality.
The UH5E series features a powerful webOS Smart Signage Platform that simplifies content management. The embedded CMS (Content Management System) allows you to create, edit, and schedule content using internal or external sources without the need for a separate PC. The intuitive GUI and a menu structure based on usage scenarios make content management a breeze.
The embedded Group Manager allows a master display to manage other displays connected on the same network, enabling you to group and control multiple displays in your place of business and distribute playlists to them all at once. This digital signage display also supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in, reducing the overall cost of ownership.
The UH5E series also offers a Multi Screen Mode with PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features, providing great flexibility to allocate space for each content source. It also offers real-time monitoring & control through the Control Manager, the embedded web monitoring solution, allowing you to control and monitor the status of multiple displays in different locations in real-time.
With its slim and stylish design, the UH5E series is space-efficient and easy to install. The detachable logo allows for installation in the desired orientation in landscape or portrait mode, and the built-in speakers give your advertisements greater impact. With its high compatibility with AV Control System and Video Conference System, the UH5E series is designed to boost business management efficiency and provide an optimum visual meeting experience.
