Questions & Answers

FAQ

What is the resolution of the 75UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Display?

The resolution of the display is 4K UHD, which is four times more detailed than standard FHD displays.

What is the LG's webOS smart signage platform?

LG's webOS smart signage platform is an intuitive system that allows for smooth content playback without a separate media player. It also provides access to an ecosystem of third-party applications.

What is the purpose of the Control Manager feature?

The Control Manager is a real-time monitoring solution that allows you to control and monitor the status of multiple 75UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Displays in different locations.

What are PBP and PIP features?

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) are features that allow for multiple screens in a single display with up to 4 input sources.

Can the 75UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Display function as a wireless access point?

Yes, the display can function as a wireless access point for mobile devices.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

LG 75UH5F-H Specifications

Panel
  • Screen Size

    75" (190.5cm)

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    120Hz

  • Brightness (Typ.)

    500nits

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 Degree x 178 Degree

  • Color Depth

    10 bit, 1.07 Billion colors

  • Response Time (G to G)

    6 ms

  • Surface Treatment (Haze)

    28%

  • Lifetime

    50,000 Hrs

  • Operation Hours (Hours/Day)

    24/7

  • Portrait/Landscape

    Yes/Yes

  • Speaker

    Yes

Connectivity

Jump to...
  • HDMI In

    Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4

  • DP In

    Yes (1), HDCP2.2/1.3

  • DVI-D In

    Yes (1), HDCP1.4

  • Audio In

    Yes

  • RS232C In

    Yes (1), 4pin 3.5mm Jack

  • RJ45 (LAN) In

    Yes

  • IR In

    Yes

  • USB in

    USB2.0 Type A(2)

  • DP Out

    Yes (1), Input: HDMI1/2/3/DVI/DP

  • Audio Out

    Yes

  • RS232C OUT

    Yes (1), 4pin 3.5mm Jack

Key Features

Jump to...
  • Internal Memory

    8GB

  • Built-in Wi-Fi

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness sensor

    Yes

  • Local Key Operation

    Yes

  • webOS ver.

    webOS 4.0

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS-232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes (4)

  • Screen Share

    Yes

  • Video Tag

    Yes (4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Crestron Inside

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

  • Power Supply

    100-240 Vac, 50/60 Hz

  • Power Type

    Built-In Power

  • Typ. Power

    180W

  • Max. Power

    260W

  • BTU (British Thermal Unit)

    614.25 BTU/Hr (Typ.), 887.25 BTU/Hr (Max.)

  • Smart Energy Saving

    126W

  • DPM

    0.5W

  • Power Off

    0.5W

LG Software & Services

Jump to...
  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes/Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • LG Connected Care

    Yes

  • FCC (Regulatory)

    Class A

  • CE (Regulatory)

    Yes

  • ErP

    Yes

  • Energy Star

    Yes

Mechanical

Jump to...
  • Bezel Color

    Black

  • Bezel Width

    Even bezel: 14.9mm

  • Handle

    Yes

  • VESA Standard Mount Interface

    600 x 400

  • Operation Temperature

    32 Degree F to 104 Degree F/0 Degree C to 40 Degree C

  • Operation Humidity

    10% to 80%

  • OPS type compatible

    Yes

Physical

Jump to...
  • Dimensions (W x H x D)

    Monitor: 66.2 x 37.8 x 2.3" (1682.4 x 960.3 x 57.9mm) (without Handle and LG Logo)

  • Weight

    Head: 91.5 lbs (41.5kg)

  • UPC Code

    719192642669

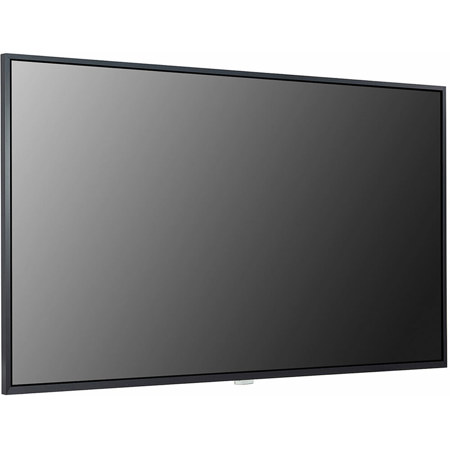

About LG 75UH5F-H

Because of its impressive 4K UHD resolution, the 75UH5F-H 75" Class Digital Signage Commercial IPS LED Display delivers stunning, vivid, and realistic visuals that are four times more detailed than standard FHD displays. This state-of-the-art commercial display, manufactured by the reputable LG brand, is designed to enhance visibility and text readability, even under brightly lit conditions, thanks to its non-glare coating and increased level of haze.

Equipped with an IPS panel, this sleek and high-tech display offers a wide viewing angle, providing clear content with virtually no distortion. This makes it an ideal choice for businesses, public spaces, and other commercial settings that require high-quality image and video displays.

The 75UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Display is more than just a display. It's a smart signage platform powered by LG's webOS. The built-in Quad Core System on Chip (SoC) executes multiple tasks simultaneously, providing smooth content playback without the need for an additional media player. The intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications further enhance user convenience.

This display also supports connections with various external sensors such as GPIO, NFC/RFID, and temperature sensors via USB plug-in, reducing overall maintenance costs. It's compatible with professional AV control systems like Crestron Connected, ensuring seamless integration and automated control. It also supports smart video conferencing with certified compatibility with Cisco System.

Manage your display with ease using the Control Manager, a real-time monitoring solution embedded in the web. This feature allows you to control and monitor the status of multiple UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Displays in different locations. Plus, with the optional LG Connected Care cloud service, you can remotely manage the status of displays for fault diagnosis and remote-control services.

The display also offers user convenience features like PBP (Picture-By-Picture) and PIP (Picture-In-Picture), allowing multiple screens in a single display with up to 4 input sources. It can also function as a wireless access point for mobile devices, further enhancing its versatility and functionality.

LG 75UH5F-H Features

  • UHD (3840x2160)
  • Brightness (Typ.)
  • 500nits Surface Treatment (Haze) 28%
  • Even Bezel 14.9mm
  • Built-in WIFI
  • Built-in Speaker and Detachable Logo

Key Features

  • Non-glare coating and increased haze level for enhanced visibility and text readability
  • LG's webOS smart signage platform with intuitive GUI and access to third-party applications
  • Real-time monitoring & control with optional LG Connected Care cloud service for remote management

What's in the box:

  • LG 75UH5F-H 75" Class 4K UHD Digital Signage Commercial IPS LED Display
  • Remote Control
  • Power Cord
  • IR/Light Receiver
  • DP Cable (1.8m)
  • Regulation Book
  • Phone to RS232C Adapter
  • Quick Start Guide
  • LG 3 Year Limited Warranty
