24% Off

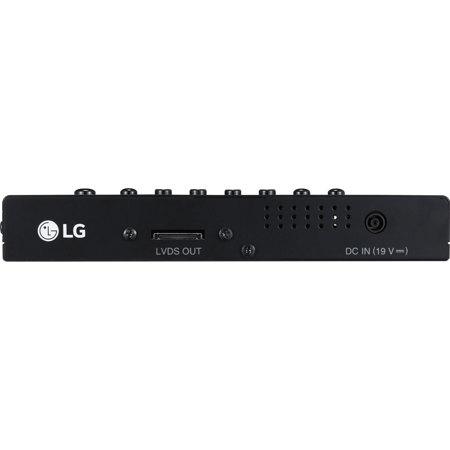

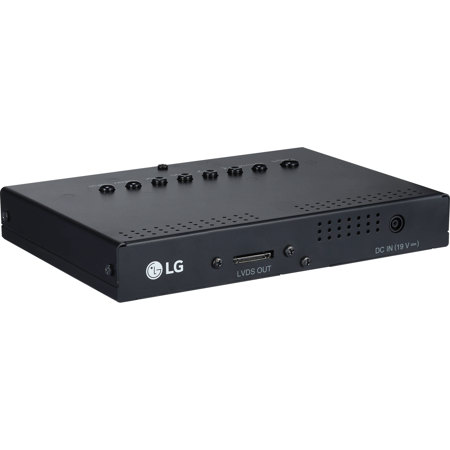

LG TSP510-M AD Board for 49WFB and 55WFB Transparent FHD LCD Signage Display

SKU: LOCTSP510M MFR: TSP510-M
$189.00
$249.00
Save: $60 (24%)
Earn VIP Reward Points

Key Features

  • Optimize your 49/55WFB display with this LG TSP510-M AD Board for seamless integration.
  • Enjoy versatile connectivity with HDMI, RS232C, RJ45, and USB inputs on this reliable AD board.
  • Use SuperSign-w lite for easy content editing, scheduling, and distribution on your display.
  • This AD board supports FHD resolution (1920x1080) for crisp, clear digital signage visuals.
  • Manage display settings easily with features like tile mode and brightness/contrast control.
  • Ensure compatibility and performance with this LG AD board designed for transparent displays.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

LG TSP510-M Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    49WFB-N Transparent FHD LCD Signage Display

Video (PC)

Jump to...
  • Max Input Resolution (FHD)

    1920 x 1080 at 60Hz (HDMI)

  • Recommended Resolution (FHD)

    1920 x 1080 at 60Hz (HDMI)

  • H-Scanning Frequency

    28.1 - 83kHz (HDMI)

  • V-Scanning Frequency

    60Hz (HDMI)

  • Pixel Frequency

    148.5MHz(HDMI)

  • Sync Compatibility

    Digital

  • Video Input

    HDMI

  • Picture mode

    Vivid / Standard / APS / Cinema / Sport / Game /Calibration/ Expert1 / Expert2

  • Color temperature

    W50 - 0 - C50

Connectivity - Input

Jump to...
  • Digital

    HDMI(1) with HDCP for all input

  • External Control

    RS232C(1), RJ45(1)

  • USB

    USB(1)

  • HDTV Formats

    HDMI : 720p, 1080p

Connectivity - Output

Jump to...
  • Digital

    Yes (LVDS 40Pin), Compatible with 49/55WFB

  • Analog

    No

  • Audio

    Line-out Audio

  • External Control

    RS232C(1)

Special Function

Jump to...
  • Temperature Sensor

    Yes

  • Auto Brightness sensor

    No

  • Cooling FAN

    No

  • Tile Mode

    Yes (Max. 15x15)

  • Natural Mode at Tile Mode

    Yes

  • Source Selection

    HDMI / USB

  • Brightness/Contrast/Backlight

    Brightness(Yes), Contrast(Yes) / Backlight(NO)

  • Auto Config/Phase

    No

  • Time

    Clock, On/off Time, Auto off, Automatic standby

  • Auto Power/Source Memory

    Yes

  • Key Lock

    Yes

  • DPM Select

    Yes

  • Power Indicator On/Off

    No

  • Logo Light On/Off

    No

  • File Play with USB

    Yes

  • PIP/PBP

    No

Environment Conditions

Jump to...
  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operation Humidity

    10 % to 80 %

  • Power Supply

    100-240V, 50/60Hz

  • Power Type

    Adaptor

  • Power Switch

    No

Power Consumption

Jump to...
  • Typical

    15W

  • DPM

    0.5W

  • Power off

    0.5W

Standard (Certification)

Jump to...
  • Safety

    CB, UL

  • EMC

    FCC Class "A", CE, KCC

Software Compatibility

Jump to...
  • SuperSign-w lite

    Yes (Editing, Scheduling, Distribution & Play, Control)

General

Jump to...
  • Handle

    No

  • VESA Standard Mount Interface

    No

  • Dimensions (WxHxD)

    19.8 x 3.2 x 14.5cm (7.80 x 1.26 x 5.71")

  • Weight

    0.65kg (1.43 lbs) (Set)

  • UPC Code

    719192620063

About LG TSP510-M

How can you enhance your visual presentations The LG TSP510-M AD Board, specifically engineered for the 49WFB-N Transparent Full High Definition (FHD) LCD Signage Display, is your answer. This advanced accessory is a crucial component for your LG 49WFB-N and 55WFB Transparent FHD LCD Signage Displays, ensuring optimal performance and crystal-clear visuals.

The TSP510-M AD Board is a testament to LG's commitment to technological innovation, designed to seamlessly integrate with your existing display system. It plays a pivotal role in enhancing the overall display quality, delivering sharp, vibrant images and videos that capture and hold your audience's attention.

Whether you're running a retail store, a corporate office, or a public space, the LG TSP510-M AD Board is an essential tool for your 49WFB-N and 55WFB Transparent FHD LCD Signage Displays. It's not just an accessory; it's a game-changer for your visual communication needs.

Remember, when it comes to high-quality, professional-grade display solutions, trust in the LG TSP510-M AD Board for your 49WFB and 55WFB Transparent FHD LCD Signage Displays.

LG TSP510-M Features

  • Optimized for LG 49WFB-N Transparent FHD LCD Signage Displays
  • Ensures high-resolution display quality with vibrant visuals
  • Key component for enhancing display performance of LG signage systems
  • Seamless integration with LG 55WFB Transparent FHD LCD Signage Displays
  • Engineered by LG for reliability and cutting-edge display technology
  • Ideal for retail, corporate, and public space digital signage solutions

Key Features

  • Optimize your 49/55WFB display with this LG TSP510-M AD Board for seamless integration.
  • Enjoy versatile connectivity with HDMI, RS232C, RJ45, and USB inputs on this reliable AD board.
  • Use SuperSign-w lite for easy content editing, scheduling, and distribution on your display.
  • This AD board supports FHD resolution (1920x1080) for crisp, clear digital signage visuals.
  • Manage display settings easily with features like tile mode and brightness/contrast control.
  • Ensure compatibility and performance with this LG AD board designed for transparent displays.

What's in the box:

  • LG TSP510-M AD Board
  • Remote Controller
  • Power Cable
  • HDMI Cable
  • Manual
  • ESG
  • IR Dongle
  • Adapter
  • LVDS Cable (FHD/40P 1500mm Molding Cable)
  • LG Warranty
