Litepanels Brick One Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    LED Light Panel

  • Photometrics

    36° at 5600K:
    221 fc / 2385 Lux at 3.3' / 1 m
    99 fc / 1060 Lux at 4.92' / 1.5 m
    24 fc / 255 Lux at 9.84' / 3 m
    11 fc / 115 Lux at 15.09' / 4.6 m
    36° at 3200K:
    181 fc / 1958 Lux at 3.3' / 1 m
    81 fc / 870 Lux at 4.92' / 1.5 m
    19 fc / 200 Lux at 9.84' / 3 m
    9 fc / 100 Lux at 15.09' / 4.6 m

  • Color Accuracy Standard

    CRI 95 at 5600K
    CRI 98 at 3200K

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    3200 to 5600K

  • Display

    No

  • Beam Angle

    36°

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    Built-In Dimmer - 0 to 100%

  • Water Resistance/IP Rating

    IP65

Battery

Jump to...
  • Battery Connection

    D-Tap Power

  • Battery

    1x D-Tap Rechargeable (Not Included)

  • Power Source

    AC to DC Adapter

  • Power Consumption

    19W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    12 to 17 VDC

Mounting

Jump to...
  • Fixture Mount

    2x 1/4"-20 Female Thread

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Dimensions

    7.9 x 2.8 x 2.4" / 20 x 7.1 x 6.1 cm

  • Weight

    1.5 lb / 680 g

  • UPC Code

    5060312089723

About Litepanels Brick One

Litepanels Brick One.

The Litepanels Brick builds on the legacy of the original MiniPlus which revolutionized the lighting industry.

Litepanels Brick One.

Waterproof, Sturdy, Ergonomic.

Now more robust, Bi-Color and IP-65 rated, the Brick is a perfect on-camera solution for ENG camera operators on the go or who need full spectrum lighting during wet conditions.

Waterproof, Sturdy, Ergonomic.

Brilliant Luminescence.

Following the Litepanels familiar rectangular form factor, the Brick is designed with premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the Brick with superior color reproduction and a light output that is up to four times brighter than the original MiniPlus. This higher intensity results in a longer throw and illuminates a wider area, allowing the Brick to compete with strong exterior light sources or illuminate a larger area effectively.

Brilliant Luminescence.

Everything You Need To Light The Scene.

The Brick is available in a One light kit with accessories and protective waterproof case for safe transport. Accessories for the Brick are also available separately.

Everything You Need To Light The Scene.

Just when you thought on-camera lighting couldn't get any better, the Brick One Bi-Color On-Camera Light Kit steps in to revolutionize the industry. This compact yet powerful variable color LED light is built to withstand even the harshest elements, making it an ideal solution for ENG cameramen on the move or those working in wet conditions.

Building on the legacy of the groundbreaking MiniPlus, the Brick One Bi-Color On-Camera Light Kit is now more robust, Bi-Color, and IP-65 rated. It retains the familiar rectangular form factor of Litepanels, but with a host of upgraded features.

The Brick One is designed with select premium quality, high CRI, surface mount LEDs, and is paired with custom-designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the Brick with superior color reproduction, ensuring your footage always looks its best.

But it's not just about color accuracy. The Brick One Bi-Color On-Camera Light Kit offers a light output that is up to four times brighter than the original MiniPlus. This increased intensity results in a longer throw and a wider illumination area, allowing the Brick to compete with strong exterior light sources or effectively light up larger areas.

The Brick One Bi-Color On-Camera Light Kit is available with a range of accessories and a protective waterproof case for safe transport. You can also purchase the Brick and its accessories separately, giving you the flexibility to customize your lighting setup to suit your specific needs.

In short, the Brick One Bi-Color On-Camera Light Kit is more than just a light; it's a game-changer in the world of on-camera lighting.

Litepanels Brick One Features

  • Output is up to 4X brighter than the original MiniPlus
  • High performance LEDs with custom paired optics
  • Higher intensity = Longer throw = Wider effective beam spread
  • Superior color reproduction
  • High color rendition (CRI)
  • Adjustable (daylight to tungsten), accurate color temperatures
  • Efficient thermal management
  • Completely silent passive cooling
  • Ultra-smooth dimming from 100% to 0
  • No noticeable color shift throughout the entire range
  • Flicker-free at any frame rate or shutter angle
  • Dedicated on/off power switch
  • 1/4-20 mounting posts
  • IP 65 rated
  • Dust Tight
  • Withstands water projected from any direction
  • Integrated P-Tap cable
  • AC or DC powering option

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve perfect lighting with this Bi-Color LED light panel, adjustable from 3200K to 5600K!
  • Enjoy accurate colors and even light output with this compact, durable Litepanels LED panel.
  • This light panel's built-in dimmer smoothly adjusts brightness from 0 to 100% for ideal shots.
  • Use this LED light panel on pro video rigs; it's compatible with various mounting options.
  • Compact & lightweight at 1.5lbs, this LED panel is perfect for on-camera & on-the-go shoots.
  • Get soft, diffused lighting with the included diffusion gel & honeycomb grid for your LED panel.

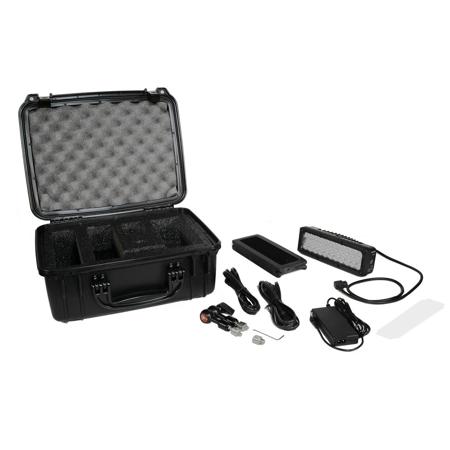

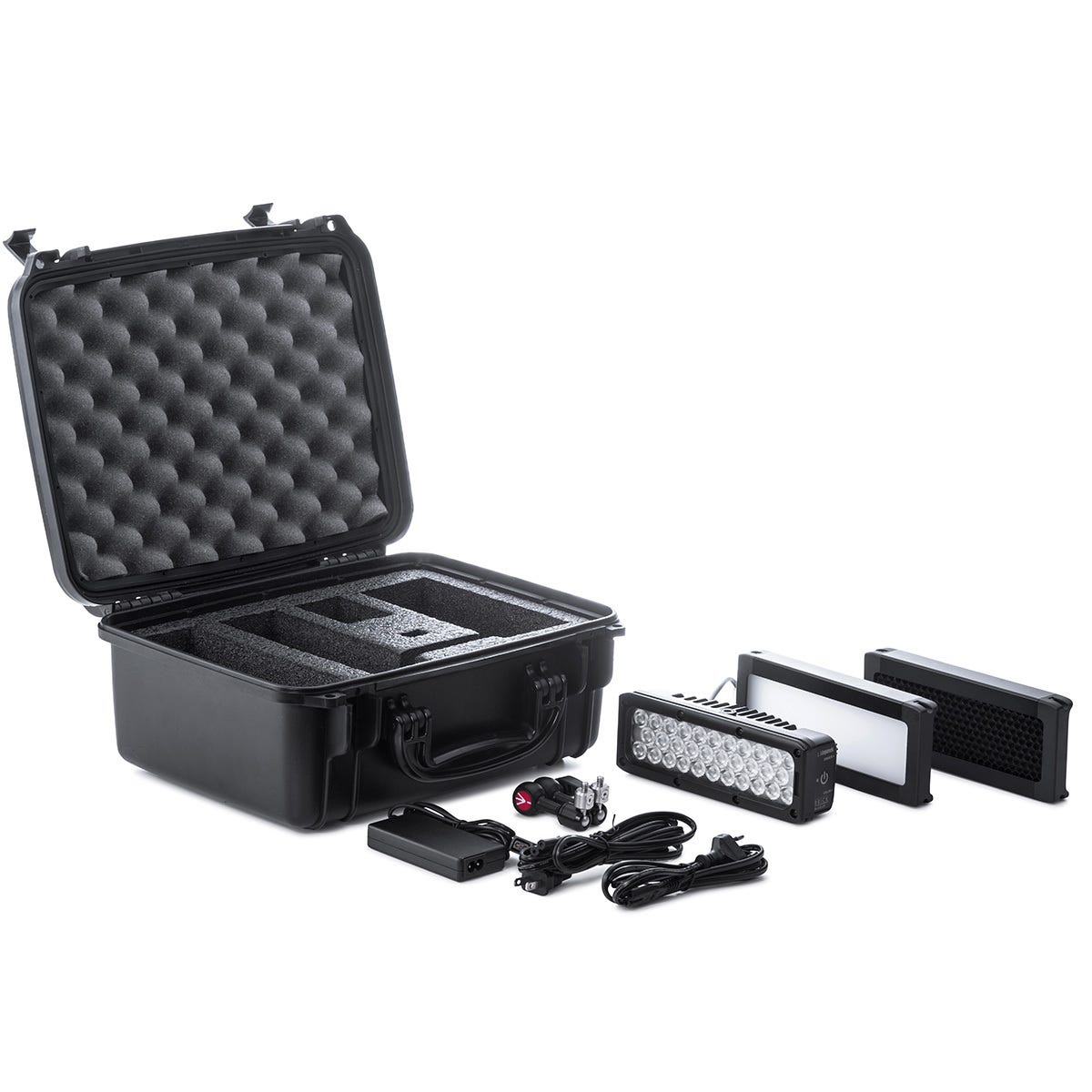

What's in the box:

  • Brick Bi-Color
  • Power Supply Adapter

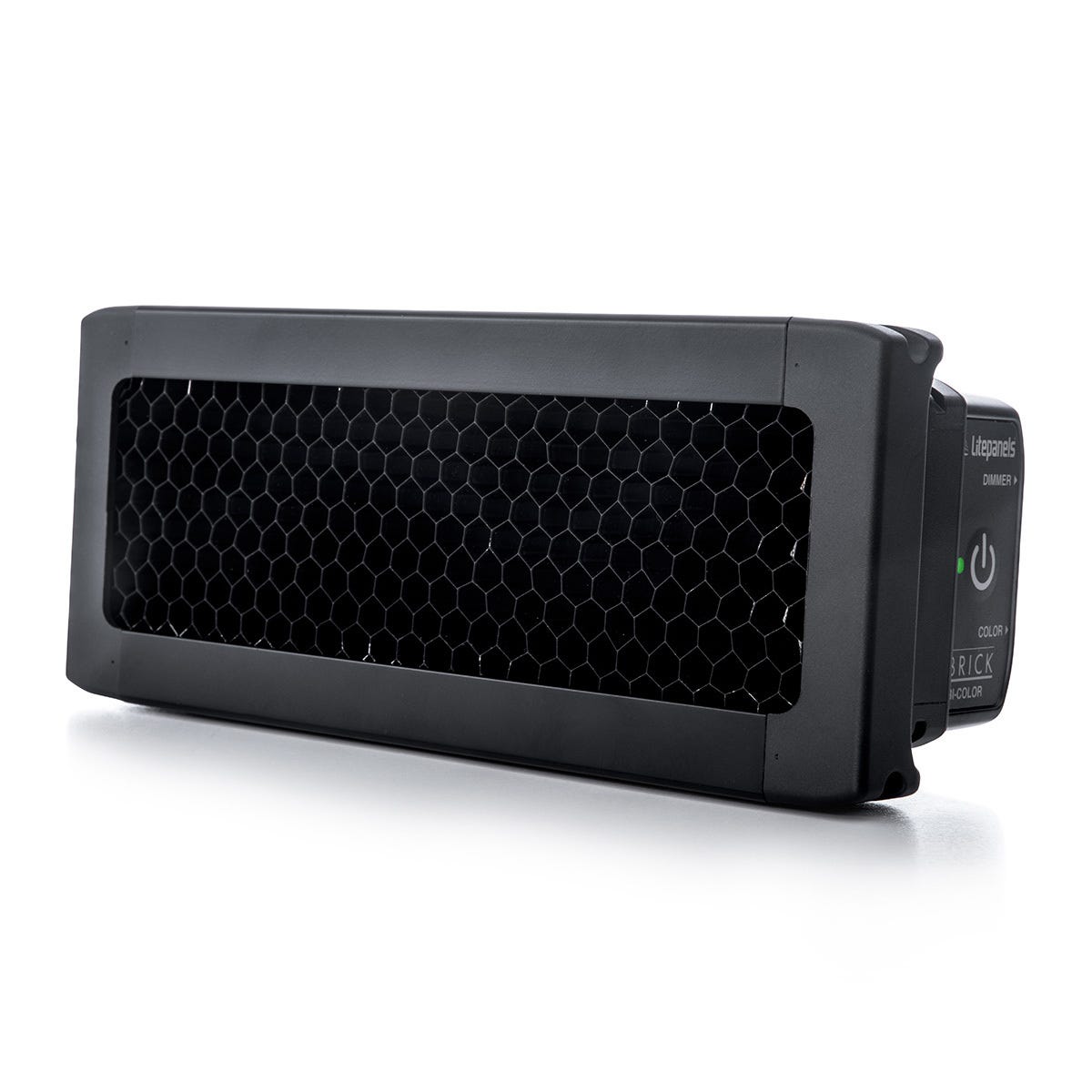

  • Honeycomb Accessory Adapter Frame

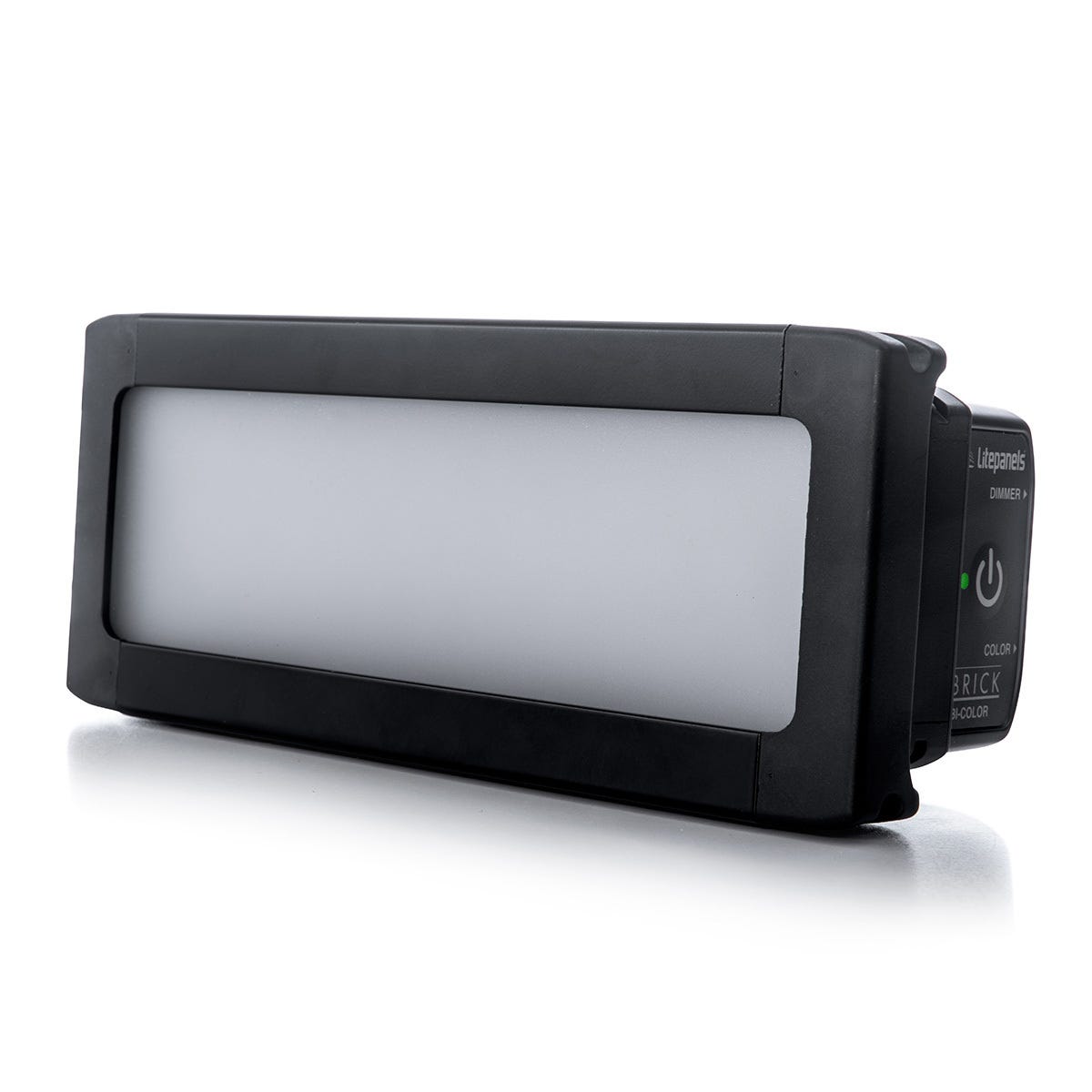

  • Diffuser Adapter Frame
  • Manfrotto Micro 244 Mounting Arm with Adapter
  • 1/2 White Diffusion Gel

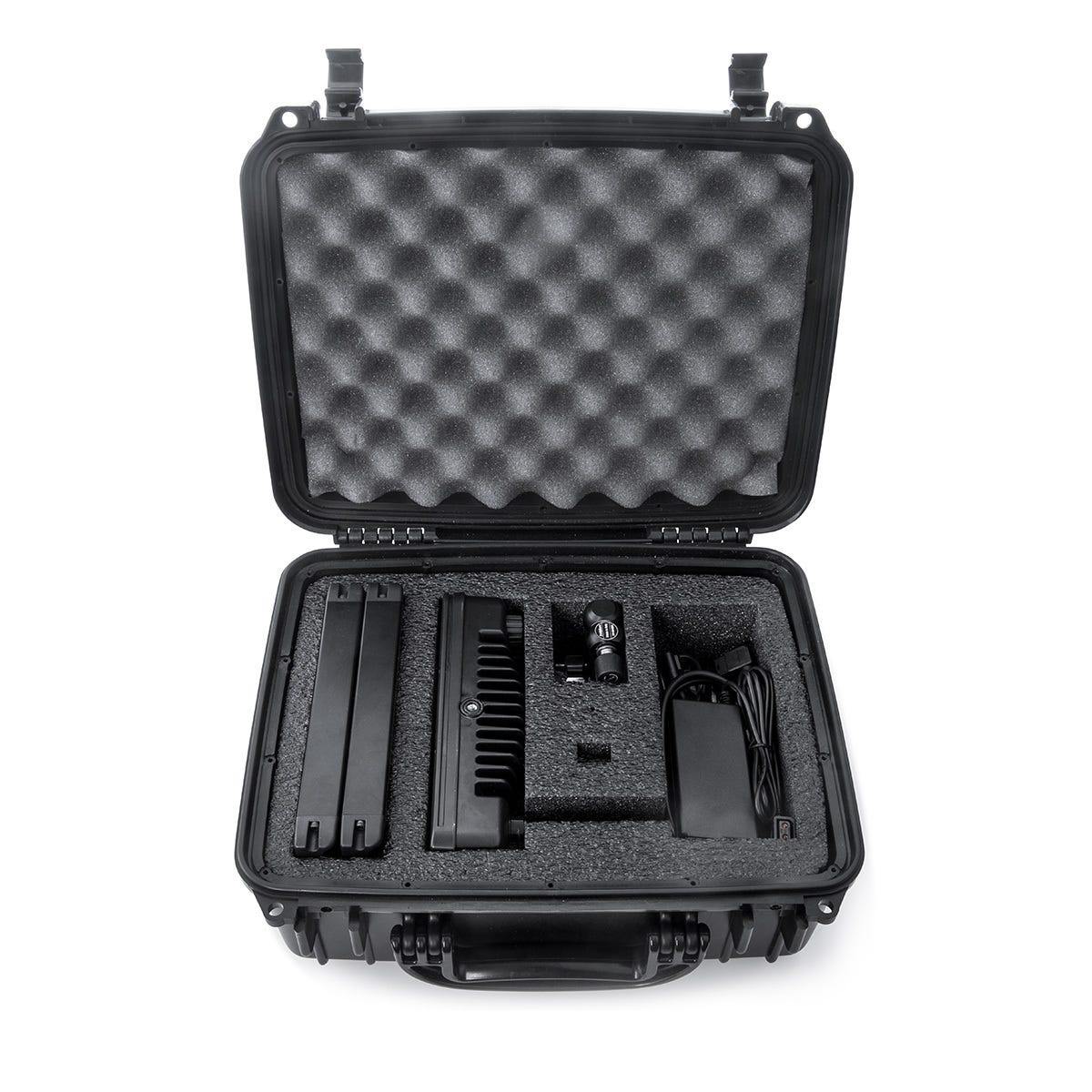

  • Waterproof Flight Case
  • Litepanels 1 Year Limited Warranty (Extended 1 Year Warranty with Registration)
