What is the color temperature range of the Astra Soft and Astra 6X Bi-Color LED Panels?

Both the Astra Soft and Astra 6X Bi-Color LED Panels have an adjustable color temperature range from 3200K to 5600K, allowing for versatile lighting conditions.

What is the power draw of the LED panels in the Astra Light Kit?

Both the Astra Soft and Astra 6X Bi-Color LED Panels have a low power draw of 105W, ensuring energy-efficient operation.

What is included in the Astra Light Kit?

The Astra Light Kit includes two Astra Soft 105W Bi-Color LED Panels, one Astra 6X 105W Bi-Color LED Panel, three Gold-Mount Battery Adapter Plates, and a Trio Travel Case for easy transportation.

What are the cooling options for the LED panels?

Both the Astra Soft and Astra 6X Bi-Color LED Panels offer dual cooling options for enhanced reliability and noise-free operation.

What accessories are compatible with the Astra Light Kit?

The Astra Light Kit is compatible with a wide range of light shaping tools and accessories, including aluminum accessory mounting points and lens/filter rails for the attachment of softboxes, barn-doors, and diffusers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Litepanels Astra Light Kit Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    3

  • Fixture Type

    Light Panel

  • Photometrics

    94° at 3200K
    213fc / 2300Lux at 3.3 / 1 m
    95fc / 1022Lux at 4.92 / 1.5m
    24fc / 256Lux at 9.84 / 3m
    11fc / 114Lux at 15.09 / 4.6m
    94° at 5600K
    246fc / 2651Lux at 3.3 / 1 m
    109fc / 1178Lux at 4.92 / 1.5m
    27fc / 294Lux at 9.84 / 3m
    12fc / 131Lux at 15.09 / 4.6m

  • Color Accuracy Standard

    CRI 98, TLCI 98

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    3200-5600K

  • Display

    No

  • Beam Angle

    94°

  • Built-In Flash

    No

  • Cooling System

    Fan/Passive Combo

  • Dimming

    Built-In Dimmer (Continuous)- 0 to 100%

  • Water Resistance/IP Rating

    IP20

Connectivity

Jump to...
  • Mobile App Compatible

    Yes: iOS Only

Battery

Jump to...
  • Battery Connection

    Gold Mount

  • Battery

    1x Rechargeable, 14.8 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    105 W

  • AC Input Power

    120 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    13 to 24 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    16" x 18"

  • Dimensions

    17.7 x 16.3 x 5.3" / 45 x 41.4 x 13.5cm (Fixture)

  • Weight

    7.1lb / 3.22kg

21 Accessories for Litepanels Astra Light Kit, Includes 2x Astra Soft 105W Bi-Color LED Panel, 1x Astra 6X 105W Bi-Color LED Panel, 3x Gold-Mount Battery Adapter Plates, Trio Travel Case

  • All Accessories (21)
  • Batteries & Power Supply (3)
  • Softboxes & Accessories (1)
  • Gaffer Tape (8)
  • Rain Covers (2)
  • Clamps (4)
  • Barndoors (1)
  • Grids (1)
  • Adapters & Mounts (1)

About Litepanels Astra Light Kit

The Astra Light Kit is an all-inclusive, professional-grade lighting solution designed for both studio and on-location shoots. This comprehensive kit includes two Astra Soft 105W Bi-Color LED Panels, one Astra 6X 105W Bi-Color LED Panel, three Gold-Mount Battery Adapter Plates, and a robust Trio Travel Case for easy transportation.

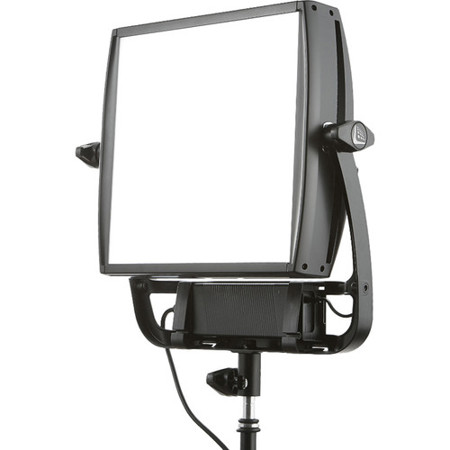

The Astra Soft Bi-Color LED Panel is renowned as the ultimate beauty light, providing wide, soft, and color-accurate white light to flawlessly illuminate your subjects. With an adjustable color temperature range from 3200K to 5600K, this LED panel offers the flexibility to adapt to your specific lighting needs. It boasts a low power draw of 105W, ensuring consistent performance whether you're shooting in a studio or on location. The panel's built-in diffusion creates a softbox-style light in a slim and highly maneuverable fixture, perfect for situations where space is limited.

The Astra 6X Bi-Color LED Panel, on the other hand, offers a high-intensity output equivalent to a 200W HMI fixture while only drawing 105W. This powerful LED panel can compete with strong exterior light sources or effectively illuminate a large area with just a single fixture. Like the Astra Soft, it also offers an adjustable color temperature range from 3200K to 5600K, ensuring versatility in various lighting conditions.

Both panels feature industry-leading reliability with automatic flicker-free performance at any frame rate or shutter angle, and at any intensity level. They also offer dual cooling options for enhanced reliability and noise-free operation.

The included Gold-Mount Battery Adapter Plates allow for wire-free operation, enabling quick and easy setup and teardown. The Trio Travel Case, designed with rugged, waterproof Pelican material, ensures safe and convenient transportation of your lighting equipment.

The Astra Light Kit also includes a range of light shaping tools and accessories compatible with the entire Astra family. These include aluminum accessory mounting points and lens/filter rails for stable and durable attachment of softboxes, barn-doors, and diffusers.

Whether you're a news crew on the go or a professional videographer in need of a versatile lighting solution, the Astra Light Kit offers the perfect blend of performance, flexibility, and convenience.

Litepanels Astra Light Kit Features

  • Astra Soft LED Light Panel Features
  • Soft, color-accurate white light
  • Automatically flicker-free at any frame rate
  • Active & Passive cooling modes
  • Fully-adjustable Daylight and Tungsten color temperature
  • High CRI output
  • AC and optional battery power
  • Astra 6X LED Light Panel Features
  • Bright, color-accurate white light
  • Automatically flicker-free at any frame rate
  • Active & Passive cooling modes
  • Fully-adjustable Daylight and Tungsten color temperature
  • High CRI output
  • AC and optional battery power
  • Pelican Storm Hard Case Features
  • Watertight
  • Guaranteed For Life
  • Press & Pull Latches
  • Three Double-layered, Soft-grip Handles
  • Two Padlockable Hasps
  • In-line Wheels
  • Telescoping Handle
  • Vortex Valve
  • Flush Powerful Hinges
  • Lightweight Strong HPX Resin

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve professional lighting with this Litepanels LED kit, perfect for studio environments.
  • Enjoy superior color accuracy (CRI 98/TLCI 98) with these bi-color LED panels for true-to-life shots.
  • Easily control brightness and color temperature (3200-5600K) for versatile lighting setups.
  • Set up quickly with included stands and Gold Mount battery plates for on-the-go shooting.
  • This durable LED light panel kit includes a protective case for safe transport and storage.
  • Get even, soft light with wide 94° beam angle, ideal for interviews and product photography.

What's in the box:

  • 2x ASTRA Soft 105W Bi-Color LED Panels (935-5021)
  • ASTRA 6X 105W Bi-Color LED Panel (935-1023)
  • 3x Compact Nano Stands (900-3009)
  • 3x AC Power Supply w/ Mounting Bracket
  • 3x US AC Power Cables (900-0003)
  • 3x EU AC Power Cables (900-0013)
  • 3x Anton/Bauer Gold-Mount Battery Adapter Plates (900-3507)
  • 3x 3-Pin XLR to P-Tap Adapter Cables (900-0024)
  • Pelican Storm Hard Case with Custom Foam (900-3041)
  • Litepanels 1 Year Limited Warranty (Extended 1 Year Warranty with Registration)
