What is the range of the beam angle on the Astra 1x1 105W Bi-Focus Daylight LED Panel?

The Astra 1x1 105W Bi-Focus Daylight LED Panel allows you to adjust the beam angle from a focused 15 degrees to a wide 45 degrees, offering versatile lighting solutions.

Does the Astra 1x1 105W Bi-Focus Daylight LED Panel have cooling options?

Yes, the Astra 1x1 105W Bi-Focus Daylight LED Panel features dual cooling options for efficient power and thermal management. You can choose between ultra-quiet active cooling or silent passive cooling.

Can I control the Astra 1x1 105W Bi-Focus Daylight LED Panel remotely?

Yes, the Astra 1x1 105W Bi-Focus Daylight LED Panel offers optional communications modules for quick and easy remote control of parameters such as brightness, color temperature, and cooling. These modules are compatible with DMX512 RJ45, DMX512 XLR5, wireless DMX, and Bluetooth.

What mounting options does the Astra 1x1 105W Bi-Focus Daylight LED Panel offer?

The Astra 1x1 105W Bi-Focus Daylight LED Panel provides flexible mounting options, including a removable 5/8" TVMP connector and two 1/4"-20 female taps, allowing you to position the panel exactly where you need it.

Is the Astra 1x1 105W Bi-Focus Daylight LED Panel compatible with light shaping tools?

Yes, the Astra Bi-Focus Daylight LED Panel is compatible with a wide range of light shaping tools and accessories. It features aluminum accessory mounting points and lens/filter rails for stable and durable attachment of softboxes, barn-doors, and diffusers.

Reviews about this item

Review Summary

2016-12-08T10:23:02

Rated 5 out of 5

Will buy again

Yes yes and yes. Consistent easy and light!

JEREMY D.

2016-09-23T11:29:24

Rated 4 out of 5

Finally soft light coming from a litepanel

I have the non soft Astra as well. This one works great alone or paired with the non soft version. I do use a modifier with the other one if I want to match the quality of light from this one. I would say it is a stop or so less powerful than the brightest regular Astra 1x1. I'd give it 5 stars if it cost $500 less

GARRETT H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Litepanels Astra 1x1 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    15° at 5600K
    8393fc / 90,346Lux at 3.3 / 1 m
    756fc / 8133Lux at 9.84 / 3m
    336fc / 3615Lux at 14.76 / 4.5m
    189fc / 2033Lux at 19.69 / 6m
    45° at 5600K
    1132fc / 12,180Lux at 3.3 / 1 m
    102fc / 1096Lux at 9.84 / 3m
    45fc / 487Lux at 14.76 / 4.5m
    26fc / 274Lux at 19.69 / 6m

  • Color Accuracy Standard

    CRI 95

  • Color Temperature

    Daylight

  • Display

    No

  • Beam Angle

    15 to 45°

  • Built-In Flash

    No

  • Cooling System

    Fan/Passive Combo

  • Dimming

    Built-In Dimmer (Continuous)- 0 to 100%

  • Water Resistance/IP Rating

    IP20

Connectivity

Jump to...
  • Mobile App Compatible

    Yes: iOS Only

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Battery

    1x Rechargeable, 14.4 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    105 W

  • AC Input Power

    120 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    13 to 24 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    16" x 18"

  • Dimensions

    17.7 x 16.3 x 5.3" / 45 x 41.4 x 13.5cm (Fixture)

  • Weight

    7.1lb / 3.22kg

  • UPC Code

    859058005273

About Litepanels Astra 1x1

FEATURED REVIEWS

Will buy again

By JEREMY D.

Yes yes and yes. Consistent easy and light!

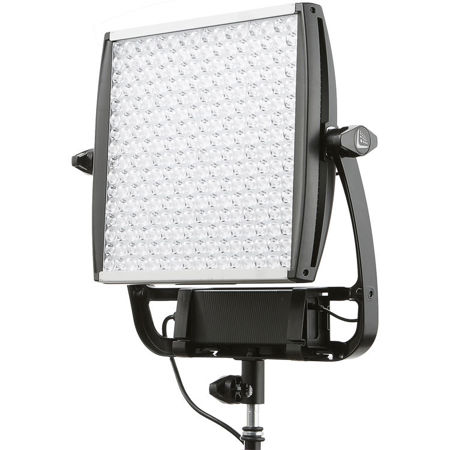

Let the Astra 1x1 105W Bi-Focus Daylight LED Panel by Litepanels transform your photography and videography with its bright, color-accurate white light. This high-quality LED panel offers unparalleled flexibility, allowing you to instantly adjust the beam from a focused 15 degrees to a wide 45 degrees, making it an ideal choice for isolating subjects, controlling light spill, or illuminating large spaces.

This compact and lightweight fixture is designed for maximum performance, boasting a CRI/TLCI rating of 95 for outstanding color rendition. With its custom optics and dual lenses, the Astra Bi-Focus Daylight LED Panel delivers an impressive 90,364 Lux of brilliant white spotlight or 1,218 Lux of soft floodlight, ensuring perfect illumination for your scene.

The high-performance LEDs offer a longer throw over a wider field, providing superior color reproduction. Thanks to advanced LED control, the Astra panel ensures stable, flicker-free light at any intensity and frame rate, without the need for special timing adjustments.

The Astra Bi-Focus Daylight LED Panel also prioritizes efficiency and reliability. Its dual cooling options prevent overheating and noise on set, allowing you to choose between ultra-quiet active cooling or silent passive cooling.

For added convenience, this LED panel features optional communications modules for quick and easy remote control of parameters such as brightness, color temperature, and cooling. Compatible with DMX512 RJ45, DMX512 XLR5, wireless DMX, and Bluetooth, these modules enable seamless integration with DMX control systems and remote control from iOS devices using the free Litepanels SmartLite Director app.

The Astra Bi-Focus Daylight LED Panel comes with both US and EU power cables and a universal yoke-mounted power supply. For locations without AC power or for maximum setup speed and flexibility, the panel can run on 13-24V DC batteries with an optional Gold Mount or V-Mount battery plate.

The curved yoke design allows for a wide, unobstructed tilt range, providing ample clearance for light shaping accessories. With flexible mounting options, including a removable 5/8" TVMP connector and two 1/4"-20 female taps, you can position the Astra panel exactly where you need it.

Finally, the Astra Bi-Focus Daylight LED Panel is compatible with a wide range of light shaping tools and accessories, featuring aluminum accessory mounting points and lens/filter rails for stable and durable attachment of softboxes, barn-doors, and diffusers. Illuminate your scenes with precision and quality with the Astra 1x1 105W Bi-Focus Daylight LED Panel.

Litepanels Astra 1x1 Features

  • Bright, color-accurate white light
  • Fully-adjustable from Spot to Flood
  • Automatically flicker-free at any frame rate
  • Active & Passive cooling modes
  • 5,600K color temperature
  • High CRI output
  • AC and optional battery power

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with a CRI of 95 using this daylight LED panel.
  • Control brightness easily with the built-in dimmer, adjustable from 0 to 100%.
  • Enjoy a versatile beam angle from 15 to 45° for focused or broad LED lighting.
  • Use the Astra 1x1 light panel for photography, video, or studio lighting needs.
  • Mount easily with the 5/8" receiver, making it simple to integrate into any setup.
  • This power-efficient 105W LED panel provides bright, reliable continuous lighting.

What's in the box:

  • Astra 1x1 105W Bi-Focus Daylight LED Panel
  • Diffusion Gel
  • Standard Yoke
  • Power Supply
  • 2x Power Cables (US & EU)
  • Litepanels 1 Year Limited Warranty (Extended 1 Year Warranty with Registration)
