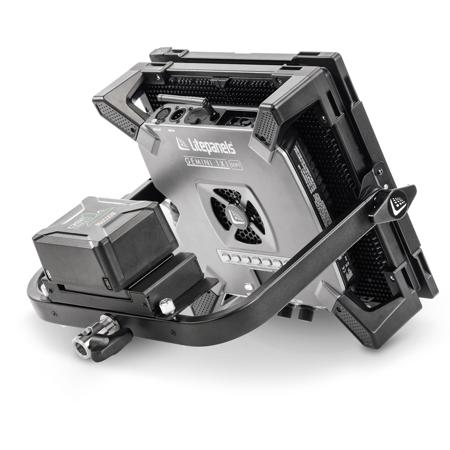

Litepanels Gemini 1x1 200W Soft RGBWW LED Panel with Standard Yoke and EU Power Cable

SKU: LP9451101

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Litepanels Gemini 1x1 Soft RGBWW LED Panel with EU Power Cable and Standard Yoke Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    95° at 3200K
    465fc / 5013Lux at 3.3 / 1 m
    51fc / 557Lux at 9.8 / 3m
    95° at 5600K
    513fc / 5526Lux at 3.3 / 1 m
    57fc / 614Lux at 9.8 / 3m

  • Color Accuracy Standard

    CRI 97 at 5600K, TLCI 97 at 5600K, CRI 94 at 3200K, TLCI 94 at 3200K

  • Color Temperature

    RGBW

  • Color Temperature Range

    2700-10000K

  • Display

    LCD

  • Beam Angle

    95°

  • Built-In Flash

    No

  • Cooling System

    Fan

  • Dimming

    Built-In Dimmer (Stepped)- 0.1 to 100%

  • Water Resistance/IP Rating

    IP20

Connectivity

Jump to...
  • Mobile App Compatible

    Yes, Adapter Required (Not Included): Android & iOS
    App Name: SmartLite Director

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Battery

    1x V-Mount Rechargeable, 14.4 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    200 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    13 to 28 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    12" x 12"

  • Dimensions

    1 x 1 / 30.48 x 30.48cm (Fixture Panel) 12.6 x 12.6 x 4.6" / 32 x 32 x 11.7cm (Fixture)

  • Weight

    11.71lb / 5.31kg

  • UPC Code

    859058005815

About Litepanels Gemini 1x1 Soft RGBWW LED Panel with EU Power Cable and Standard Yoke

Are you seeking a versatile, high-quality, and portable lighting solution for your photography or filming needs Look no further than the Gemini 1x1 200W Soft RGBWW LED Panel with Standard Yoke and EU Power Cable. This durable and adjustable LED panel, a proud member of the esteemed Litepanels Gemini Family, offers an unparalleled range of dynamic lighting options in a compact, easy-to-handle form factor.

This innovative LED panel is a powerhouse of creativity, featuring over 16.7 million colors and 11 cinematic lighting effects, all instantly accessible at the touch of a button. With a full-spectrum white light range from a warm 2700K to a cool 10,000K CCT, this panel offers the industry's broadest color temperature range.

The Gemini 1x1 Soft RGBWW LED Panel is not just about versatility; it's about precision and quality. With an impressive TLCI of 94 and a CRI rating of 97, it produces the industry's most accurate soft light. You can trust this panel to deliver consistent light quality, with no color shift or flicker at any frame rate or shutter angle, and throughout the full dimming range from 100-0%.

The panel also features five lighting modes for ultimate control over your lighting environment. These include RGBW Mode for individual control over red, green, blue, and white LEDs; HSI Mode for precision color mixing; CCT Mode for full-spectrum correlated color temperature control; Gel Mode featuring a digital library of popular industry-standard gels; and Effects Mode delivering 11 fully customizable cinematic special effects.

Control over this LED panel is a breeze, whether you're on set or on location. Choose from wired RJ45 or XLR5 DMX options, wireless DMX (LumenRadio), or Bluetooth paired with Litepanels SmartLite Director iOS app for comprehensive lighting control at your fingertips.

The Gemini 1x1 Soft RGBWW LED Panel is designed for global use, with a multi-voltage power input from 100-240VAC. It's also compatible with V-Mount, Gold Mount, or VCLX-style block batteries for full-intensity operation when AC power isn't available. With its lightweight design and no-assembly-required convenience, this LED panel is ready to enhance your lighting setup right out of the box.

Litepanels Gemini 1x1 Soft RGBWW LED Panel with EU Power Cable and Standard Yoke Features

  • Front area dimension: 11.25" x 11.25"
  • 95 Degree Beam angle, 157 Degree Field angle
  • Color temperature range 2,700-10,000K
  • Full RGBWW color gamut mixing
  • Hue, Saturation and Intensity Control
  • Full minus to full plus green color tint
  • CRI: 97, TLCI: 94
  • 0-100% Automatic flicker-free dimming
  • Control: built-in WIFI, DMX (5 PIN & RJ45), optional wireless DMX (LumenRadio), Bluetooth, Litepanels SmartLite Director App
  • Multi-voltage 100-240VAC; DC Input 13V to 28V
  • Optional mobile battery power with 100% intensity output

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • High-quality, versatile LED panel from the reputable Litepanels Gemini Family
  • Offers over 16.7 million colors and 11 customizable cinematic lighting effects
  • Features a wide color temperature range from 2700K to 10000K
  • Provides consistent light quality with no color shift or flicker
  • Includes five lighting modes for ultimate control over your lighting environment
  • Compatible with AC or DC power, with multi-voltage power input from 100-240VAC

What's in the box:

  • Gemini 1x1 200W Soft RGBWW LED Panel
  • Standard Yoke
  • Medium Diffuser
  • EU Power Cable
  • Litepanels 1 Year Limited Warranty (Extended 1 Year Warranty with Registration)
