Review Summary

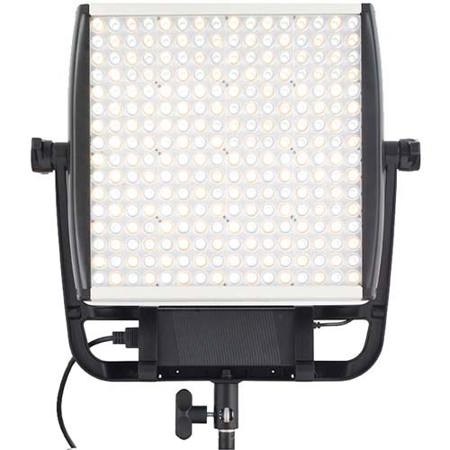

The family of innovative ASTRA 1x1 fixtures are built on the legacy of the original 1x1 panel, which revolutionized the lighting industry. Every design element of these next generation panels has been meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as Studio installations.
Following the Litepanels tradition of a one square foot form factor, the ASTRA 1x1 fixtures are designed with upgraded technology, featuring select premium quality, high CRI surface mount LEDs, paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1s with superior color reproduction and a light output that is brighter than the original 1x1 panel with 5mm LEDs, providing greater flexibility than ever before. The ASTRA 1x1 range of professional LED panels include Daylight, Tungsten and tunable Bi-Color models.
Flexible, modular concept
Optional communications module allows the brightness, color temperature and cooling mode to be controlled via DMX512 protocol
Optional yoke mounted Gold Mount or V-Mount battery plates
External power supply
Field replaceable fan module (Not available in ASTRA 1x1 E & EP Series)
Modern fixture design
Easily identifiable and ergonomic manual controls for dimming, color and power status
Aluminum I-beam core construction to provide maximum durability and superior thermal management
Aluminum accessory mounting points and lens/filter rails
End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
Durable, industry standard 3-pin XLR locking power connector
Custom curved yoke design
Wide, unobstructed tilt range
Yoke mounted power supply and optional battery plates with dual integrated cable guides
Removable TVMP connector for flexible mounting options
Two alternate 1/4-20 mounting points
Advantages
Output is more powerful than the original 1x1 LED panels - ASTRA 1x1 EP Series: 2x brighter
High performance LEDs with custom paired optics
Higher intensity = Longer throw = Wider effective illuminated area
Superior color reproduction
High color rendition (CRI) TLCI rated
Accurate color temperatures
Ultra-smooth dimming from 100% to 0
No noticeable color shift throughout the entire range
Flicker-free at any frame rate or shutter angle
Efficient thermal management
Completely silent passive cooling mode
Ultra-quiet active cooling mode with double light output (Not available in ASTRA 1x1 E & EP Series)
Additional Features
Offers up to 291 Footcandles at 5 feet/1.5m
Passive cooling
Max power draw 55W
Comparable output 1000W T Softlight
