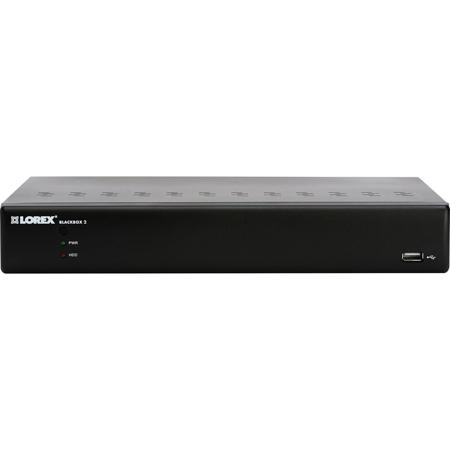

Lorex ECO Blackbox 8 Channel Wireless Security Camera System
See all Lorex items

Lorex ECO Blackbox 8 Channel Wireless Security Camera System, Includes 500GB DVR, 4 Wireless Cameras with Receiver

SKU: LRH28501C4WB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lorex ECO Blackbox 8 Channel Wireless Security Camera System Specifications

  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous View, Record, Playback, Backup & Remote Monitoring

  • Number of Channels

    8

  • Video IN

    4/8/16 x 1Vp-p, CVBS, 75Ohms, BNC

  • Video OUT

    BNC

  • VGA OUT

    Yes

  • HDMI

    Yes

  • Audio IN

    8ch: 2 Line in(RCA), G.711

  • Audio OUT

    1 line out(RCA), G.711

  • USB Port

    1 at the back for Mouse, 1 at the front for firmware upgrade & USB backup

  • Video Output Resolution

    800x600, 1024x768, 1280x1024, 1440x900, HDMI (1920x1080)

  • PTZ control

    RS-485 Pelco D & P Protocol

  • Live Display

    1, 4, 8

  • Live Display Speed

    240 NTSC, 200 PAL

  • OSD

    ON/OFF

  • System Navigation

    USB Mouse, IR Remote Controller

  • USB Mouse, IR Remote Controller

    Adjustable grid (30x44) NTSC
    Adjustable grid (36x44) PAL

  • Sensitivity levels

    8

  • Firmware Upgrade

    Automatic over the Internet & via USB device and Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

  • Video Compression

    H.264

  • Audio Compression

    G.711

  • Recording Resolution

    NTSC:
    960H mode: 480x240(WCIF),960x240(WHD1),960x480(WD1)
    D1 mode: 360x240(CIF),720x240(HD1),720x480(D1)
    PAL:
    960H Mode: 480x288(WCIF),960x288(WHD1),960x576(WD1)
    D1 Mode: 360x288(CIF),720x288(HD1),720x576(D1)

  • Recording Resolution Setting

    Per camera for different resolutions (CIF/2CIF/D1 or WD1/WHD1/WCIF)

  • Recording Quality Control

    3 Levels

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by ch

  • Pre Recording

    Max. 10 Secs

  • Post Recording

    Max. 5 Minutes

  • Reliability

    Watch-Dog, Auto-recovery after power failure

  • Covert Video

    Yes

  • Playback Channel

    1-8 Adjustable (8ch)

  • Playback Speed

    Variable Max 16x

  • Playback Players

    Backup Player

  • Search

    By time & event

  • Log Search

    Up to 10,00,000 lines for motion detected, configuration changes, connects/disconnects and video loss.

  • Audio Play

    Yes

  • Storage

    Up to 1 HDD's (SATA)

  • Maximum Capacity

    Up to 2TB

  • Backup Media

    USB Flash Drive & HDD

  • Backup File Format

    H.264 file (AVI generator included)

  • Cloud Connection

    Lorex Stratus Connectivity

  • Supported Operating Systems

    Windows 7/8, Mac OSX Snow Leopard 10.6 or above

  • Remote Software

    Client Software (PC) & Safari 6.0 (Mac)

  • Email notification

    Text with snapshot

  • Instant Smart Phone Compatibility

    Smart Phone
    Tablet Compatibility: iPad, iPhone android (version 2.2 & above)

  • DDNS

    Free Lorex DDNS

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by User

  • Network Protocol

    TCP/IP / DHCP / UDP / DDNS / PPPoE

  • Network Interface

    10/100-Base-TX, RJ-45

  • Network Speed Control

    48kb-8MB/sec.

  • Power Consumption

    Approx. 10 watts (No HDD Installed)

  • Supply Voltage

    100VAC-240VAC, 12VDC, 2A, 50/60Hz

  • Operating temperature

    DVR: 32 deg. F to 104 deg. F ( 0 deg. C to 40 deg. C)
    Receiver: 14 deg. F to 122 deg. F (-10 deg. C to 50 deg. C)
    General: 14 deg. F to 122 deg. F (-10 deg. C to 50 deg. C)

  • Humidity

    10-90% NC

  • TX Frequency Range

    2.40-2.480GHz

  • TX Power

    16dBm

  • Unobstructed Effective Range

    Indoor: 165' (50.29m)
    Outdoor: 500' (152.4m)

  • Data Rate

    4 Mb/s

  • Modulation

    GFSK

  • Spread Spectrum

    FHSS

  • Camera: Image Sensor

    1/4" Color CMOS Image Sensor

  • Camera: Effective Pixels

    H: 640
    V: 480

  • Camera: Image Compression

    MPEG4

  • Camera: Image Resolution

    VGA (640x480)

  • Camera: Lens

    3.6mm F2.0

  • Camera: Field of View

    55deg. (Diagonal)

  • Camera: AGC

    On

  • Camera: Power Requirement

    9V DC +/- 5%

  • Camera: Power Consumption

    430mA Max with IR LED
    220mA Max without IR LED

  • Camera: Environment Rating

    IP66

  • Camera: IR LED Quantity / Type

    24 pieces / 850nm

  • Camera: Night Vision Range

    90' (27.43m) / 135ft (41.14m)

  • Camera: Built in Auto IR Turn On / Off

    CdS Drive Auto IR LED turn On/Off Circuit

  • Receiver: RX Sensitivity

    -81dBm

  • Receiver: Demodulation

    GFSK

  • Receiver: Data Rate

    4 Mb/s

  • Receiver: Supported Resolution

    VGA (640x480) up to 25 frames per second

  • Receiver: Termination

    2x BNC video

  • Receiver: Power Requirement

    9V DC +/- 5%

  • Receiver: Power Consumption

    270mA Max

  • Dimensions (W x D x H)

    Camera: 79 x 203 x 117mm / 3.11 x 7.99 x 4.6" (With Antenna and Sunshade)
    DVR: 11.81 x 8.66 x 1.97" (299.97 x 219.96 x 50.03mm)
    Receiver With Antenna: 53 x 137 x 86mm (2.08 x 5.39 x 3.38")

  • Weight

    DVR: 3.33lbs (1.51kg)
    Camera: 0.3kg (0.66lbs)
    Receiver: 0.1kg (0.22lbs)

  • UPC Code

    695529001715

About Lorex ECO Blackbox 8 Channel Wireless Security Camera System

The Lorex ECO Blackbox 8 Channel Wireless Security Camera System provides 960H recording resolution for true to life aspect ratio that provides sharper, more detailed, and non-stretched images. The Blackbox 2 supports real-time (30 frames per second) 960H recording on up to 4 channels, allowing to view world with the clarity and sharpness of a Hollywood film. Record continuous or motion-activated video on the reliable surveillance-grade hard drive designed for 24/7 operation. Stay informed with what's happening on cameras with the instant email alerts with snapshot attachments. The system features the Lorex Stratus Connectivity solution, a revolutionary new method for simple remote access to your system. Simply download the free app, scan the QR code on DVR, and start viewing live and recorded video from your security system instantly and securely.

The ECO Blackbox 2 has been paired with wireless cameras to provide the ultimate wireless surveillance solution. Experience crisp real-time 960H video, all without the use of video cables. With no video extension cables to run, you have the freedom to install the weatherproof (IP66 rated) wireless cameras almost anywhere indoors and outdoors. Enjoy wireless video without compromises in connectivity. The cameras use next generation interference reduction technology to ensure camera feeds are secure and provide consistently fluid video. Signal Guard technology ensures that the cameras have a continuous wireless connection to your DVR.

The ultimate wireless home security solution has arrived. The LH020W Series pairs stunning wireless picture quality with reliable video recording and instant remote connectivity. The high-grade wireless cameras allow flexible installation free of video cabling, making them suitable for nearly any location. Enjoy the freedom of wireless surveillance with the reliability and functionality of the ECO Blackbox 2 Security DVR.

Lorex ECO Blackbox 8 Channel Wireless Security Camera System Features

  • BlackBox 2: 960H (960x480) recording resolution capable
  • BlackBox 2: H.264 video compression
  • BlackBox 2: HDMI output
  • BlackBox 2: Real time recording: 8ch: (360x240)
  • BlackBox 2: Pentaplex operation - View, Record, Playback, Back Up & Remotely Control the system simultaneously
  • BlackBox 2: 24/7 100% Duty cycle hard drive pre-installed
  • BlackBox 2: LOREX Stratus Solution - Quick & simple internet cloud connectivity
  • BlackBox 2: Instant Mobile Viewing on compatible Smart phones & Tablets
  • BlackBox 2: PC and Mac Compatible
  • BlackBox 2: Free LOREX DDNS (Dynamic Domain Name Service) for advanced remote connectivity at all times
  • BlackBox 2: Instant email alerts with snap shot attachment
  • BlackBox 2: Accurate Time Stamps with NTP & Daylight Savings Time
  • Digital Wireless Camera: Real-time (up to 30fps) wireless video with MPEG-4 compression at 640x480 (VGA) resolution
  • Digital Wireless Camera: Extended bandwidth delivers super smooth high frame rate video
  • Digital Wireless Camera: SignalGuard Technology continuously monitors the wireless signal and automatically reconnects upon detecting low signal strength
  • Digital Wireless Camera: Next generation adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces signal interference
  • Digital Wireless Camera: Auto-mechanical infrared camera filter achieves accurate color reproduction in varying lighting conditions
  • Digital Wireless Camera: 2 channel receiver for separate wireless video channels to your DVR minimizes cable clutter
  • Digital Wireless Camera: Long range night vision range up to 135ft (41m) / 90ft (27m)
  • Digital Wireless Camera: Simple installation. No video cable required
  • Digital Wireless Camera: Weatherproof camera and power connectors, can be installed indoors or outdoors
  • Digital Wireless Camera: Easily connects to any surveillance DVR (BNC)
  • Digital Wireless Camera: High gain antennas provide up to 165ft (50m) indoor / 500ft (152m) outdoor wireless range
  • Digital Wireless Camera: Vandal resistant camera design with cable pass-through mounting brackets

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lorex 8 Channel DVR with Preinstalled 500GB HDD
  • Remote Control
  • Power Adapter for DVR
  • Mouse
  • Ethernet Cable
  • HDMI Cable
  • CD-ROM
  • QSG
  • 4x Wireless Indoor/Outdoor Cameras (LW2232PK2B)
  • Wireless Receiver
  • 3x Power Adapter
  • 4x Antenna
  • Lorex 1 Year Limited Warranty
