Lorex 4 Channel 720p HD Security DVR System with 1TB Preinstalled HDD and 4x Indoor/Outdoor Cameras

SKU: LRHV10041TC4

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lorex DVR System Specifications

  • Operating System

    Linux (Embedded)

  • Pentaplex

    Simultaneous View, Record, Playback, Backup & Remote Monitoring

  • Number of Channels

    4

  • Video In

    4x 1Vp-p, CVBS, 75Ohms, BNC

  • Video Out

    No

  • VGA Out

    Yes

  • HDMI

    Yes

  • Audio In

    1 line IN (RCA) for service only - audio recording not supported

  • Audio Out

    1 line IN (RCA) for service only - audio recording not supported

  • USB Port

    1 at the back, 1 at the front

  • Video Output Resolution

    1920 x 1080 HDMI, 1280 x 1024, 1024 x 768

  • PTZ control

    RS-485 Pelco D & P Protocol

  • Live Display

    1, 4

  • Live Display Speed

    120 NTSC, 100 PAL

  • OSD

    ON/OFF

  • System Navigation

    USB Mouse, IR Remote Controller, Front Panel

  • Motion Area Setting

    Adjustable grid (22 x 18)

  • Sensitivity levels

    6

  • Firmware Upgrade

    Automatic over the Internet & via USB device and Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

  • Video Compression

    H.264

  • Audio Compression

    G.711

  • Recording Resolution

    NTSC: 720P (1280 x 720), 960 x 480, 704 x 480, 352 x 480, 704 x 240, 352 x 240, 176 x 120
    PAL: 720P (1280 x 720), 960 x 576, 704 x 576, 352 x 288, 176 x 144

  • Recording Resolution Setting

    720p Pixel (1280x 720)
    Total: 120fps, Per Channel: 30fps

  • Recording Quality Control

    5 levels

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by channel

  • Pre Recording

    Max. 30 Secs

  • Post Recording

    Max. 5 Minutes

  • Reliability

    Watch-Dog, Auto-recovery after power failure

  • Covert Video

    Yes

  • Playback Channel

    Single channel or quad playback

  • Playback Speed

    Variable Max 16x

  • Playback Players

    Backup Player

  • Search

    By time & event

  • Log Search

    Up to 1,000 lines for motion detected, configuration changes, connects/disconnects and video loss

  • Audio Play

    No

  • Storage Drive

    Up to 1 HDD's (SATA)

  • Maximum Capacity

    Up to 1x 4TB

  • Backup Media

    USB Flash Drive & HDD

  • Backup File Format

    DAV or ASF file

  • Cloud Connection

    Flir Cloud

  • Supported Operating Systems

    Windows, Mac OSX

  • Remote Software

    Client Software (PC) & Safari (Mac)

  • Email notification

    Text with snapshot

  • Instant Smart Phone & Tablet Support

    iPad, iPhone, Android

  • DDNS

    Free Lorex DDNS

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by User

  • Network Protocol

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP

  • Filter Network Interface

    10/100-Base-TX, RJ-45

  • Network Speed Control

    48Kb - 8MB/sec

  • Power Consumption

    Approx. 10Watts (no HDD included)

  • Supply Voltage

    100VAC to 240VAC, 12VDC, 2A, 50/60Hz

  • Operating temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Humidity

    10 - 90% RH

  • Dimensions

    12.8 x 9.6 x 2.0" / 325.12 x 243.84 x 50.80mm

  • Weight

    1.5kg / 3.31lbs

  • UPC Code

    695529001845

About Lorex DVR System

View your World in HD
Experience the gold standard in analog surveillance video that is second only to being there yourself. This HD DVR records video in real-time at 720p HD, double the resolution of 960H, on all 4 channels. Including 4 fully-loaded megapixel security cameras, this system uses standard BNC cabling to transmit stunning HD images for a surveillance experience like no other. Maintain vigilance with best-in-class image quality and view your world with new eyes.

Introducing FLIR Cloud, their innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues - you can quickly and easily connect to your security system using a smartphone, tablet, PC or Mac. FLIR Cloud will have you viewing your system remotely within minutes on your iOS or Android device. Simply download the free App, scan the QR code and start viewing your world securely online! Stay abreast of important developments with push notifications for motion events and instant email alerts with snapshot attachments.

The HD DVR is bundled with 720p wired HD bullet cameras that provide superb surveillance footage both day and night. The cameras are ideal for indoor and outdoor applications, with a fully weatherproof, polycarbonate housing that stands up against intruders and the elements. See it all, day and night, with best-in-class low light clarity, close up recognition in the dark with Smart IR and an impressive night vision range of up to 130ft (40m).

Security certified hard drive Record in real-time 30 frames per second to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 720p HD (1280x720) for the highest resolution or change the settings to a lower resolution for extended recording time.

For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 720p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.

Connect the HD DVR to a TV or LCD monitor with industry standard HDMI and VGA inputs. The intuitive interface with simple menus and icons allow for easy & efficient security DVR programming. Other advanced features of the HD DVR include click-and-drag digital zoom in live view and playback, dynamic drag & drop camera assignment and PTZ control through coaxial cabling.

HDTV Ready
High definition interface with HDMI output for easy connection to a TV.

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Flexible installation
Variety of installation options are available.

Digital Video Recorder features:
• High definition 720p recording. Double the resolution of 960H
• Real-time recording at 30fps per channel
• 24/7 security-grade hard drive
• Continuous, scheduled and motion recording
• H.264 video compression
• HDMI cable included for simple connection to HD TVs
• PTZ cameras supported, remote control through App
• Accurate time stamps with NTP & daylight savings time
• Click and drag digital zoom in live view and playback
• 2 video outputs (HDMI & VGA) to connect multiple monitors
• Instant USB backup of live video from selected camera
• Automatic firmware upgrade
• 3-Step remote view with FLIR Cloud
• PC and Mac compatible
• Free iOS and Android compatible apps
• Advanced apps with live viewing, playback, video recording and snap shot
• Push notifications of motion events
• Instant email alerts with snap shot attachment
• Dual streaming to conserve bandwidth

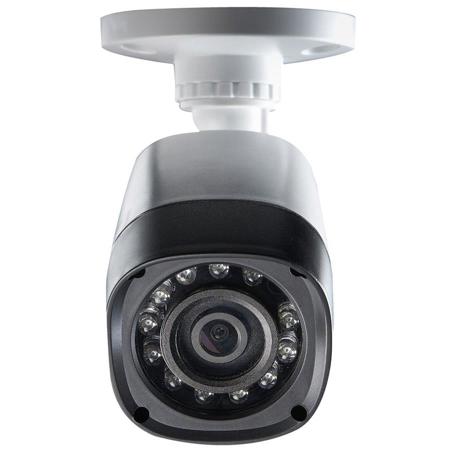

Camera Features:
• High definition 720p 1 megapixel image sensor delivers double the resolution of 960H
• Crystal clear video with outstanding detail, day or night
• Infrared cut filter ensures accurate color representation
• Night vision range up to 130ft (40m) in ambient lighting& 90ft (28m) in total darkness
• Close up recognition in the dark with SmartIR
• Anti-glare feature ensures clear images under strong lighting conditions
• ClearNight imaging for superior low light performance, improving recording efficiency
• Split glass design minimizes IR reflection Weatherproof for outdoor & indoor installation (IP66 Rated)
• Extreme temperature performance (-22deg.F to 122deg.F)
• Wide angle 90deg. field of view
• Vandal resistant design with cable pass-through bracket
• Lightweight and durable polycarbonate housing
• Removable camera base and integrated cable for flexible installation
• Versatile ceiling or wall mounting options
• Residential and business friendly compact design
• 60ft BNC/Power extension cable included per camera
• Energy-efficient CEC (California Energy Commission) compliant power adapter included
• Extend the video signal up to 800ft (242m) with a single run RG59 coaxial cable for flexible installations

What's in the box:

  • Lorex 4 Channel 720p HD Security DVR with 1TB Preinstalled HDD
  • 4x LBV1521PK4B Bullet Cameras
  • HDMI Cable
  • Remote Control
  • Power Adapter
  • USB Mouse
  • Ethernet Cable
  • Quick Start Guides
  • 4x Mounting Kit with Allen Key
  • 4x 60' BNC / Power Extension Cables
  • 4x 4-in-1 Power Adapters
  • Lorex 1 Year Limited Warranty
