LumenRadio CRMX Nova Indoor TX for One DMX Universe, RP-TNC Female
See all Lumen Radio items

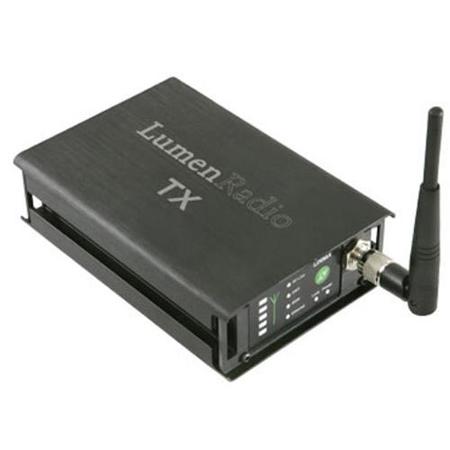

Lumen Radio CRMX Nova Indoor TX for One DMX Universe, RP-TNC Female

SKU: LRINDTX1CRMX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lumen Radio CRMX Nova TX Specifications

Supported Protocols

Supported Protocols

Jump to...

  • USITT DMX-512 (1986 & 1990) & DMX512-A

    Yes

  • RDM ANSI E1.20

    No

  • Works with CRMX SuperNova RDM Controller

    No

  • Firmware Upgrade

    XLR

DMX Interface

Jump to...

  • Number of universes supported

    1

  • Full DMX fidelity and frame integrity

    Yes

  • Error correction and packet recovery

    Yes

  • Frame synchronization

    Less than 0.01 ms

  • End-to-end DMX latency

    Less than 5 ms

  • Auto sensing of DMX frame rate and size

    Yes

  • Supported DMX frame rates

    0.8 - 7352 Hz

  • Number of DMX channels supported

    0 - 512

  • Loss of DMX input behavior

    Timeout after 1.25 s

  • ESD protected interfaces

    Yes

  • W-DMX G2/G3/G4 Compatibility

    No

Power

Jump to...

  • High voltage input

    100-240VAC / 47-70Hz /0.12A / 10W

  • Low voltage input

    12VDC +/-20% / 0.3A / 4W

  • Power over Ethernet

    No

  • Transient protected power inputs

    Yes

RF Characteristics

Jump to...

  • Modes of operation

    Transmitter

  • Automated Cognitive Coexistence

    Yes

  • Dynamic adaptive frequency hopping

    Yes

  • Recoverable Radio Packet Error Rate

    30%

  • Operational frequency range

    2402-2480 MHz

  • RF output in high power mode

    300 mW (25 dBm)

  • RF output in normal power mode

    100 mW (20 dBm)

  • RF output in low power mode

    35 mW (15 dBm) or 10 mW (10 dBm)

  • RF modulation

    GFSK

  • Sensitivity at 0.1% Packet Error Rate

    -96 dBm

  • Tested link range

    Up to 1000 m

  • Recovery time upon loss of radio link

    N/A

Approvals

Jump to...

  • Approvals

    FCC: 15.247&68 Class B
    Canada ICES 003 CE
    EN 301 489-1
    EN301 489-3
    EN 300 328
    SS-EN 61547:2009
    EN 60 950
    SRRC -China
    ARIB STD-T66 - Japan

Environment

Jump to...

  • Operating temperature range (ambient)

    -4 Degree F to 122 Degree F (-20 Degree C to +50 Degree C)

  • Humidity

    0-90% non-condensing

Connectors

Jump to...

  • Antenna connector

    RP-TNC female

  • DMX connectors

    1 XLR 5-pin male

  • Ethernet connectors

    NA

  • DC input

    Pluggable terminal strip,Phoenix MSTB 2.5

  • AC input

    IEC 320-C14 Male

Physical

Jump to...

  • Enclosure

    Anodized Extruded Aluminum

  • Dimensions (W x H x D)

    4.3 x 1.7 x 6.3" (110 x 44 x 160mm) excluding antenna

  • Weight

    1.5 lb (0.7kg)

About Lumen Radio CRMX Nova TX

CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at maximum refresh rate. Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion.

Based on our advanced CRMX technology, the CRMX Nova TX brings you all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and much more. Multiple CRMX Nova TX units can be combined to transmit several DMX universes, allowing easy system expansion. The CRMX Nova TX is compatible with all other CRMX products, both indoor and outdoor, DMX and RDM.

CRMX Nova utilizes the international license free ISM band on 2.4GHz.

Lumen Radio CRMX Nova TX Features

  • Single Universe Transmitter
  • Support for DMX512-A
  • Up to 1000 meter link range
  • 5 ms Latency
  • 128 bit Encryption of Wireless Link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • RP-TNC Antenna Connector

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Single Universe Transmitter
  • Support for DMX512-A
  • Up to 1000 meter link range
  • 5 ms Latency
  • 128 bit Encryption of Wireless Link
  • Automated Cognitive Coexistence

What's in the box:

  • CRMX Nova Indoor TX
  • AC Power Cord
  • DC Power Connector
  • 2 dBi RP-TNC Antenna
