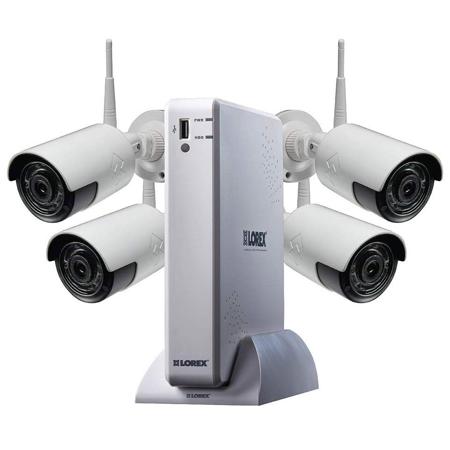

Lorex LH070 Series 4-Channel 1080p HD Surveillance System with 1TB DVR & 4x Wireless Outdoor Cameras, White

SKU: LRLH7041TC4W

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-12-18T09:08:10

Rated 5 out of 5

as described

Works as described, nice product.

VERNON O.

2019-07-10T13:04:47

Rated 4 out of 5

Works as it should

I wanted 4 wireless and two wired but didn't want to go to brand X. So this is my second choice. I own a Flir infrared handheld camera so I expected similar quality and so far so good. In my case plugging in all 4 cameras to 120V was no problem so I like not having to worry about charging batteries. Cameras come already registered 1-4 and since they are not marked as such you may have to move two if you want to feature one spot on your phone app. Channel 1 is on top and larger in the Live mode. My complaints, like everything else you buy today there is no instruction book just a quick setup. Also, setscrews on cameras are in a bad spot making it difficult to level camera. Overall setup went pretty good. I still need to figure out how capture an event should I need to. They give you everything need except a monitor. They recommend a 1080p TV and include an HDMI cable for it. I used an old 15 inch flatsreen 720p and had to pick up a VGA cable. I'm very pleased with this system and the price was excellent and I would purchase it again.

DONALD M.

Lorex LH070 Series Specifications

System
  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous View, Record, Playback, Backup & Remote Monitoring

  • Number of Channels

    4 channels

Inputs/Outputs

Jump to...
  • Video IN

    4 Channels (via USB)

  • Video OUT

    1x HDMI, 1x VGA

  • VGA OUT

    Yes

  • HDMI

    Yes

  • USB Port

    2x USB 2.0 (one on front panel, one on back panel)

  • Video Output Resolution

    1920 x1080, 1440 x900, 1280 x1024, 1280 x720, 1024 x768

  • PTZ Control

    PTZ cameras not supported

Display

Jump to...
  • Live Display

    1, 4

  • Live Display Speed

    Max 10fps per channel

  • OSD

    Camera Title, Time, Motion Detection, Recording Status

  • System Navigation

    USB Mouse, IR Remote Controller

  • Sensitivity Levels

    3

  • Firmware Upgrade

    Automatic over the Internet & via USB device and network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

Recording

Jump to...
  • Video Compression

    H.264

  • Audio Compression

    None

  • Recording Resolution Setting

    1080p (1920 x1072)

  • Recording Quality Control

    3 levels (High / Medium / Low)

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by channel

  • Pre Recording

    Max. 10 seconds

  • Post Recording

    Max. 5 minutes

  • Reliability

    Watch-Dog, Auto-recovery after power failure

  • Covert Video

    No

Playback

Jump to...
  • Playback Channel

    1-4 Adjustable

  • Playback Speed

    Variable: Max 16 x

  • Playback Players

    Backup Player

  • Search

    By time & event

  • Log Search

    Up to 4,000 lines for system, configuration changes, motion/alarm detected, account, record and storage

  • Audio Play

    No

Storage & Archive

Jump to...
  • Storage

    1 x HDD (SATA)

  • Maximum Capacity

    Up to 1 x 4TB HDD

  • Backup Media

    USB Flash Drive & USB External HDD (eSATA)

  • Backup File Format

    H.264 / AVI

  • Cloud Connection

    FLIR Secure

  • Supported Operating Systems

    Windows
    Mac OSX

  • Remote Software

    Client Software (PC) & Safari (Mac)

  • Email Notification

    Text with snapshot

  • Instant Smart Phone

    iPad, iPhone, Android

  • DDNS

    Free Lorex DDNS

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by User

  • Network Protocol

    TCP/IP / HTTP / IPv4 / RTSP / SMTP / NTP / DHCP / DNS / DDNS / IP Filter

  • Network Interface

    10/100-Base-TX, RJ-45

  • Network Speed Control

    256Kb - 2Mbps

General

Jump to...
  • Operating Temperature

    14 Degree - 131 Degree F / -10 Degree - 55 Degree C

  • Humidity

    10 - 90% RH

  • Power Consumption

    Approx. 10W (no HDD included)

  • Supply Voltage

    100VAC-240VAC, 12VDC , 2A, 50/60Hz

  • Dimensions

    11.8 x 9.9 x 2.4" (300 x 251 x 61mm)

  • Weight

    3.1 lb (1.4kg)

About Lorex LH070 Series

Experience full 1080p HD video without running video cables with the next generation of high definition wireless security. This system features 4 1080p HD wireless video security cameras and a powerful DVR for the perfect blend of wireless convenience with high-capacity storage. A security-grade hard drive is pre-installed, allowing you record days of high definition footage. It's easy to get up and running with Do-It-Yourself setup, and our free FLIR Secure remote monitoring apps for smartphones, tablets and computers help you stay connected to your world from anywhere in the world. Maintain vigilance with wireless HD video in your corner.

FLIR Secure apps for smartphones & tablets
Introducing FLIR Secure - our exclusive remote access technology for viewing live and recorded video from your security cameras on your smartphone, tablet or computer. The FLIR Secure mobile app is easy to use and ready in 3 steps - just download the free app for iPhone, iPad or Android, scan the NVR's QR code, and start viewing your cameras from anywhere with no recurring fees. You can also use a web browser on your PC or Mac computer to access your security cameras through the FLIR Secure web viewing portal for peace of mind no matter where in the world you are.

RapidRecap - see the day in a minute
RapidRecap compiles hours' worth of activity into a short video summary. It connects you to all the day's events in a flash. See your kids coming home, your garbage being collected, your pets getting up to their usual mischief - all in an instant! Timestamping of moving objects tells you what happened and when. Experience the rapid way to stay connected and start to see more while watching less.

1080p HD wireless video
Experience the perfect blend of simple setup and high performance with 1080p wireless video security cameras. No need to run video cables - our high definition security cameras transmit 1080p HD video wirelessly to the weatherproof receiver connected to the DVR. High definition 1080p (1920 x1080) recording resolution ensures crisp live-viewing and recording, and our exclusive SignalGuard technology detects low signal strength and reconnects automatically to ensure you have a reliable video feed at all times.

Motion detection & other smart monitoring
Even the most vigilant homeowners just don't have time to review hours of security footage. Our security systems come loaded with advanced features to help you monitor smarter. Motion detection comes as a standard feature, allowing you to save hard drive space by only recording scenes of movement. You can also choose to receive email alertsof motion events with snapshot attachments, or push notifications sent to your smartphone or tablet.

Crystal clear night vision
Reliable security means protection at all times, including all through the night. First-class IR LED night vision technology and an integrated automatic Infrared Cut Filter (ICR) ensure detailed footage with accurate color representation in all lighting conditions. Clearly identify objects up to 130ft (40m) away in regular nighttime conditions and up to 90ft (27m) away in total darkness. Never lose sight of the things that matter most with clear viewing around the clock.

Weatherproof wireless cameras
Wireless convenience combined with rugged durability makes one of our toughest wireless security cameras to date. Our robust, weatherproof cameras are IP66-rated to stand up against the elements. Fortified design makes this camera perfect for outdoor surveillance, while the compact housing is suitable for home monitoring applications as well. The LWU3720 Series wireless receiver is also weatherproof rated for outdoor placement for even better wireless range outdoors.

Security-grade hard drive
Record crisp 1080p HD video to the 1TB pre-installed security grade hard drive for reliable footage at all times. The 100% duty-cycle hard drive is designed for surveillance, providing reliable storage for weeks or even months of security footage. Customize the recording settings to fit your needs. Record at 1080p HD (1920 x1080) for the highest video quality, or set to a lower resolution for improved recording efficiency.

Flexible installation
Variety of installation options are available.

HDTV Ready
High definition interface with HDMI output for easy connection to a TV

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams

Lorex LH070 Series Features

  • Digital Video Recorder Features
  • HD 1080p recording resolution
  • Tablet / smartphone viewing and playback on iOS and Android devices
  • Easy remote connectivity with FLIR Secure - 3 step setup
  • HDMI cable included for simple connection to HDTVs
  • Record to included security grade hard drive with no recurring fees
  • H.264 video compression offers reduced file size and network strain for remote viewing
  • Continuous, scheduled, and motion recording
  • Pentaplex operation - view, record, playback, back up & remotely control the system simultaneously
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • Advanced mobile apps with live viewing, playback & video recording
  • PC and Mac compatible
  • Instant email alerts with snap shot attachment
  • Accurate time stamps with NTP & Daylight Savings Time
  • Automatic firmware upgrades over the Internet ensures your system is always up to date
  • Flexible DVR positioning (Horizontal or Vertical)
  • Wireless 1080p HD Video Security Camera Features
  • 1080p HD wireless video
  • SignalGuard technology continuously monitors the wireless signal and automatically reconnects upon detecting low signal strength
  • Compatible with Lorex MPX recorders
  • Adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces conflicts with competing signals
  • Simple installation. No video cables required
  • Auto-mechanical infrared camera filter achieves accurate color reproduction in varying lighting conditions
  • Long range night vision up to 130ft (40m) / 90ft (27m)
  • Vandal-resistant Polycarbonate housing with cable pass-through mounting bracket
  • Weatherproof (IP66) cameras and receiver for superior performance and extended range outdoors
  • High gain antennas provide up to 160ft (50m) indoor / 500ft (152m) outdoor wireless range

Key Features

  • Digital Video Recorder Highlights
  • HD 1080p recording resolution
  • Tablet / smartphone viewing and playback on iOS and Android devices
  • Easy remote connectivity with FLIR Secure - 3 step setup
  • Wireless 1080p HD Video Security Camera Highlights
  • 1080p HD wireless video

What's in the box:

  • 4-Channel HD DVR with 1TB Hard Drive
  • 4x 1080p HD Video Cameras
  • Weatherproof Receiver
  • Camera & Recorder Power Adapters
  • HDMI Cable
  • Ethernet Cable
  • Remote Control
  • Mouse
  • Quick Start Guides
  • Lorex 2 Year Limited Warranty
