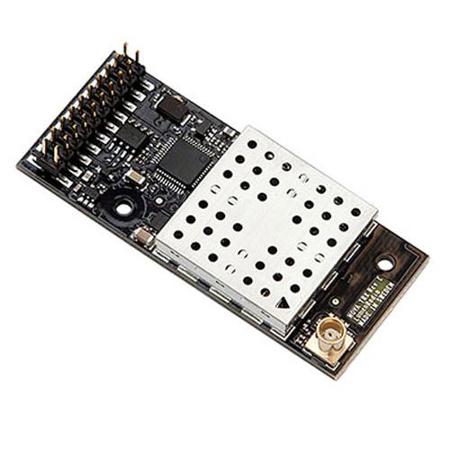

LumenRadio CRMX OEM DMX Receiver for OEM Units Only
See all Lumen Radio items

Lumen Radio CRMX OEM DMX Receiver for OEM Units Only

SKU: LROEGRX1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lumen Radio CRMX OEM Specifications

Supported Protocol

Supported Protocol

Jump to...

  • USITT DMX-512 (1986 & 1990) and DMX512-A

    Yes

  • RDM ANSI E1.20

    No

  • Firmware Upgrade

    Multiple Options

DMX Interface

Jump to...

  • Number Of Universes Supported

    1

  • Full DMX Fidelity And Frame Integrity

    Yes

  • Error Correction And Packet Recovery

    Yes

  • Frame Synchronization

    Less than 0.01 ms

  • End-To-End DMX Latency

    Less than 5 ms

  • Auto Sensing Of DMX Frame Rate & Size

    Yes

  • Supported DMX Frame Rates

    1 - 830 Hz

  • Number Of DMX Channels Supported

    0 - 512

  • Loss Of DMX Input Behavior

    DMX driver output will go into high impedance state

  • W-DMX G2/G3/G4 Compatibility

    Yes

Power

Jump to...

  • Low Voltage Input

    5VDC regulated or 6-12VDC / 300mA max

RF Characteristics

Jump to...

  • Modes Of Operation

    Receiver

  • Automated Cognitive Coexistence

    Yes

  • Dynamic Adaptive Frequency Hopping

    Yes

  • Recoverable Radio Packet Error Rate

    30%

  • Operational Frequency Range

    2402-2480 MHz

  • RF Modulation

    GFSK

  • Sensitivity At 0.1% Packet Error Rate

    -96 dBm

  • Link Range

    Up to 1000m (High power mode using 2 dBi antennas in urban area)

  • Recovery Time Upon Loss Of Radio Link

    Less than 1s

Approvals

Jump to...

  • Approvals

    FCC: 15.247&68 Class B; Canada ICES 003 CE; EN 301 489-1; EN 301 489-3; EN 300 328;
    SS-EN 61547:2009; EN 60 950; SRRC - China; ARIB STD-T66 - Japan

Environment

Jump to...

  • Operating Temperature Range (Ambient)

    -4 to 158 Degree F (-20 to +70 Degree C)

  • Humidity

    0-90% non-condensing

Connectors

Jump to...

  • Antenna Connector

    MCX

  • Integral Antenna Option

    Yes

  • DC and Data Connector

    Standard 0.1 x 0.1" (2.54 x 2.54mm) 2 x 10 position header

Physical

Jump to...

  • Dimensions (W x H x D)

    1.1 x 0.47 x 2.6" (27.5 x 12 x 65mm)

  • Weight

    0.02 oz (10g)

About Lumen Radio CRMX OEM

CRMX OEM DMX PCB is the OEM version of the CRMX Nova DMX products. It supports one full DMX universe of up to 512 channels at maximum refresh rate. It is available as a DMX receiver, DMX transmitter or DMX transceiver with Flex functionality that can act either as a receiver or as a transmitter, allowing the user to switch between modes on demand.

The CRMX OEM DMX is based on LumenRadio's advanced CRMX technology, hence you get all the advanced features such as automated cognitive coexistence, DMX fidelity, low latency, strong encryption, etc, all packed together on one small PCB.

To fit in to old wireless systems with legacy equipment the CRMX OEM DMX is compatible with W-DMX transmitters. However when using it in this way you won't get the benefits of the advanced CRMX technology.

The CRMX OEM DMX is easy to integrate into your products, but if you run into problems anyway, LumenRadio's engineers will give the support you need.

CRMX Nova utilizes the international license free ISM band (2.4GHz).

Lumen Radio CRMX OEM Features

  • Support for DMX512-A
  • Compatible with W-DMX transmitters
  • Up to 1000 meter link range
  • 5 ms latency
  • 128 bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • MCX antenna connector
