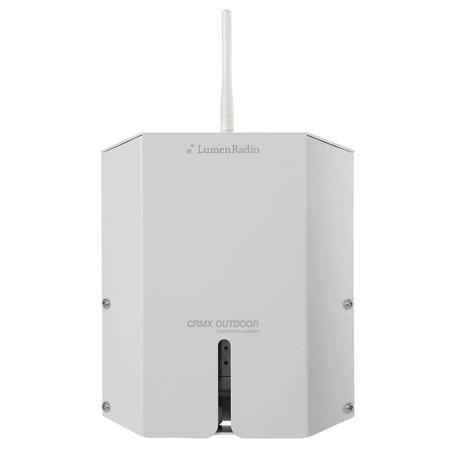

Lumen Radio CRMX Outdoor Flex Single Universe Transmitter/Receiver RDM, N-Female Connector

SKU: LRONRFX1CRMX MFR: LRONRFX1CRMX
Earn VIP Reward Points

Key Features

  • Experience robust wireless DMX with the Lumen Radio CRMX transmitter/receiver.
  • Achieve reliable signal transmission up to 1000m with this wireless system.
  • Enjoy seamless integration with Art-Net & Streaming ACN lighting protocols.
  • This outdoor-rated wireless microphone system is built to withstand the elements.
  • Effortlessly manage DMX channels with full fidelity & error correction features.
  • Ensure low latency performance, ideal for live events needing real-time control.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lumen Radio CRMX Specifications

Supported Protocol

Supported Protocol

Jump to...
  • USITT DMX-512 (1986 & 1990) and DMX512-A

    Yes

  • Art-Net I, II & 3, ETCNet 2 & 3

    Yes, input any protocol and output any protocol (Strand ShowNet, Streaming ACN, Pathport, KiNet V1 & V2)

  • RDM ANSI E1.20

    Yes

  • Firmware Upgrade

    Ethernet

  • DALI (Convert from DMX)

    Yes, Broadcast/16 Groups 64 Short Addresses

  • Work with CRMX Supernova RDM Controller

    Yes

DMX Interface

Jump to...
  • Number of universes supported

    1

  • Full DMX fidelity and frame integrity

    Yes

  • Error correction and packet recovery

    Yes

  • Frame synchronization

    Less than 0.01 ms

  • End-to-end DMX latency

    Less than 5 ms

  • Auto sensing of DMX frame rate and size

    Yes

  • Supported DMX frame rates

    1 - 830 Hz/ 0.8-7352 Hz

  • Number of DMX channels supported

    0 - 512

  • Loss of DMX input behavior

    DMX driver output will go into high impedance state in receiving and repeating mode. Timeout after 1.25s in transmitting mode

  • W-DMX G2/G3/G4 Compatibility

    Yes, in receive mode

  • High voltage input

    100-240VAC / 47-70Hz /0.12A / 10W

  • Transient protected power inputs

    Yes

RF Characteristics

Jump to...
  • Modes of operation

    Transmitter, Receiver and Repeater

  • Automated Cognitive Coexistence

    Yes

  • Dynamic adaptive frequency hopping

    Yes

  • Recoverable Radio Packet Error Rate

    30%

  • Operational frequency range

    2402-2480 MHz

  • RF Output In High Power Mode

    300 mW (25 dBm)

  • RF Output In Normal Power Mode

    100 mW (20 dBm)

  • RF Output In Low Power Mode

    35 mW (15 dBm) or 10 mW (10 dBm)

  • RF Modulation

    GFSK

  • Sensitivity at 0.1% Packet Error Rate

    -96 dBm

  • Tested link range

    Up to 1000m

  • Recovery time upon loss of radio link

    Less than 1s

Approvals

Jump to...
  • Approvals

    FCC: 15.247&68 Class B
    Canada ICES 003 CE
    EN 301 489-1
    EN301 489-3
    EN 300 328
    SS-EN 61547:2009
    EN 60 950
    SRRC -China
    ARIB STD-T66 - Japan

Environment

Jump to...
  • Operating temperature range (ambient)

    -4 Degree F to 122 Degree F (-20 Degree C to +50 Degree C)

  • Humidity

    Ingression protection, submerged down to 1m

Connectors

Jump to...
  • Antenna connector

    N female

  • DMX connectors

    Pluggable terminal strip, Phoenix MSTB 2.5

  • DALI connector

    Pluggable terminal strip, Phoenix MSTB 2.5

  • AC input

    13AWG Pluggable Terminal Strip

Physical

Jump to...
  • Enclosure

    IP67 Vandal proof housing

  • Dimensions (W x H x D)

    7.9 x 9.6 x 3" (201 x 244 x 78mm)
    Excluding Antenna

  • Weight

    3.5 lb (1.6kg)

About Lumen Radio CRMX

Make your outdoor audio experiences seamless with the CRMX Outdoor Flex Single Universe Transmitter/Receiver RDM, N-Female Connector. This innovative product, brought to you by the reputable Lumen Radio, is the epitome of wireless DMX and RDM technology, designed specifically for outdoor installations.

This advanced device can be configured as a transmitter, repeater, or receiver for one DMX/RDM universe, offering full refresh rate with up to 512 channels. It's an adaptation of the esteemed CRMX Nova product line, ensuring compatibility with other CRMX DMX/RDM products.

The CRMX Outdoor Flex stands out as the first RDM enabled wireless light control product that is both waterproof and vandal-proof, making it an ideal choice for any outdoor installation. Its unique design features an IP67 rated housing and a vandal-proof mounting cover, ensuring it can withstand years of exposure to weather elements.

For those with legacy equipment, the CRMX Outdoor Flex offers compatibility with W-DMX transmitters when configured in receiver mode. However, to fully experience the benefits of advanced CRMX technology, it's recommended to use it in its intended modes.

The CRMX Outdoor Flex offers three modes of operation. In Transmitter Mode, it functions as an Ethernet-enabled DMX/RDM transmitter, supporting Streaming ACN, ArtNet, ETCNet 2 & 3, Pathport, and more. In Repeater Mode, it extends the wireless DMX and RDM signal range, enabling more complex network structures. In Receiver Mode, it can be used together with any other CRMX wireless RDM and wireless DMX products.

Operating on the international license-free ISM band (2.4GHz), the CRMX Outdoor Flex Single Universe Transmitter/Receiver RDM, N-Female Connector is a reliable, high-quality solution for your outdoor wireless audio transmission needs.

Lumen Radio CRMX Features

  • Single Universe Flex unit - Transmitter, Receiver or Repeater
  • DMX512-A and RDM support
  • Power over Ethernet support
  • Ethernet or wired DMX input/output
  • Compatible with W-DMX transmitters
  • Up to 1000 meter link range
  • Connects to SuperNova
  • 5 ms latency
  • 128 bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • IP67 classification
  • N-type antenna connector
  • Vandal proof casing

Product Documents

User Manual

Key Features

  • Experience robust wireless DMX with the Lumen Radio CRMX transmitter/receiver.
  • Achieve reliable signal transmission up to 1000m with this wireless system.
  • Enjoy seamless integration with Art-Net & Streaming ACN lighting protocols.
  • This outdoor-rated wireless microphone system is built to withstand the elements.
  • Effortlessly manage DMX channels with full fidelity & error correction features.
  • Ensure low latency performance, ideal for live events needing real-time control.

What's in the box:

  • CRMX Outdoor Flex Single Universe Transmitter/Receiver RDM
  • 2 dBi N Antenna
