LumenRadio CRMX Outdoor RX Single Universe RDM Receiver, N-Female Connector
See all Lumen Radio items

Lumen Radio CRMX Outdoor RX Single Universe RDM Receiver, N-Female Connector

SKU: LRONRRX1CRMX MFR: LRONRRX1CRMX
Be the first to review this itemAsk a Question
$1,044.00
$1,160.00
Save: $116 (10%)
OR
$87/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience robust wireless DMX lighting control with this Lumen Radio receiver.
  • Achieve reliable signal transmission with automated cognitive coexistence technology.
  • Enjoy full DMX fidelity with error correction, ensuring seamless performance every time.
  • This outdoor-rated receiver is housed in a vandal-proof IP67 enclosure for durability.
  • Easily manage lighting setups with support for USITT DMX-512 and RDM protocols.
  • Benefit from low latency (less than 5ms) for synchronized lighting and effects.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lumen Radio CRMX Outdoor Specifications

Supported Protocol

Supported Protocol

Jump to...

  • USITT DMX-512 (1986 & 1990) and DMX512-A

    Yes

  • Art-Net I, II & 3, ETCNet 2 & 3

    No (Strand ShowNet, Streaming ACN, Pathport, KiNet V1 & V2)

  • RDM ANSI E1.20

    Yes

  • Firmware Upgrade

    TIA/EIA-485

  • DALI (Convert from DMX)

    Yes, Broadcast/16 Groups 64 Short Addresses

  • Work with CRMX Supernova RDM Controller

    Yes

DMX Interface

Jump to...

  • Number of universes supported

    1

  • Full DMX fidelity and frame integrity

    Yes

  • Error correction and packet recovery

    Yes

  • Frame synchronization

    Less than 0.01 ms

  • End-to-end DMX latency

    Less than 5 ms

  • Auto sensing of DMX frame rate and size

    Yes

  • Supported DMX frame rates

    1 - 830 Hz

  • Number of DMX channels supported

    0 - 512

  • Loss of DMX input behavior

    DMX driver output will go into high impedance state

  • W-DMX G2/G3/G4 Compatibility

    Yes

Power

Jump to...

  • High voltage input

    100-240VAC / 47-70Hz /0.12A / 10W

  • Transient protected power inputs

    Yes

RF Characteristics

Jump to...

  • Modes of operation

    Receiver

  • Automated Cognitive Coexistence

    Yes

  • Dynamic adaptive frequency hopping

    Yes

  • Recoverable Radio Packet Error Rate

    30%

  • Operational frequency range

    2402-2480 MHz

  • RF Output In High Power Mode

    300 mW (25 dBm)

  • RF Output In Normal Power Mode

    100 mW (20 dBm)

  • RF Output In Low Power Mode

    35 mW (15 dBm) or 10 mW (10 dBm)

  • RF Modulation

    GFSK

  • Sensitivity at 0.1% Packet Error Rate

    -96 dBm

  • Tested link range

    Up to 1000m

  • Recovery time upon loss of radio link

    Less than 1s

Approvals

Jump to...

  • Approvals

    FCC: 15.247&68 Class B
    Canada ICES 003 CE
    EN 301 489-1
    EN301 489-3
    EN 300 328
    SS-EN 61547:2009
    EN 60 950
    SRRC -China
    ARIB STD-T66 - Japan

Environment

Jump to...

  • Operating temperature range (ambient)

    -4 Degree F to 122 Degree F (-20 Degree C to +50 Degree C)

  • Humidity

    Ingression protection, submerged down to 1m

Connectors

Jump to...

  • Antenna connector

    N female

  • DMX connectors

    Pluggable terminal strip, Phoenix MSTB 2.5

  • DALI connector

    Pluggable terminal strip, Phoenix MSTB 2.5

  • AC input

    13AWG Pluggable Terminal Strip

Physical

Jump to...

  • Enclosure

    IP67 Vandal proof housing

  • Dimensions (W x H x D)

    7.9 x 9.6 x 3" (201 x 244 x 78mm)
    Excluding Antenna

  • Weight

    3.5 lb (1.6kg)

About Lumen Radio CRMX Outdoor

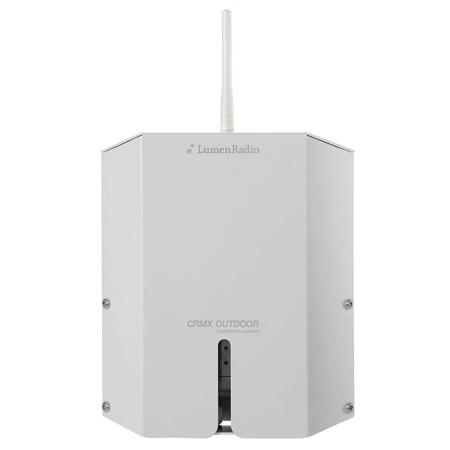

Take your outdoor events to the next level with the CRMX Outdoor RX Single Universe RDM Receiver, a sleek and modern device designed by the reputable brand, Lumen Radio. This sophisticated receiver is specifically engineered for outdoor use, making it an ideal choice for live events, concerts, and performances in remote or off-grid locations.

This elegant receiver supports one full RDM/DMX universe of up to 512 channels at maximum refresh rate, ensuring seamless transmission of wireless signals from devices like wireless microphones or other audio equipment. It's a part of the CRMX Nova product line, known for its high-quality and reliable performance.

The CRMX Outdoor RX Single Universe RDM Receiver is the world's first RDM enabled wireless light control product that is both waterproof and vandal-proof. Its unique combination of an IP67 rated housing and a vandal-proof mounting cover ensures it can withstand years of weather forces, making it a durable choice for any outdoor installation.

This stylish receiver is also compatible with W-DMX transmitters, allowing it to fit into old wireless systems with legacy equipment. However, to fully experience the benefits of advanced CRMX technology, it is recommended to use this receiver with a CRMX Outdoor Flex, CRMX Nova TX, CRMX Nova TX2, CRMX Nova TX2 RDM, or any other CRMX transmitter.

Operating in the international license-free ISM band (2.4GHz), the CRMX Outdoor RX Single Universe RDM Receiver offers a seamless and uninterrupted performance. Elevate your outdoor audio experience with this sophisticated and reliable device.

Lumen Radio CRMX Outdoor Features

  • Single Universe Receiver
  • DMX512-A and RDM support
  • Compatible with W-DMX transmitters
  • Up to 1000 meter link range
  • Connects to SuperNova
  • 5 ms latency
  • 128 bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • IP67 classification
  • N-type antenna connector
  • Vandal proof casing

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience robust wireless DMX lighting control with this Lumen Radio receiver.
  • Achieve reliable signal transmission with automated cognitive coexistence technology.
  • Enjoy full DMX fidelity with error correction, ensuring seamless performance every time.
  • This outdoor-rated receiver is housed in a vandal-proof IP67 enclosure for durability.
  • Easily manage lighting setups with support for USITT DMX-512 and RDM protocols.
  • Benefit from low latency (less than 5ms) for synchronized lighting and effects.

What's in the box:

  • CRMX Outdoor Single Universe RDM Receiver
  • 2 dBi N Antenna
