Linux (embedded)
Simultaneous View, Record, Playback, Backup & Remote Monitoring
8 Channels
8x 1Vp-p, CVBS, 75ohms, BNC
No
Yes
Yes
1 lines IN (RCA)
1 line OUT (RCA)
1 at the back, 1 at the front
No
No
HDMI: 3840x2160; 2560x1440; 1920x1200; 1600x1200; 1680x1050; 1920x1080; 1440x900; 1280x1024; 1280x720; 1024x768
RS-485 Pelco D & P Protocol
1, 4, 8
240 NTSC, 200 PAL
ON/OFF
USB Mouse, IR Remote Controller, Front Panel
Fixed Grid 396 pixels (22x18) NTSC/PAL
100
Automatic over the Internet & via USB device and Network
By user group
Auto time sync by NTP server
H.264+
G.711
4K/8MP (3840x2160), 2K/4MP (2688x1520), 3MP (2304x1296), 1080p (1920x1080), 720p (1280x720), 960x480, 704x480, 352x480, 704x240, 352x240, 176x120
4K at 7fps (per ch), 4MP at 15fps (per ch), 3MP/1080p/720p/960H: 30fps (NTSC)
Per camera for different resolutions
6 levels
By hour, by day, by recording mode, by motion, by channel
Max. 30 Secs
Max. 5 Minutes
Watch-Dog, Auto-recovery after power failure
Yes
1 / 4 / 8
Variable Max 4x
Backup Player
By Time/Date & Motion Event
Up to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage
Yes
Up to 1 HDD (SATA)
1TB preinstalled
Up to 1x 8TB
USB Flash Drive & HDD
DAV/ASF file
Lorex Cloud Connectivity
Windows
Mac OSX
Client Software (PC) & Safari (Mac)
Text with snapshot
iPad, iPhone, Android apps
No
Full setup configuration over network
Programmable by User
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
10/100-Base-TX, RJ-45
Max 64Mbps
Approx. 10 watts (no HDD included)
100VAC-240VAC, 12VDC, 2A, 50/60Hz
14 to 130 deg. F (-10 to 54 deg. C)
10 to 90% RH
4K (8MP), 1/2" CMOS
NTSC / PAL
H: 3840 V: 2160
4K(8MP) at 15fps
Progressive
Internal
>65dB (AGC Off)
AES
1/3 (1/4) to 1/100,000 sec.
0.01 Lux without IR LED
0 Lux with IR LED
MPX
3.6mm F1.6 / Fixed
87 deg. (Horizontal)
BNC Type
12 pieces / 850nm
In ambient lighting: Up to 135' (41.15m)
Total darkness: 90' (27.43m)
12V DC +/-10%
Max. 415mA (w/IR), 5.0W
-22 to 140 deg. F (-30 to 60 deg. C)
<90% RH
Weatherproof (IP67)
NVR: 12.8 x 10.0 x 2.2" (32.51 x 25.40 x 5.59cm)
NVR: 3.3 lbs (1.50kg) (without hard drive)
Camera: 0.50 lbs (0.23kg) (including stand)
695529016054
Monitor your property like never before with this outstanding 4K Ultra HD security system from Lorex. This top-of-the-line system includes our cutting-edge 8-channel 4K HD DVR with 4 bullet security cameras featuring 4K (8MP) HD resolution. The included weatherproof cameras deliver exceptional image quality day or night, with Color Night Vision in low light conditions and long-range IR night vision in complete darkness. Everything you need for setup is included, giving you professional-grade security protection for your home or business.

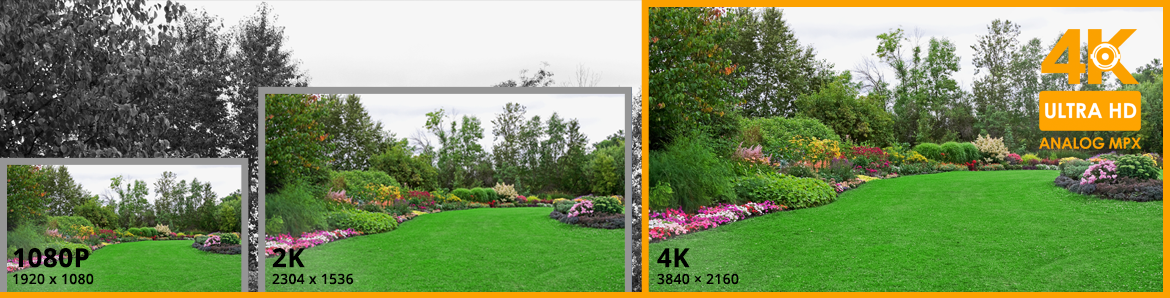

Capable of recording a 4K pixel resolution of 3840 × 2160, this heightened resolution will produce stunningly detailed video that will leave nothing to the imagination. It will also allow for greater digital zooms so you can see further into the distance. This camera also comes with a wide 87° angle lens that is perfect for large areas or doorways.

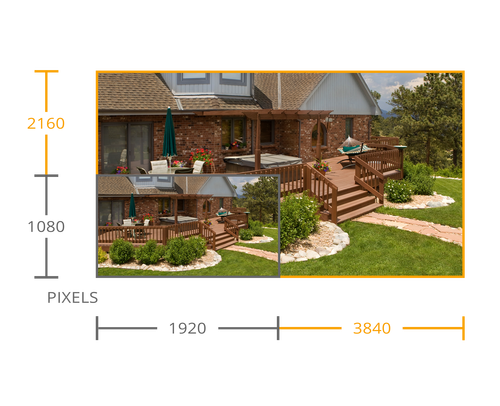

A 1080p security DVR records at a pixel ratio of 1920 × 1080 - that's just over 2 million pixels. This DVR, records at a pixel ratio of 3840 × 2160, which is well over 8 million pixels. That's over 4× the total amount of pixels of a 1080p DVR! So if an incident does occur on your property, 4K resolution will offer the best chance to capture useful evidence such as distinct facial features.
Quickly and easily view your security system remotely from your smartphone or tablet using our easy-to-use FLIR Cloud™ app. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor or review. You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
The 4K Ultra HD bullet camera provides Color Night Vision™ in low light conditions, Smart IR black and white night vision up to 135ft (41m) in ambient night time conditions, and full black and white night vision up to 90ft (28m) in total darkness. Smart IR Imaging technology and day/night mode provide superior enhanced low light performance, and the integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions. See clearly in complete darkness, and be confident knowing that detailed images are being recorded even on the darkest nights.
Install this durable security camera wherever you need it most - indoors or outdoors. It is manufactured to be fully weatherproof (rated IP67). So you can count on all-season security monitoring that never stops working.

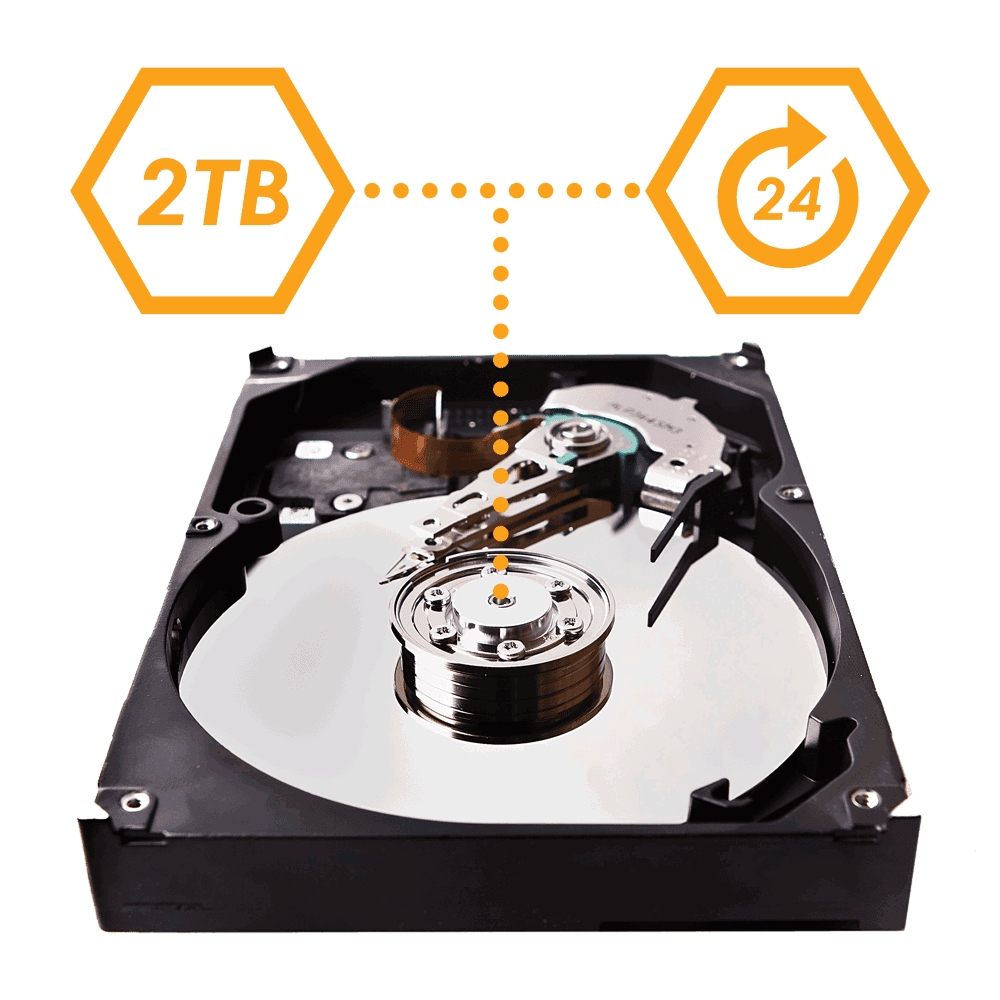

DVRs such as this are capable of working 24/7 without a break. Thankfully, so is the 2TB hard drive within it. Lorex uses security certified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 8TB in size.
• True 4K Ultra HD recording
• 24/7 security-grade pre-installed hard drive
• Continuous, scheduled and motion recording
• H.264+ video compression reduces data bandwidth requirements for efficient data storage, reduced network load for easy remote connectivity
• HDMI output (HDMI cable included) for simple connection to HD TVs
• Accurate time stamps with NTP & daylight savings time
• Click and drag digital zoom in live view and playback
• 2 video outputs (HDMI & VGA) to connect multiple monitors
• Instant USB backup of live video from selected camera
• Automatic firmware upgrade over the Internet ensures your system is secure and up to date
• FLIR Cloud app with 3-Step setup connects all your cameras and systems from any iOS or Android smartphone and tablet
• Motion push notifications and email alerts
• Dual streaming to conserve bandwidth
• Backward compatible with standard analog cameras
