Lorex 16-Channel 2K Security DVR System, w/8 Super Resolution 4MP Color NightVision HDBullet Cameras w/ 2TB HDD installed

SKU: LRX2162TC8B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Rob B : Does system have remote viewing access on iPhone & iPad?JAE THOMAS S : It does, you can access the system on your phone or tablet using the Lorex Cirrus App
Shopper : Why Did You Choose This?FADI'S M : brand and priceAmar H : Thats the best cameras in the worldFRED L : sale

Reviews about this item

Review Summary

2022-09-24T20:00:00

Rated 5 out of 5

Easy To Use

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Charles J.

2022-09-12T20:00:00

Rated 5 out of 5

Love it ! Just what

Love it ! Just what I expected

Carlos G.

2022-04-13T15:45:36

Rated 5 out of 5

Great

Like it very much

SULEMAN L.

2022-02-06T19:00:00

Rated 5 out of 5

Easy setup

The process to set it up was very easy

Jose F.

2022-01-10T19:00:00

Rated 5 out of 5

Purchase of replacement DVR

It is an upgrade to the previous DVR replacement, without incurring additional costs and changing of wires in the attic. I am pleased with the purchase. thanks to the sales team that assisted me in selecting this replacement unit. I have been with Lorex for over 10 years, and I really like their products and technical assistance.

Francisco P.

2021-12-07T19:00:00

Rated 5 out of 5

Everything is good.

Everything is good.

Cleveland P.

2021-11-30T19:00:00

Rated 5 out of 5

Very Nice

I thought my old one was broken but I got it going again after I bought this new replacement DVR with mouse. It's perfect. I just gave away my old one to family. It updates automatically, nicer interface the price was decent, and all my previously installed cameras blended into the new DVR flawlessly. I've always liked these affordable DVR Lorex cameras systems. Back in the day they were thousands of dollars. What more could I say.

Andrew C.

2021-03-09T19:00:00

Rated 5 out of 5

It?s works way better than the one I have.

John

2021-03-07T19:00:00

Rated 5 out of 5

Over the years, I've owned several camera systems for my business. This one is quite intuitive to set up. My only complaint is the adjustment on the cameras being set screws and a little cumbersome at times - you get the hang of it after a bit - I'd like to see a ball joint for adjustments, but this one does the trick eventually (let's face it, they're only being set up once). The video quality is top notch and the night vision is better than expected. Ran great out of the box with the exception of one wire which would have been annoying if I didn't have an extra, but I had an extra, so it wasn't that big of a deal. I'll eventually talk to customer service and see if I can get the wire replaced - I will update the review if I have a poor experience there, but I expect no issues - let's leave that part of it as no news is good news.

Wondering

2021-03-05T19:00:00

Rated 5 out of 5

Great system awesome price. Purchased from sames club. Very happy with this system

Kieth

2020-12-10T14:03:08

Rated 5 out of 5

Very satisfied with product.

I am amazed at the quality of the pictures. I definitely recommend this package.

DAVID H.

2020-11-05T15:09:47

Rated 5 out of 5

Very impressed

Beautiful cameras with very clear views and so many options! I feel so safe now

CHRISTINA M.

2020-05-31T20:00:00

Rated 5 out of 5

I researched many systems before purchasing this unit. I wanted a long-term solution for home surveillance that I did not have to rely on cloud technology for. All components of the system are quality. The only feedback I have it the quality of the CAT5 cables - they are thin and feel like that are not going to last long. However, the weatherproof connection at the end of the cable is a great feature! I ran the cables in a way that will allow for simple replacement if/when they fail over time. The video quality of outstanding! The system itself has been easy to use, but there are a few settings that I will need to refer to YouTube for guidance on. Spend the money and invest in this system for your home or office immediately.

PalmettoCJ

2019-12-29T19:00:00

Rated 4 out of 5

This system was very easy to install and operate. Amazing clarity, even in the dark!

JCS

Lorex 16-Ch Security System Specifications

LHA42162T 16-Ch DVR: System

LHA42162T 16-Ch DVR: System

Jump to...
  • Operating System

    Linux (embedded)

  • Pentaplex

    Simultaneous View, Record, Playback, Backup & Remote Monitoring

  • Number of Channels

    16-Channel

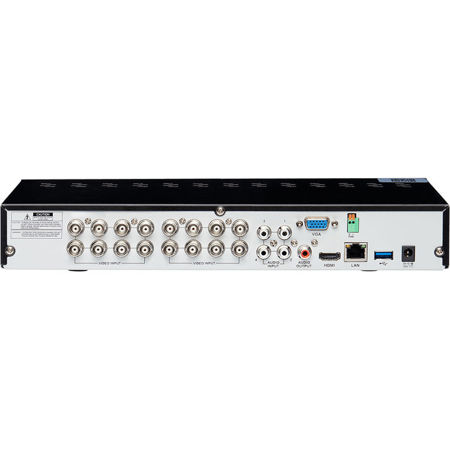

LHA42162T 16-Ch DVR: Inputs/Outputs

Jump to...
  • Video IN

    4/8/16 x 1Vp-p, CVBS, 75ohms, BNC

  • Video OUT

    No

  • VGA OUT

    Yes

  • HDMI

    Yes

  • Audio IN

    4 lines IN (RCA)

  • Audio OUT

    1 line OUT (RCA)

  • USB Port

    1 at the back, 1 at the front

  • Alarm IN

    None

  • Alarm OUT

    None

  • Video Output Resolution

    HDMI: 3840 x2160; 2560 x1440; 1920 x1200; 1600 x1200; 1680 x1050; 1920 x1080; 1440 x900; 1280 x1024; 1280 x720; 1024 x768

  • PTZ control

    RS-485 Pelco D & P Protocol

LHA42162T 16-Ch DVR: Display

Jump to...
  • Live Display

    1, 4, 8, 9, 16

  • Live Display Speed

    480 NTSC, 400 PAL

  • OSD

    ON/OFF

  • System Navigation

    USB Mouse, IR Remote Controller, Front Panel

  • Motion Area Setting

    Fixed Grid NTSC (44 x30) / PAL (44 x36)

  • Sensitivity levels

    8

  • Firmware Upgrade

    Automatic over the Internet & via USB device and Network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

LHA42162T 16-Ch DVR: Recording

Jump to...
  • Video Compression

    H.264

  • Audio Compression

    G.711

  • Recording Resolution

    NTSC: 4MP / 3MP / 1080p / 720p / 960H

  • Recording Frame Rate

    4MP: 15fps (per ch)
    3MP: 20fps (per ch)
    1080p/720p/960H: 30fps (NTSC) / 25fps (PAL)

  • Recording Resolution Setting

    Per camera for different resolutions

  • Recording Quality Control

    6 levels

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by channel

  • Pre Recording

    Max. 2 Secs

  • Post Recording

    Max. 5 Minutes

  • Reliability

    Watch-Dog, Auto-recovery after power failure

  • Covert Video

    Yes

LHA42162T 16-Ch DVR: Playback

Jump to...
  • Playback Channel

    1 / 4 / 9 / 16

  • Playback Speed

    Variable Max 16x

  • Playback Players

    Backup Player

  • Search

    By Time/Date & Motion Event

  • Log Search

    Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record & storage

  • Audio Play

    Yes

LHA42162T 16-Ch DVR: Storage & Archive

Jump to...
  • Storage

    Up to 2 HDD (SATA)

  • Maximum Capacity

    Up to 2 x 6TB (12TB Total)

  • Backup Media

    USB Flash Drive & HDD

  • Backup File Format

    H.264 / MP4 / AVI file

LHA42162T 16-Ch DVR: Connectivity

Jump to...
  • Cloud Connection

    FLIR Secure or Lorex Secure app with FLIR Cloud Connectivity

  • Supported Operating Systems

    Windows
    Mac OSX

  • Remote Software

    Client Software (PC) & Safari (Mac)

  • Email notification

    Text with snapshot

  • Instant Smart Phone & Tablet Support

    iPad, iPhone, Android

  • DDNS

    None

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by User

  • Network Protocol

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP

  • Network Interface

    10/100/1000-Base-TX, RJ-45

  • Network Bit Rate

    Max 64Mbps

LHA42162T 16-Ch DVR: General

Jump to...
  • Power Consumption

    Approx. 7.08 watts (no HDD included)

  • Supply Voltage

    100VAC-240VAC, 12VDC, 2A, 50/60Hz

  • Operating temperature

    -10 Degree C - 55 Degree C (14 Degree F - 130 Degree F)

  • Humidity

    10 - 90% RH

  • Dimensions

    14.8 x 12.4 x 2" (375 x 315 x 50mm)

  • Weight

    4.4 lb (2kg) (without hard drive)

LAB243B 4MP HD Bullet Security Camera

Jump to...
  • Image Sensor

    4 MP 1/3" progressive scan CMOS sensor

  • Video Format

    NTSC/PAL

  • Effective Pixels (H x V)

    2592 x 1520

  • Resolution

    4MP

  • Scan System

    Progressive

  • Sync System

    Internal

  • Signal to Noise Ratio

    40 dB (AGC off)

  • Iris

    AES

  • AES Shutter Speed

    1/30 to 1/50,000 sec

  • Minimum Illumination

    0.5 lux without IR LED
    0 lux with IR LED

  • Video Output

    A-MPX

  • Lens

    3.6mm fixed

  • Aperture

    f/2.0

  • Field of View

    Horizontal: 89 Degree

  • Termination

    BNC coax with MPX technology

  • IR LED

    850 nm

  • Number of IR LEDs and Range

    18 x IR LEDs with Smart IR
    Ambient Lighting: Up to 130' (40 m)
    Total Darkness: Up to 90' (27 m)

  • Power Requirement

    12 VDC +/-10%

  • Maximum Power Consumption

    300 mA with IR

  • Operating Temperature

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Operating Humidity

    <95% RH

  • Environmental Rating

    IP66

  • Dimensions

    2.7 x 6.2 x 2.7" (50 x 158 x 50mm)

  • Weight

    0.45 lb (0.2kg)

  • UPC Code

    695529014333

About Lorex 16-Ch Security System

FEATURED REVIEWS

Easy To Use

By Charles J.

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Love it ! Just what

By Carlos G.

Love it ! Just what I expected

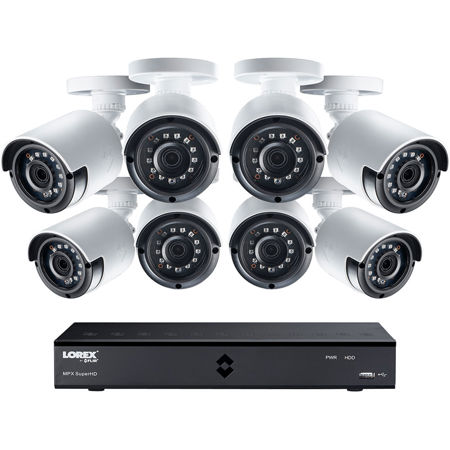

4MP super HD 16 channel, 8 camera security system
Monitor your property like never before with this outstanding 4MP Super HD security system from Lorex. This top-of-the-line system includes our cutting-edge 16-channel LHA4100 Series Super HD DVR with 8 bullet security cameras featuring 4mp (2K) HD resolution. The included weatherproof cameras deliver exceptional image quality day or night, with Color Night Vision in low light conditions and long-range IR night vision in complete darkness. Everything you need for setup is included, giving you professional-grade security protection for your home or business.

Detailed 2K security footage
Take your home or business security to new heights with security cameras that go beyond standard HD. Equipped with powerful Super HD 4-megapixel image sensors, the included bullet security cameras record at a 2K resolution - double that of 1080p HD.

4mp recording captures the details you need
Super HD 4mp video offers clear identification and exceptional detail, ensuring that you never miss out on important evidence. This higher resolution (2592 x 1520 pixels compared to 1920 x 1080) will make sure that your security videos are richer with detail than ever before. It will also allow you to digitally zoom in tight on faces without drastically reducing the video clarity.

Reliable analog HD over a single BNC cable
Standard siamese BNC cabling is used in the LHA42162T to deliver stunning HD video. This BNC cable provides both video and power transmission for an easy-to-install process that will have your surveillance system up and running in no time. If needed, analog HD cameras like these can be installed up to 500 feet away from the DVR - making them ideal for watching over large properties.

Stay connected with Lorex Cirrus
Connect your smartphone or tablet to our Lorex Cirrus app to make your entire surveillance system accessible from virtually anywhere in the world. It is full of innovative features that will make monitoring your property easier. Among many other features, Lorex Cirrus will allow you to watch live or recorded video, and send you motion activated push notifications to your smart device.

24/7 protection with color night vision
The included security cameras are equipped with 2 nighttime viewing technologies. Our innovative Color Night Vision (CNV) creates full-color video in low-light conditions. See people and objects in color just like in the daytime with CNV. This will provide more informative nighttime video than ever before. See clearly even in total darkness with IR LEDs, which produce detailed black and white images in conditions that are too dark for CNV. IR night vision up to 130ft (40m) in ambient night time conditions and up to 90ft (27m) in total darkness ensure that you never lose sight of important details and events around your property.

Weatherproof security cameras built to last
The included security cameras feature a weatherproof IP66 rating and can withstand outdoor temperatures of -22 Degree - 140 Degree F. The cable pass-through mounting bracket further protects the cables from being tampered with to ensure year-round security coverage that never stops.

Security certified hard drive included
Record crisp 4MP video to the pre-installed 2TB security grade hard drive. This large 100% duty-cycle hard drive is designed for surveillance and will provide reliable storage of security footage without taking a break. You can also customize the recording settings to fit your needs by customizing the resolution, frame rate and quality settings. Record in 4MP Super HD for the highest video quality, or set to a lower resolution (1080p, 720p or 960H) for improved recording efficiency and data storage. The scheduled and motion recording features will also allow you to extend your record time.

DVR Digital Video Recorder
Security DVRs connect to BNC cameras using RG59 coaxial cables and they compress and store video footage captured from security cameras.

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Lorex 16-Ch Security System Features

  • LHA42162T 16-Channel DVR Features
  • True 4MP SuperHD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • H.264 video compression reduces data bandwidth requirements for efficient data storage, reduced network load for easy remote connectivity
  • HDMI output (HDMI cable included) for simple connection to HD TVs
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade over the Internet ensures your system is secure and up to date
  • Lorex Cirrus app with 3-Step setup 4 connects all your cameras and systems from any iOS or Android smartphone, tablet, PC or Mac
  • Motion push notifications and email alerts
  • Dual streaming to conserve bandwidth
  • Backward compatible with standard analog cameras
  • LAB243B 4MP HD Bullet Security Camera Features
  • High definition 4MP image sensor delivers double the detail of 1080p
  • 4MP Super HD video recording provides superior quality for reviewing fine details in heightened resolution
  • Color Night Vision provides full color images at night, letting you identify objects and people more accurately than in black & white
  • IR Night vision range up to 130' (40m) in ambient lighting and 90' (28m) in total darkness
  • Close up recognition in the dark with SmartIR
  • DNR (Digital Noise Reduction) for clear accurate images
  • ClearNight imaging for enhanced low light performance and improved recording efficiency
  • Split glass design minimizes IR reflection
  • 89 Degree field of view (horizontal)
  • Vandal resistant design with cable pass-through bracket
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design
  • Weatherproof for outdoor & indoor installation (IP66 Rated)
  • Extreme temperature performance (-22 Degree - 140 Degree F / -30 Degree - 60 Degree C)

Key Features

  • LHA42162T 16-Channel DVR Highlights
  • True 4MP SuperHD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • LAB243B 4MP HD Bullet Security Camera Highlights
  • High definition 4MP image sensor delivers double the detail of 1080p

What's in the box:

  • DVR (LHA42162T)
  • HDMI Cable
  • Remote Control
  • Power Adapter for DVR
  • Mouse
  • Ethernet Cable
  • Quick Start Guides
  • 8x 4MP HD Bullet Cameras (LAB243B)
  • Mounting Hardware
  • 60' Extension Cable
  • Power Adapter for Camera
  • Lorex 2 Year Limited Warranty
