This item is no longer available.
Review Summary
Linux (embedded)
Simultaneous View, Record, Playback, Backup & Remote Monitoring
8-Channels
8 PoE Video Input
Yes
Yes
No - Service jack only
1 Line OUT (RCA)
1 at the back, 1 at the front
4 IN / 1 OUT
3810x2160, 2560x1440, 1920x1200, 1600x1200, 1680x1050, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Yes
1/4/9
Real-time (30fps - camera dependent)
ON/OFF
USB Mouse, IR Remote Control
Fixed grid 1320 (44x30)
8
Automatic over the Internet & via USB device
By user group
Automatic time sync by NTP server
H.265 / H.264
G.711
8MP (4K) - 720p
Real-time (30fps - camera dependent)
Per camera for different resolutions
6 Levels
By hour, by day, by recording mode, by motion, by alarm, by channel
2 Seconds
Minimum 30 sec; maximum 5 min
Watch-Dog, auto-recovery after power failure
Yes
1/4/8
Variable Max 16x
Backup Player
By time/date, motion detection & exact search (accurate to the second)
Up to 4,000 lines for system configuration changes, motion/alarm detected, account, recording & storage
Yes (audio camera required)
2TB HDD
2x 6TB hard drives
USB flash drive, HDD and network
H.265, H.264 or MP4 file
FLIR Secure
Windows / Mac OS X
Web Client Software (PC & Mac)
Text with snapshot
Android, iPad , iPhone
Free Lorex DDNS
Full setup configuration over network
Programmable by User
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
10/100/1000M, RJ-45
Maximum 100Mbps total
Approx. 4.5W (no HDD installed)
48V, 2A
80W (Max 30W per channel)
14 to 131 deg. F (-10 to 55 deg. C)
10 - 90% RH
1/3" 4MP
NTSC / PAL
H: 2592 x V: 1520
4MP (2688x1520) at 20fps
Progressive
Internal
>= 38dB (AGC OFF)
EIS
1/5-1/20000 seconds
0.5 lux without IR
0.3 lux with IR
IP
2.8mm F1.8 / Fixed
101 deg.
RJ45 Ethernet / 12V DC Power Barrel (optional)
850nm
130' (39.62m) with help of ambient lighting
90' (27.43m) in total darkness
Yes
PoE (Power over Ethernet) Class
Max. 450mA /5.4W
-22 to 140 deg. F (-30 to 60 deg. C)
<95% RH
IP66 (Indoor / Outdoor)
NVR (WxHxD): 11.8 x 8.9 x 2.1" (29.97 x 22.61 x 5.33cm)
Camera (WxDxH): 2.9 x 6.0 x 2.9" (7.37 x 15.24 x 7.37cm)
NVR: 2.4 lbs (1.09kg)
Camera: 0.9 lbs (0.41kg)
Trust in Lorex to protect the things that matter most. With our cutting-edge LNK7000 Series network video recorder (NVR) and 2K resolution IP bullet security cameras on your side, this bundle will do just that. Each camera included contains an advanced 4mp (megapixel) image sensor for 2K Super HD resolution security footage and uses our revolutionary color night vision feature to add an extra level of visual detail throughout the night. The included NVR is also 4K ready. This means that you can add 4K resolution security cameras to the remaining open channels if your security needs grow.
NVR
Recording up to 8MP (Ultra HD 4K) on all channels - 4x the detail of 1080p
8MP/4K IP cameras are required to take advantage of 4K recording
16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
FLIR Secure apps for live viewing, playback, video recording & snapshots (iPhone / iPad / Android)
PC and Mac compatible - FLIR Cloud video management software gives you complete control over your security system from anywhere
24/7 security-grade pre-installed hard drive
Expandable high capacity storage up to 12TB (2x6TB HDD)
Automatically detects compatible IP cameras in the network
4K video output - view multiple HD channels at once in full resolution on a 4K TV
H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing
Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive
Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
Click-and-drag digital zoom in live view and playback
Convenient front panel button controls
Accurate time stamps with NTP & daylight savings time
Instant backup of live video to a USB flash drive
Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date
Push notifications of motion events
Instant email alerts with snapshot attachment
Multi-streaming to conserve bandwidth
Continuous, scheduled and motion recording
Dual video outputs (HDMI and VGA) to connect multiple monitors
HDMI cable included for simple connection to HD amp; 4K TVs
Camera
High definition 4MP image sensor delivers double the detail of 1080p
4MP video recording provides HD quality even when zoomed, offering clearer identification in video evidence
The latest H.265 compression technology reduces video file sizes by up to 50% to save valuable Hard Drive space
Color Night Vision delivers full color nighttime video for improved recognition of objects in low light conditions
IR night vision range up to 130' (40m) in ambient lighting and 90' (27m) in total darkness
ClearNight imaging for improved low light performance and improved recording efficiency
True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
Intelligent compression saves recording space by optimizing video performance based on available bandwidth
Wide angle 101deg. field of view (horizontal)
Ceiling / wall mountable
Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
Extend the camera's video and power with a single Ethernet cable up to 300' (92m) from the recorder
Cold climate capability (-22deg. F / -30deg. C)
Weatherproof IP66 rated

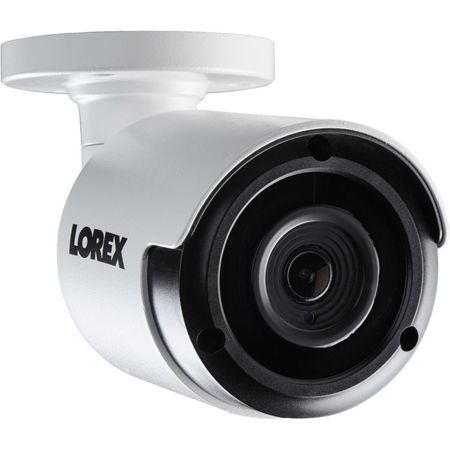

2K resolution security cameras
The 4mp image sensors within your LKB343B security cameras are capable of producing vivid 2K security footage. This 2K pixel resolution of 2688 x 1520 at 20 frames-per-second (FPS) offers a higher level of clarity and detail when compared to 1080p (1920 x 1080). If that's not enough, each camera comes with a wide 101deg. angle lens that will provide you with extremely broad fields of view perfect for open areas or doorway monitoring. They also use a True High Dynamic Range (HDR) feature that makes sure bright areas are not too over-exposed and dark areas are not too dark to see the details you need.
Better digital zooms
Thanks to this higher pixel count (2688 x 1520 compared to 1920 x 1080), your 2K Super HD security cameras will add an increased ability to digitally zoom in on distant objects. This is because the additional pixels will allow you to see details longer as you digitally zoom in on the image. So if an incident does occur, it will offer a better chance to capture useful evidence such as distinct facial features or license plate numbers.
All-night coverage - in color
Sleep peacefully through the night knowing that your security cameras are keeping watch over your property - in full color! Equipped with Lorex's revolutionary Color Night Vision (CNV) technology, your security cameras continue to provide you with color video even in the dark. This means that there is no more guessing what color a car is or what color shirt a person is wearing.
Power-over-Ethernet installation
This professional grade security system does not require a professional technician for installation. This is thanks to Power-over-Ethernet (PoE) technology. Both your NVR and security cameras are equipped with PoE ports. So all that is required to connect them is a single Ethernet cable. This cable not only provides the video transmission but also supplies power to the camera. So you can install your cameras where you need them most without the need to have a power outlet nearby.
Stay connected with FLIR Secure
Monitor your property from wherever life takes you. This security camera system is designed for use with our innovative FLIR Secure app for most smartphones and tablets. Just download the app, scan the unique QR code on your NVR and start viewing your entire system (along with any other FLIR Secure compatible cameras or systems) from virtually anywhere in the world. This app will not only keep you connected, it will make monitoring your property easier. Features such as easy-to-read event history timelines, RapidRecap videos, privacy mode and custom mobile notifications for motion events are all available to you for free.
FLIR Cloud subscriptions
This security camera system comes with a free FLIR Cloud Basic plan. It includes limited cloud storage, cloud history and RapidRecap videos for one camera (defaulted to channel 1). Upgrade this plan to a FLIR Cloud Premium plan for 30 days of cloud history, unlimited cloud storage and unlimited RapidRecap videos.
Extreme weather tolerance
Don't fear the elements. All of your LNK343B security cameras are rated IP66. This means that they are fully weatherproof and can endure virtually whatever mother nature throws at them. They will even continue to operate in freezing temperatures as low as -22deg. F / -30deg. C. Their rugged housings and vandal-resistant designs add even further protection for safe outdoor application.
Security grade hard drive
The LNK7000 NVR comes with a reliable security certified hard drive. This is not your ordinary hard drive, however. It is designed specifically for security recording. It can be in the constant operation and will even continue to record as you review saved footage. This NVR can also be programmed to record at a lower resolution or only when movement is detected to extend your storage space.
Flexible installation
Variety of installation options are available.
24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.
HDTV Ready
High definition interface with HDMI output for easy connection to a TV.
