HD Analog
8 Channels
8x 1Vp-p, CVBS, 75ohms, BNC Type
1x VGA, 1x HDMI
1 ch: RCA
1 ch: RCA
1080p
1,4,8
480fps NTSC, 400fps PAL
On/Off
USB Mouse
1080p, 720p 960H, D1, CIF
1080p@15fps (NTSC); 720p/960/D1/CIF@25/30fps (PAL/NTSC)
Per Channel by, Continuous, Motion, Smart Motion (Person & Vehicle), Alarm, Day, Hour
DAV/AVI/MP4 file
H.265/H.264
Up to 4 Channels
Variable Max 16x
By Time/Date, All Motion Events or Smart Motion (Person and Vehicle), (Smart Search)
1 Bay
Up to 1x 8TB (SATA)
USB Flash Drive & USB HDD
Person and Vehicle Motion Detection (All Channels)
Yes
Yes
Yes
Amazon Alexa, Google Assistant
Chromecast, Apple TV, Amazon Echo Show, Google Home Hub
Android, iOS
Lorex Home
Yes/Lorex Cloud
Text and Snapshot
10/100 Base-TX, RJ45
Yes (Optional)
USB 2.0 x 2
USB/Network
Yes
< 15W (Excl. HDD)
12V/2A
14 Degree - 131 Degree F (-10 Degree - 55 Degree C)
10 - 90% RH
12.9 x 9.6 x 2.1" (328 x 245 x 53mm)
2.75 lbs (1.26Kg) (Excl. HDD)

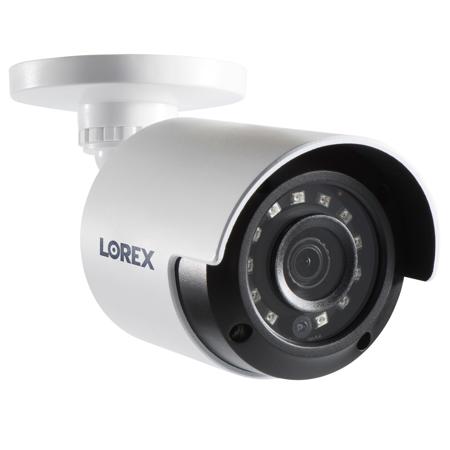

Analog HD
2MP 1/2.7" CMOS
NTSC
88 Degree
2.8mm F2.0/ Fixed
1080p @ 30fps
H:1920 x V:1080
BNC
130' (40m)/ 90' (28m)
No
Polycarbonate
12 V DC +/- 10%
384mA / 4.6W
-40 - 140 Degree F (-40 - 60 Degree C)
< 90% RH
IP66 (Weatherproof)
2.8 x 2.8 x 6.2" (70 x 70 x 158mm) (Each)
10.58 oz (300g)
Protect the people and things that matter most with this 1080p HD home security system from Lorex. This system features an 8-channel DVR and 1080p HD weatherproof security cameras. This system also features advanced person/vehicle detection and smart home compatibility, which allows you to combine active security with the convenience of hands-free voice control.
8 Channels: DVR can support up to 8 cameras
1080p Resolution: 1920 x 1080 HD resolution
130FT Night Vision: Maximum night vision range
1TB Hard Drive: Expandable up to 8TB
1080p HD Video For Crisp, Detailed Footage
Experience the difference that full 1080p HD video makes. Our advanced cameras use standard coaxial cable to carry high definition 1080p (1920 x1080) video to your HD DVR. This resolution ensures detailed live viewing and recording that leaves nothing to the imagination.
Person and Vehicle Smart Motion Detection
This system supports smart person and vehicle detection on all channels. Thanks to this innovative feature, you will only get a push notification and image screenshot to your Lorex Home app whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals.
Long Range Night Vision
Stay connected to what matters most at all times of day with professional-grade night vision. Our infrared (IR) LEDs provide unparalleled performance in the dark, allowing you to clearly see up to 130ft (40m) away in regular nighttime conditions, and up to 90ft (27m) away in total darkness. The integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.
Fully Weatherproof For Outdoor Use
This rugged, weatherproof camera is IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we've engineered our cameras to withstand extreme temperatures for use in the most unforgiving of North American climates. These all season security cameras also feature a cable pass-through design that keeps power and video cabling concealed, as well as a durable yet lightweight Polycarbonate housing, to prevent vandalism.
140 Degree F (60 Degree C): Heat Rating
-22 Degree F (-30 Degree C): Cold Rating
IP66: Weatherproof
Remote Viewing From Your Mobile With Lorex Home
This DVR is designed for use with our innovative Lorex Home app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
Works With
Apple iPhone
Apple iPad
Android Phone
Android Tablet
Apple TV
Smart Home Compatibility
Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex Home app on your Apple TV to view live video in single or multiple feeds.
Single Cable Camera Connection
Each analog security camera comes with a siamese BNC cable that provides video transmission and power to the camera. This cable can be run through walls to give you the flexibility to install the camera where you need it most. A wired video / power connectivity means constant connection to your cameras, so your recording never misses a beat.
Reliable Security Grade Hard Drive With No Hidden Storage Fees
Included in the DVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.
