Lorex 1080p HD 8-Channel 1TB Security System with 6x Night Vision Cameras

SKU: LRXD28162NA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-03-06T07:13:10

Rated 5 out of 5

No coments

Not much, the cameras doesn?t have Audio which is very important.

RAFAEL M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lorex 8-Ch Security System Specifications

D241A81B DVR: General

D241A81B DVR: General

Jump to...
  • Video Transmission Technology

    HD Analog

  • Channels

    8 Channels

D241A81B DVR: Inputs/Outputs

Jump to...
  • Video Input

    8 x 1Vp-p, CVBS, 75ohms, BNC Type

  • Video Outputs

    1 x VGA, 1 x HDMI

  • Audio Input

    1 ch: in RCA

  • Audio Output

    1 ch: out RCA

D241A81B DVR: Display

Jump to...
  • Display Output Resolution

    Up to 1080p

  • Live Display

    1,4,8

  • Live Display Speed (Max)

    240fps NTSC, 200fps PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

D241A81B DVR: Recording

Jump to...
  • Recording Resolution

    1080p, 720p 960H, D1, CIF

  • Recording Frame Rate

    1080p@15fps (NTSC); 720p/960/ D1/CIF@25/30fps (PAL/NTSC)

  • Recording Schedule

    Per Channel: Continuous/Motion/Advanced Motion Person/Vehicle)/ Alarm/Day/Hour

  • Back-up File Format

    DAV/AVI/MP4 file

  • Video Compression

    H.265/H.264

D241A81B DVR: Playback

Jump to...
  • Simultaneous Playback

    Up to 4 Channels

  • Playback Speed

    Variable Max 16 x

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), (Smart Search)

D241A81B DVR: Storage

Jump to...
  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 1 x 10TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDDSmart Motion Detection
    Person/Vehicle Smart Motion Detection (enabled only on up to 2 channels)

D241A81B DVR: Special Features

Jump to...
  • Smart Motion Detection

    Person/Vehicle Smart Motion Detection (enabled only on up to 2 channels)

  • Smart Search

    Yes

D241A81B DVR: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

D241A81B DVR: Connectivity

Jump to...
  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • DDNS

    Yes (Optional)

  • USB interface

    2x USB 2.0

D241A81B DVR: Additional Specifications

Jump to...
  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    < 10W (Excl. HDD)

  • Supply Voltage

    12V/2A

  • Operating Temperature

    14 Degree - 131 Degree F (-10 Degree - 55 Degree C)

  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lbs (1.26kg) (Excluding HDD)

LBV2531U Camera

Jump to...
  • Image Sensor

    1/2.7" 1080p, 2.1 Megapixel CMOS

  • Video Format

    NTSC

  • Effective Pixels

    H: 1920 x V: 1080

  • Resolution

    1080p

  • Scan System

    Progressive

  • Sync System

    Internal

  • Iris

    AES

  • AES Shutter Speed

    1/30 - 1/100,000s

  • Min. Illumination

    0.2 lux without IR LED / 0 lux with IR LED

  • Video Output

    MPX

  • Lens / Lens Type

    3.6mm F2.0 / Fixed

  • Field of View (Horizontal)

    88 Degree

  • Termination

    BNC Type

  • IR LED Type

    850nm

  • Night Vision Range

    130' (40m) / 90' (28m)

  • Power Requirement

    12V DC +/-10%

  • Power Consumption

    Max. 280mA (with IR)

  • Operating Temp. Range

    -22 Degree - 140 Degree F (-30 Degree - 60 Degree C)

  • Operating Humidity Range

    < 90% RH

  • Environmental Rating

    IP66

  • Dimensions

    2.7 x 6.2 x 2.7" (70 x 158 x 70mm)

  • Weight

    0.4 lbs (0.18kg) ((Including stand)

  • UPC Code

    695529034362

About Lorex 8-Ch Security System

FEATURED REVIEWS

No coments

By RAFAEL M.

Not much, the cameras doesn?t have Audio which is very important.

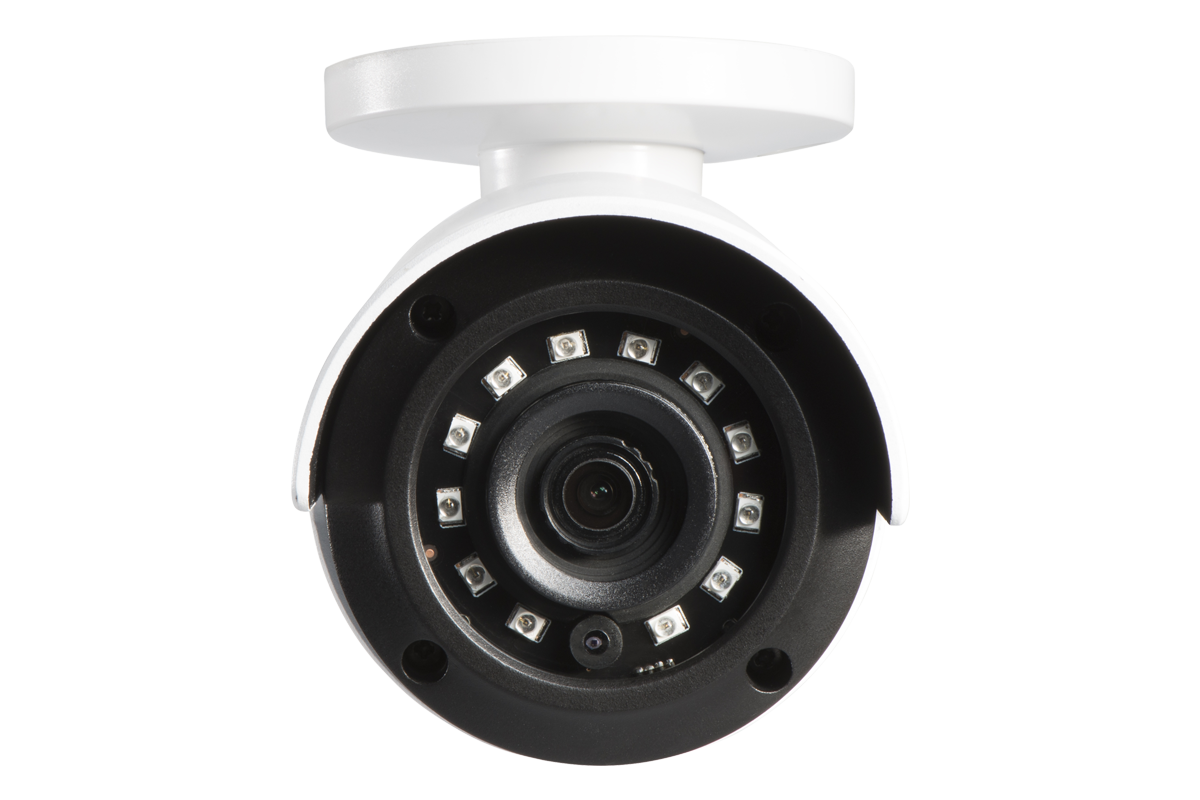

1080p High Definition Detail & Clarity.

1080p High Definition Detail & Clarity.

Experience the difference that full 1080p HD video makes. Our advanced cameras use standard coaxial cable to carry high definition 1080p (1920×1080) video to your HD DVR. This resolution ensures detailed live viewing and recording that leaves nothing to the imagination.

Advanced Motion Detection.

Be aware whenever motion is detected on your property with advanced motion detection. This system features person/vehicle detection on 2 channels which helps reduce unnecessary alerts and false alarms from moving branches or animals. Important motion events that are recorded can easily be found using the Smart Search feature, which organizes events by type (e.g. person/vehicle motion vs. general motion, etc.).

Advanced Motion Detection.
Long Range Night Vision.

Long Range Night Vision.

Stay connected to what matters most at all times of day with professional-grade night vision that leaves nothing to the imagination. Our infrared (IR) LEDs provide unparalleled performance in the dark, allowing you to clearly see up to 130ft (40m) away in regular nighttime conditions, and up to 90ft (27m) away in total darkness. The integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.

Long Range Night Vision.

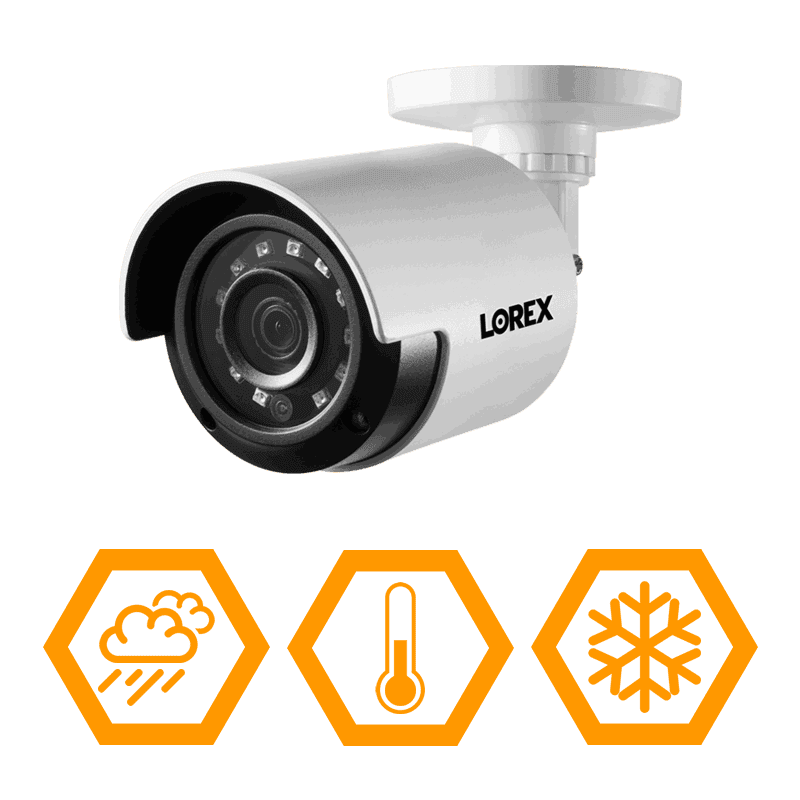

Fully Weatherproof For Outdoor Use.

This rugged, weatherproof camera is IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we've engineered our cameras to withstand extreme temperatures for use in the most unforgiving of North American climates. These all season security cameras feature a cable pass-through design that keeps power and video cabling concealed, which helps to prevent tampering. The durable yet lightweight Polycarbonate housing makes this camera virtually immune against vandalism.

Fully Weatherproof For Outdoor Use.

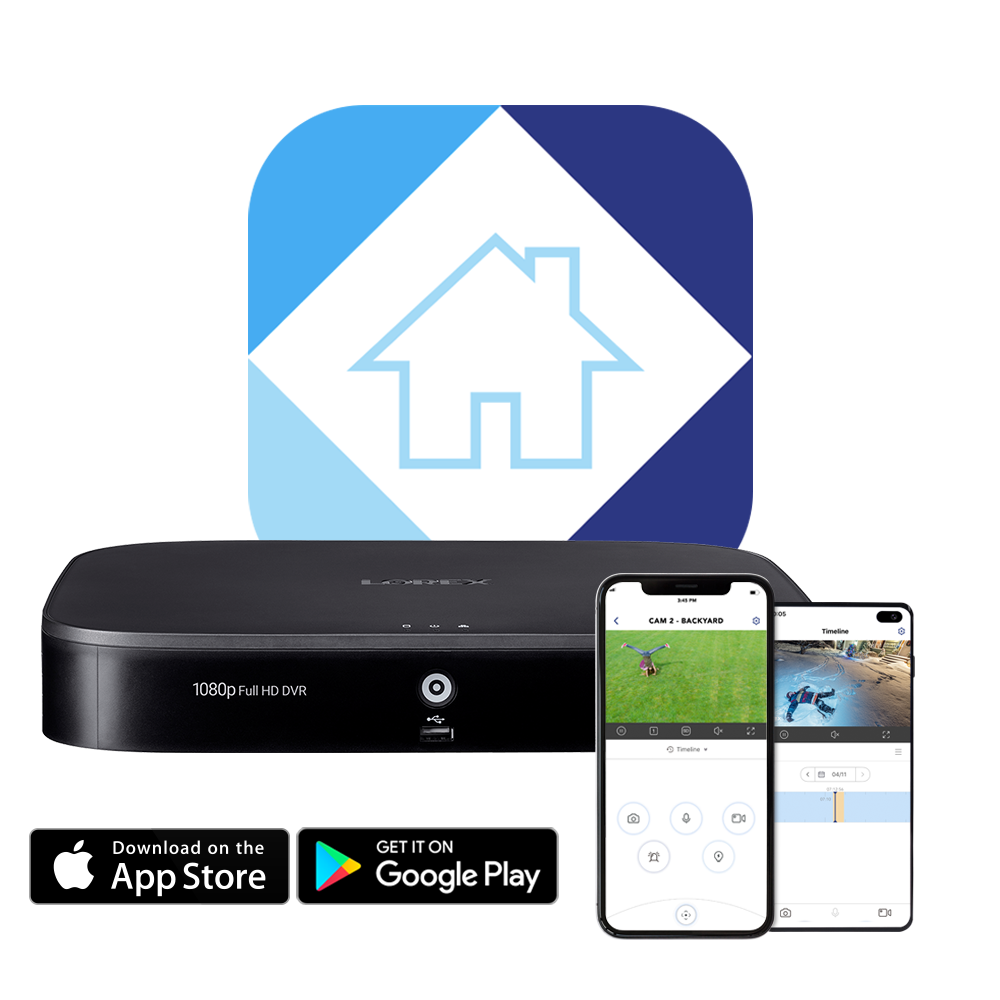

Remote Viewing From Your Mobile With Lorex Home.

This system is designed for use with our innovative, hassle-free Lorex Home™ app. With Lorex Home, you can quickly and easily view your security system remotely through your smartphone or tablet. You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage).

Remote Viewing From Your Mobile With Lorex Home.

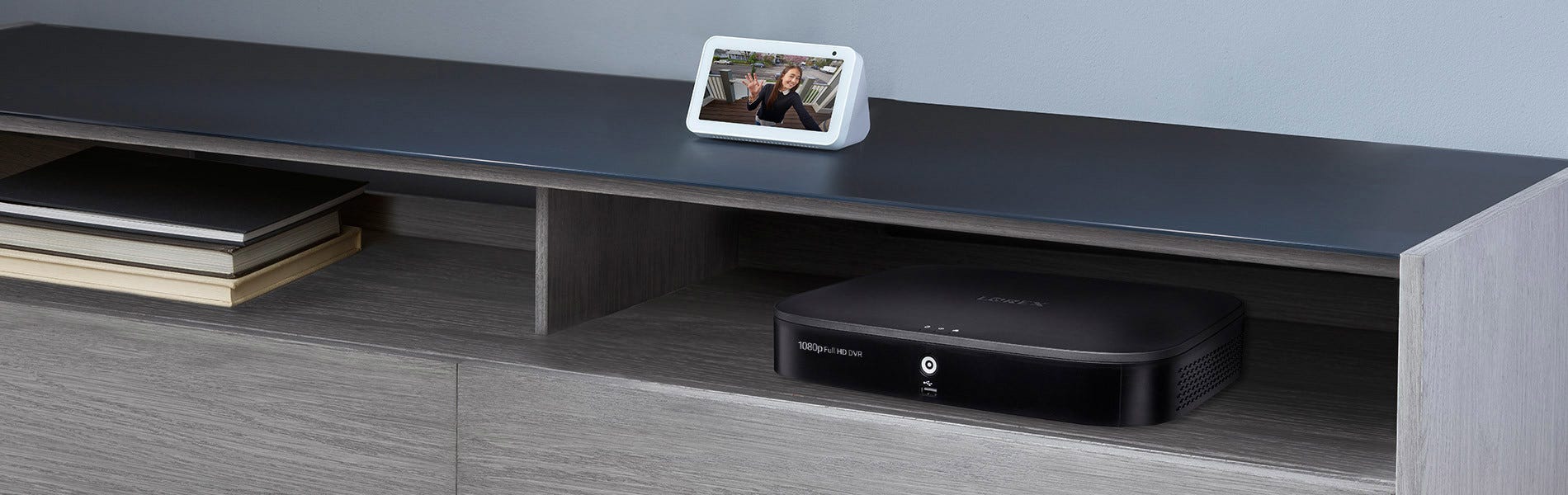

Smart Home Compatibility.

Smart Home Compatibility.

Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.

View Your System Through Apple TV.

View Your System Through Apple TV.

Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV? No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV™(Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Home Apple TV App.

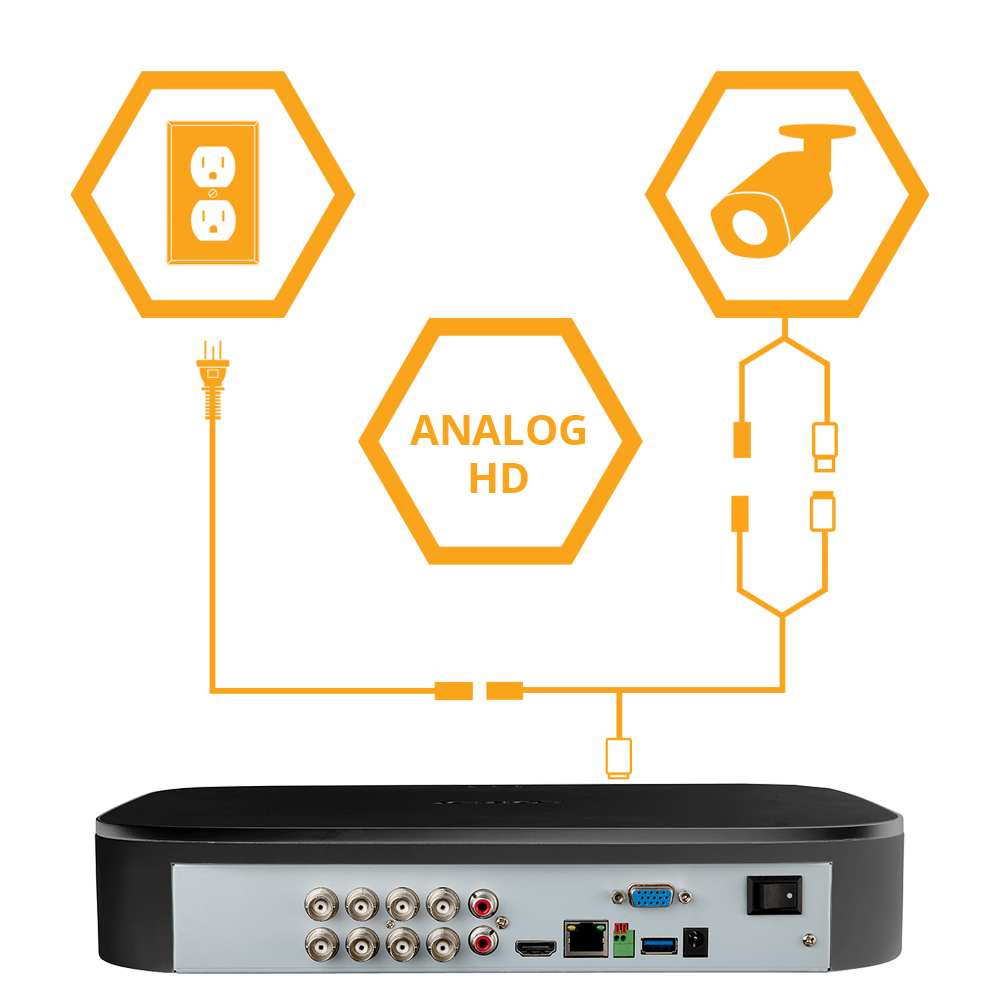

Single Cable Camera Connection.

Each analog security camera comes with a siamese BNC cable that provides video transmission and power to the camera. This cable can be run through walls to give you the flexibility to install the camera where you need it most. A wired video / power connectivity means constant connection to your cameras, so your recording never misses a beat.

Single Cable Camera Connection.

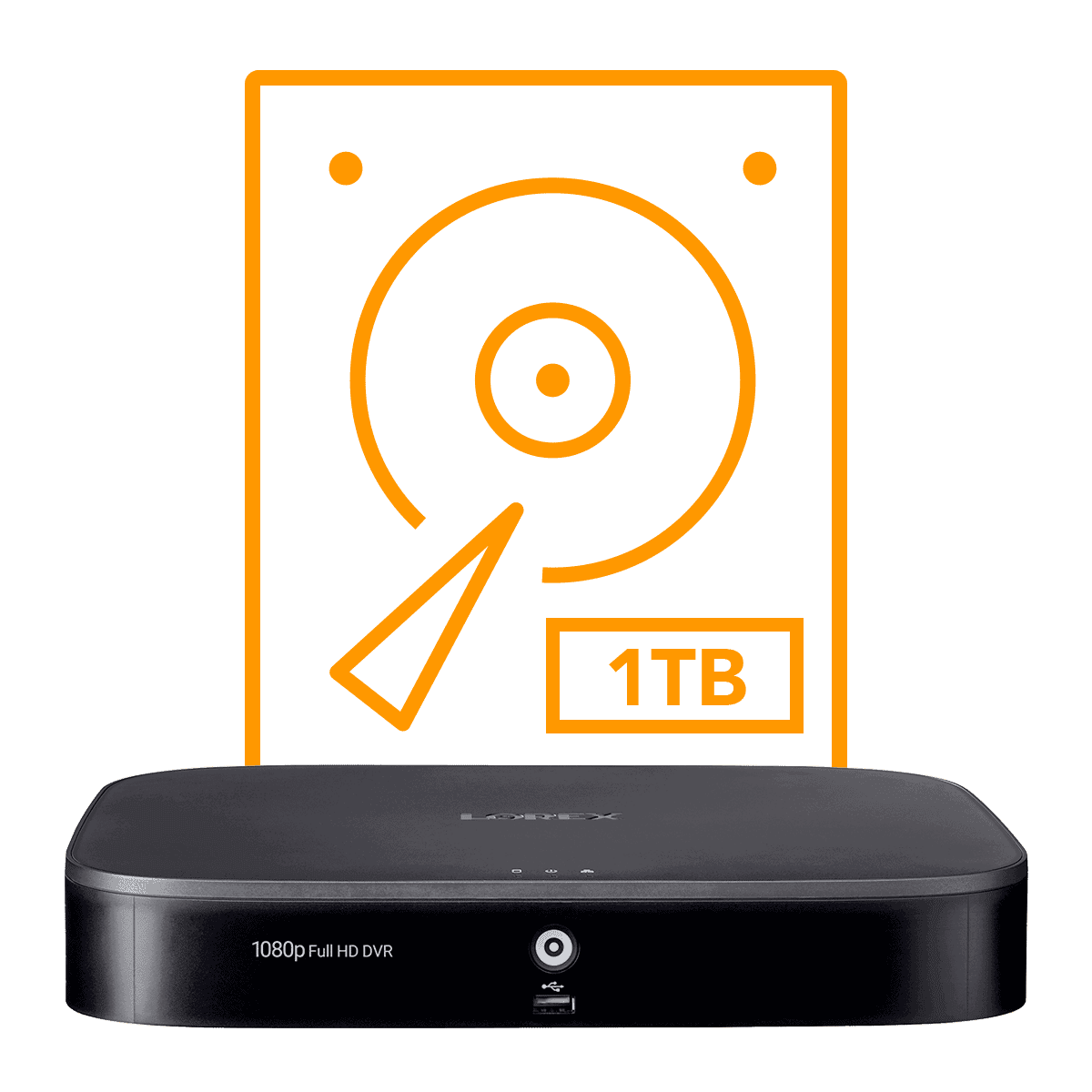

Reliable Security Grade Hard Drive.

The DVR in this system is capable of working 24/7 without a break. Thankfully, so is the 1TB hard drive within it. Lorex uses security ceritified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 8TB in size.

Reliable Security Grade Hard Drive.

Key Features

  • D241A81B DVR Highlights
  • Capable of recording up to 1080p Full HD Resolution on all cameras
  • Digitally zoom in on distant objects for better clarity
  • Reduce unnecessary alerts and false alarms with advanced motion detection
  • LBV2531U Bullet Camera Highlights
  • High definition 1080p image sensor

What's in the box:

  • 1080p HD 8-Channel 1TB HDD DVR (D241A81B)
  • 6x 2.1MP 1080p HD Bullet Camera (LBV2531U)
  • HDMI Cable
  • Power Adapter
  • USB Mouse
  • Ethernet Cable
  • Mounting Hardware
  • 6x 60' Extension Cable
  • 6x Power Adapter
  • Quick Start Guide
  • Lorex 1 Year Limited Warranty
