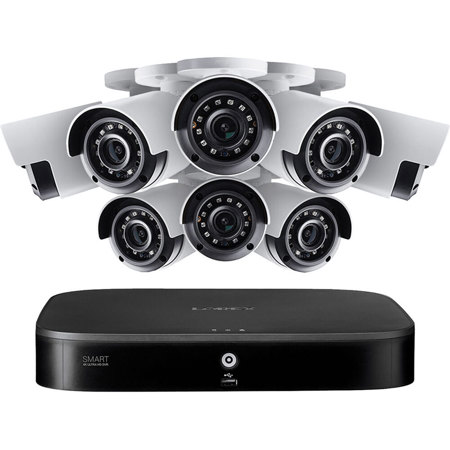

Lorex 4K Ultra HD 8-Channel 1TB DVR Security System with 8x 8MP Bullet Cameras

SKU: LRXD861A1T88

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lorex D861A81T-88CA Specifications

D861A81B DVR: General

D861A81B DVR: General

Jump to...
  • Video Transmission Technology

    HD Analog

  • Channels

    8-Channels

D861A81B DVR: Inputs/Outputs

Jump to...
  • Video Input(s)

    8x 1Vp-p, CVBS, 75ohms, BNC Type

  • Video Outputs(s)

    VGA, HDMI

  • Audio Input(s)

    1 ch: RCA

  • Audio Output(s)

    1 ch: RCA

D861A81B DVR: Display

Jump to...
  • Display Output Resolution

    up to 4K

  • Live Display

    1,4,8

  • Live Display Speed (Max)

    240fps NTSC, 200fps PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

D861A81B DVR: Recording

Jump to...
  • Recording Frame Rate

    4K@7fps; 5Mp@12fps; 4MP/3MP@15fps; 1080P@30fps

  • Recording Schedule

    Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel

  • Back-up File Format

    DAV/AVI/MP4 file

  • Video Compression

    H.265/H.264

D861A81B DVR: Playback

Jump to...
  • Simultaneous Playback

    up to 4 Channels

  • Playback Speed

    Variable Max 8 x

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person and Vehicle), Area (Smart Search)

D861A81B DVR: Storage

Jump to...
  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 1 x 8TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDD

D861A81B DVR: Special Features

Jump to...
  • Smart Motion Detection

    Person and Vehicle Motion
    Detection

  • Face Detection

    Yes

  • Active Deterrence Support

    Yes

  • Smart Search

    Yes

D861A81B DVR: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

D861A81B DVR: Connectivity

Jump to...
  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • PC/MAC Software

    Lorex Cloud

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • DDNS

    Yes (Optional)

  • USB interface

    USB 2.0 x 2

D861A81B DVR: Additional Specifications

Jump to...
  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    < 10 watts (no HDD included)

  • Supply Voltage

    12V/2A

  • Operating Temperature

    14 Degree F - 131 Degree F (-10 Degree C - 55 Degree C)

  • Humidity

    10 - 90% RH

D861A81B DVR: Physical

Jump to...
  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lbs (1.26kg) (without HDD)

C841CA Camera: General

Jump to...
  • Video Transmission Technology

    Analog HD

  • Image Sensor

    8MP/4K >= 1/3" CMOS

  • Video Format

    NTSC

C841CA Camera: Optical

Jump to...
  • Viewing Angle (Horizontal)

    87 Degree

  • Lens/Lens type

    3.6mm F2.0/ Fixed

C841CA Camera: Video Output

Jump to...
  • Resolution/Frame rate

    4K(8MP) @ 15fps

  • Effective Pixels

    H:3840 x V:2160

  • Termination

    BNC

C841CA Camera: Audio

Jump to...
  • Microphone/Speaker

    No/No

  • Siren

    No

  • 2-Way Talk

    No

C841CA Camera: Night Vision

Jump to...
  • IR Night Vision Range

    120' (37m)
    82' (25m)

  • Color Night Vision

    Yes

C841CA Camera: Special Features

Jump to...
  • Deterrence

    No

C841CA Camera: Additional Specifications

Jump to...
  • Material

    Polycarbonate

  • Power Requirements

    12 V DC +/- 10%

  • Power Consumption (max)

    346mA / 4.15W

  • Operating Temperature

    -40 Degree F - 131 Degree F (-40 Degree C - +55 Degree C)

  • Humidity

    < 90% RH

  • Environmental Rating

    IP67 (Indoor/Outdoor)

C841CA Camera: Physical

Jump to...
  • Dimensions (H x Dia.)

    2.8x 6.2 x 2.8" (70 x 158 x 70mm)

  • Weight

    10.4 oz (294.8g)

  • UPC Code

    695529029375

About Lorex D861A81T-88CA

Whether you're purchasing your first system or long overdue for an upgrade, this 4K Analog HD security camera bundle from Lorex easily meets the demanding needs of modern-day security. The system includes eight 4K resolution cameras and an 8-channel DVR featuring a 1TB hard drive. With other amazing features such as smart motion detection, smart home compatibility, our exclusive Color Night Vision (CNV) technology, local video storage and more, this system will easily provide professional-quality security protection for your home or business.

• 8-Channels: 4K DVR can support up to 8 cameras
• 8 Cameras: 8 Ultra HD 8MP security cameras
• 120' Night Vision: Maximum night vision range
• 1TB Hard Drive: Maximum capacity 1 x 8TB hard drive
• Lorex Home App

Picture perfect 4K resolution
The security cameras in this bundle record 4K HD quality video; that's more than 8 million pixels of superior detail and definition. As the highest standard to date in the security industry, 4K resolution results in accurate picture and color representation. It will also allow for greater digital zoom so you can see further into the distance.

Person and vehicle smart motion detection
This DVR comes with smart person and vehicle detection on all channels. This helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Home app whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. All recorded motion alerts can easily be reviewed by using the Smart Search function in the Lorex Home mobile app.

Face Detection
Perfect for front doors and entranceways, Face Detection will only notify you of motion events when a face has been detected. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera. You can also easily preview all the different faces that the camera has captured for quick reference. You can also review and filter only face detection events in Smart Search.

Note: Face Detection is only available on up to 2 channels. You cannot enable both Face Detection and Person and Vehicle Detection at the same time. Person and Vehicle Detection must be disabled on all channels for Face Detection to be enabled on a single channel. Face Detection is disabled by default.

See color in the dark
Experience enhanced clarity and capture important details at night thanks to Lorex's exclusive Color Night Vision (CNV). CNV works best with the help of plenty of ambient lighting. In the event of minimal ambient light, the cameras will revert to IR (infrared) night vision. These cameras have an IR range of 120ft (37m) in low-light settings and 82ft (25m) in complete darkness.

Built for the outdoors
This 4K security camera is rated IP67 and has been designed to withstand all types of weather conditions. In fact, it can function in temperatures as low as -40 Degree F and as high as 131 Degree F (-40 Degree C to 55 Degree C), making it a versatile solution in different climate zones.

• 131 Degree F (55 Degree C) Heat Rating
• -40 Degree F (-40 Degree C) Cold Rating
• IP67 Water Rating

Remote viewing from your mobile with Lorex Home
This system is designed for use with our innovative, hassle-free Lorex Home app. With Lorex Home, you can quickly and easily view your security system remotely through your smartphone or tablet. You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage).

Works With
• Apple iPhone
• Apple iPad
• Android Phone
• Android Tablet
• Apple TV

Add A Sensor Kit!
The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

• Video-Free
• Instant Alerts
• Sensor Linking

Note: Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N862, and D861 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility

Smart home compatibility
Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV to view live video in single or multiple feeds, or playback recorded footage.

Note: Requires Gen 4 or newer Apple TV with support for App Store

View your system through Apple TV
Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV? No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV (Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Home Apple TV App.

Single cable camera connection
Each analog security camera comes with a siamese BNC cable that provides video transmission and power to the camera. This cable can be run through walls to give you the flexibility to install the camera where you need it most. A wired video / power connectivity means constant connection to your cameras, so your recording never misses a beat.

Reliable security grade hard drive
Included in the DVR is a built-in 1TB security-grade hard drive that has been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store footage.

No Monthly Fees
There are absolutely no monthly fees associated with this security system. All video footage is safely stored on the security grade hard drive located within the recorder.

Connects directly to TVs and Monitors
Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.

DVR Digital Video Recorder
Security DVRs connect to BNC cameras using RG59 coaxial cables and they compress and store video footage captured from security cameras.

With or Without the Internet
Standalone camera systems do not need the internet to operate. However, an internet connection will be necessary if you wish to use a smartphone, tablet or computer to access features such as remote monitoring.

Lorex D861A81T-88CA Features

  • D861A81B 1TB HDD DVR Features
  • Record and view video up to 4K (8MP) Ultra HD resolution
  • Digitally zoom in up to 8x on distant objects for better clarity
  • Capable of recording up to 4K (8MP) resolution on all cameras
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection
  • Receive notifications when a person, vehicle or a person's face is detected on your property from the Lorex Homeapp
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate deterrence features on compatible cameras
  • Local built-in security grade hard drive ensures only you can access your footage
  • Supports up to an 8TB hard drive with no hidden monthly cloud fees
  • Hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible Alexa and Google)
  • Control your Deterrence cameras features with your voice (compatible with Google Assistant only)
  • View live or recorded video directly on your smartphone or TV with smart home compatibility (Compatible with Apple TV and Chromecast)
  • 8x C841CA 8MP Bullet Cameras Features
  • Record 4K (8MP) HD video and experience accurate picture and color representation
  • Review fine details in increased resolution without losing image quality
  • View live video at 15 fps
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision (ambient lighting required)
  • IR night vision range of 120' (37m) in ambient lighting or 82ft (25m) in total darkness
  • IP67 weatherproof rating ensure continuous functionality in all weather conditions
  • Operates in temperatures as low as -40 Degree F and high as 131 Degree F (-40 Degree C to 55 Degree C)
  • Vandal-resistant thanks to the cable passed through bracket design

Key Features

  • D861A81B 1TB HDD DVR Higlights
  • Record and view video up to 4K (8MP) Ultra HD resolution
  • Digitally zoom in up to 8x on distant objects for better clarity
  • Capable of recording up to 4K (8MP) resolution on all cameras
  • 8x C841CA 8MP Bullet Cameras Higlights
  • Record 4K (8MP) HD video and experience accurate picture and color representation
