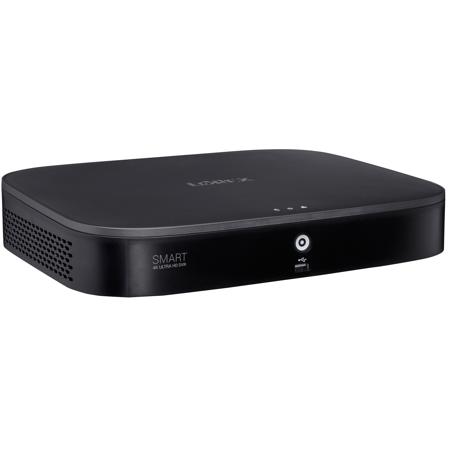

Lorex 4K Ultra HD 8-Channel 2TB DVR Security System with 8x 8MP Bullet Cameras

SKU: LRXD88DA8

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Tushar P : Great Quality

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lorex D861A82B + C883DA Specifications

D861A82B DVR: General

D861A82B DVR: General

Jump to...
  • Video Transmission Technology

    HD Analog

  • Channels

    8-Channels

D861A82B DVR: Inputs/Outputs

Jump to...
  • Video Inputs

    8x 1Vp-p, CVBS, 75ohms, BNC Type

  • Video Outputs

    1x VGA, 1 x HDMI

  • Audio Inputs

    1 ch: RCA

  • Audio Outputs

    1 ch: RCA

D861A82B DVR: Display

Jump to...
  • Display Output Resolution

    Up to 4K

  • Live Display

    1,4,8

  • Live Display Speed (Max)

    240fps NTSC, 200PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

D861A82B DVR: Recording

Jump to...
  • Recording Frame Rate

    4K@7fps; 5Mp@12fps; 4MP/3MP@15fps; 1080P@30fps

  • Recording Schedule

    Schedule recordings through Continuous/Motion/Advanced Motion (Person/Vehicle)/Alarm/Day/Hour Per Channel by

  • Back-up File Format

    DAV/AVI/MP4 file

  • Video Compression

    H.265/H.264

D861A82B DVR: Playback

Jump to...
  • Simultaneous Playback

    up to 4 Channels

  • Playback Speed

    Variable Max 8x

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), Area Search (Smart Search)

D861A82B DVR: Storage

Jump to...
  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 1 x 8TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDD

D861A82B DVR: Special Features

Jump to...
  • Smart Motion Detection

    Person and Vehicle Motion Detection

  • Face Detection

    Yes

  • Active Deterrence Support

    Yes

  • Smart Search

    Yes

D861A82B DVR: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

D861A82B DVR: Connectivity

Jump to...
  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • PC/MAC Software

    Lorex Cloud

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • DDNS

    Yes (Optional)

  • USB interface

    USB 2.0 x 2

D861A82B DVR: Additional Features

Jump to...
  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    < 10 watts (no HDD included)

  • Supply Voltage

    12V/2A

  • Operating Temperature

    14 Degree - 131 Degree F / -10 Degree - 55 Degree C

  • Humidity

    10 - 90% RH

D861A82B DVR: Physical

Jump to...
  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lbs (1.26kg) (without HDD)

C883DA Camera: General

Jump to...
  • Video Transmission Technology

    Analog HD

  • Image Sensor

    8MP/4K 1/2.7" CMOS

  • Video Format

    NTSC

C883DA Camera: Optical

Jump to...
  • Viewing Angle (Horizontal)

    105 Degree

  • Lens/Lens type

    2.8mm F2.0/ Fixed

C883DA Camera: Video Output

Jump to...
  • Resolution/Frame rate

    4K (8MP)@ 15fps

  • Effective Pixels

    H:3840 x V:2160

  • Termination

    BNC

C883DA Camera: Audio

Jump to...
  • Microphone/Speaker

    No/Yes

  • Siren

    Yes

  • 2-Way Talk

    No

C883DA Camera: Night Vision

Jump to...
  • IR Night Vision Range

    135' (41m)/ 90' (28m)

  • Color Night Vision

    Yes

C883DA Camera: Special Features

Jump to...
  • Deterrence

    Yes - Warning Light + Siren

  • Camera Housing Material

    Polycarbonate

  • Power Requirements

    12 V DC +/- 10%

  • Power Consumption (max)

    430mA / 5.2W

  • Operating Temperature

    -40 Degree F - 140 Degree F / -40Degree C - 60 Degree C

  • Humidity

    < 95% RH

  • Environmental Rating

    IP67 (Indoor/Outdoor)

C883DA Camera: Physical

Jump to...
  • Dimensions (W x D x H)

    2.9 x 6.4 x 3.3" (73 x 164 x 83mm)

  • Weight

    8.8 (250g)

  • UPC Code

    695529046044

About Lorex D861A82B + C883DA

Equip your property with this 4K Ultra HD Active Deterrence security system from Lorex. Featuring exceptionally sharp and detailed 4K resolution recording, Color Night Vision, and 105 Degree wide angle lenses, the cameras included here ensure top quality security video around-the-clock. The cameras also include an LED warning light and siren to add invaluable deterrence aimed to prevent incidents before they happen. This system includes an eight-channel 4K Ultra HD Digital Video Recorder (DVR), which supports Smart Motion Detection and features a 2TB hard drive to store video data.

• 8 Channels: 4K DVR can support up to 8 cameras
• 135ft Night Vision: Maximum night vision range
• 2TB Hard Drive: Maximum capacity 1 x 8TB hard drive
• Works with Lorex Home App

See every detail with superior definitionThanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.

Deter unwanted guests in a flash
Each camera comes with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can set to a schedule or customized to only activate when a person or vehicle is detected. Second, there is a remote-triggered siren that you can control from your Lorex Home app. When the camera detects motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a warning alert.

See everything clear as day, even at night
This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects. Without the help of external lighting, this camera is still capable of recording full black and white night vision up to 135ft (41m) in low light and 90ft (28m) in total darkness.

Maximize coverage with cameras built for any climate
Install these durable security cameras wherever you need them most - indoors or outdoors. They are manufactured to be fully weatherproof (rated IP67), so you can count on all-season security monitoring that never stops working.

• Heat Rating: 131 Degree F | 55 Degree C
• Cold Rating: -40 Degree F | -40 Degree C
• Water Rating: IP67

Person and vehicle smart motion detection
This DVR comes with smart person and vehicle detection on all channels that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Home app whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. All recorded motion alerts can easily be reviewed by using the Smart Search function in the Lorex Home mobile app.

Face Detection
Perfect for front doors and entranceways, Face Detection will only notify you of motion events when a face has been detected. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera. You can also easily preview all the different faces that the camera has captured for quick reference. You can also review and filter only face detection events in Smart Search.

Remote viewing from your mobile with Lorex Home
This feature-rich system is designed for use with our innovative, hassle-free Lorex Home app. Using Lorex Home, you can quickly and easily view your security system remotely from your smartphone or tablet and control active deterrence features. You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With
• Apple iPhone
• Apple iPad
• Android Phone
• Android Tablet
• Apple TV

Add A Sensor Kit!
The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

• Video-Free
• Instant Alerts
• Sensor Linking

Smart home compatibility
Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.

Smart Search
Find what you are looking for quickly with Lorex's Smart Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. You can also review and filter only face, person or vehicle detection events in Smart Search.

Reliable security grade hard drive with no hidden storage fees
Included in the DVR is a security-grade hard drive that has been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

Lorex D861A82B + C883DA Features

  • D861A82B 4K Ultra HD 8-Channel 2TB Wired DVR Features
  • Record and view video up to 4K (8MP) Ultra HD resolution
  • Digitally zoom in up to 8x on distant objects for better clarity
  • Capable of recording up to 4K (8MP) resolution on all cameras
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection
  • Get push notifications with the Lorex Home App when motion is detected from a person or vehicle
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate deterrence features on compatible cameras
  • Local built-in security grade hard drive ensures only you can access your footage
  • Supports up to an 8TB hard drive with no hidden monthly cloud fees
  • Hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible Alexa and Google)
  • Control your Deterrence cameras features with your voice (compatible with Google Assistant only)
  • View live or recorded video directly on your smartphone or TV with smart home compatibility (Compatible with Apple TV and Chromecast)
  • C883DA 4K 8MP Bullet Camera Features
  • 4K Ultra HD, ensuring clear and detailed footage, every time
  • See more with an 105 Degree Field of View (horizontal)
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision
  • Up to 135' (41m) IR night vision in low light and 90ft (28m) in total darkness
  • Motion-activated LED warning light
  • Deter unwanted guests with the remote-activated siren Weatherproof rated (IP67)
  • Operates in temperatures low as -40 Degree F (-40 Degree C) and high as 131 Degree F (55 Degree C)
  • Durable camera housing, designed to withstand harsh weather conditions

Key Features

  • D861A82B 4K Ultra HD 8-Channel 2TB Wired DVR Highlights
  • Record and view video up to 4K (8MP) Ultra HD resolution1
  • Digitally zoom in up to 8 x on distant objects for better clarity
  • Capable of recording up to 4K (8MP) resolution on all cameras
  • C883DA 4K 8MP Bullet Camera Highlights
  • 4K Ultra HD, ensuring clear and detailed footage, every time

What's in the box:

  • Lorex D861A82B 4K Ultra HD 8-Channel 2TB DVR
  • 8x C883DA 4K 8MP Bullet Cameras
  • HDMI Cable
  • Power Adapter for DVR
  • USB Mouse
  • Ethernet Cable
  • 8x Mounting Hardware
  • 8x Power Adapter for Camera
  • 8x 60' BNC/DC UL Certified Extension Cable
  • User Manual
  • Lorex 1 Year Limited Warranty
