Lorex 1080p HD 16-Ch Security System, D441 1TB HDD DVR, 12x LBV2531U Cameras
See all Lorex items

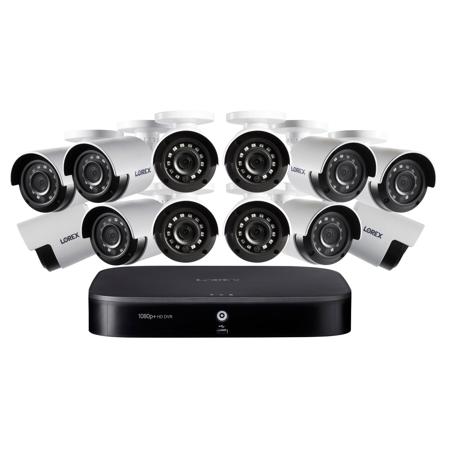

Lorex 1080p HD 16-Channel Security System, Includes D441 Series 1TB HDD DVR and 12x LBV2531U 2.1MP Bullet Security Cameras with Night Vision 130'

SKU: LRXDF162C2NA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JACQUELINE G : Price and reviews.

Reviews about this item

Review Summary

2022-09-24T20:00:00

Rated 5 out of 5

Easy To Use

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Charles J.

2022-09-12T20:00:00

Rated 5 out of 5

Love it ! Just what

Love it ! Just what I expected

Carlos G.

2022-04-13T15:45:36

Rated 5 out of 5

Great

Like it very much

SULEMAN L.

2022-02-06T19:00:00

Rated 5 out of 5

Easy setup

The process to set it up was very easy

Jose F.

2022-01-10T19:00:00

Rated 5 out of 5

Purchase of replacement DVR

It is an upgrade to the previous DVR replacement, without incurring additional costs and changing of wires in the attic. I am pleased with the purchase. thanks to the sales team that assisted me in selecting this replacement unit. I have been with Lorex for over 10 years, and I really like their products and technical assistance.

Francisco P.

2021-12-07T19:00:00

Rated 5 out of 5

Everything is good.

Everything is good.

Cleveland P.

2021-11-30T19:00:00

Rated 5 out of 5

Very Nice

I thought my old one was broken but I got it going again after I bought this new replacement DVR with mouse. It's perfect. I just gave away my old one to family. It updates automatically, nicer interface the price was decent, and all my previously installed cameras blended into the new DVR flawlessly. I've always liked these affordable DVR Lorex cameras systems. Back in the day they were thousands of dollars. What more could I say.

Andrew C.

2021-03-09T19:00:00

Rated 5 out of 5

It?s works way better than the one I have.

John

2021-03-07T19:00:00

Rated 5 out of 5

Over the years, I've owned several camera systems for my business. This one is quite intuitive to set up. My only complaint is the adjustment on the cameras being set screws and a little cumbersome at times - you get the hang of it after a bit - I'd like to see a ball joint for adjustments, but this one does the trick eventually (let's face it, they're only being set up once). The video quality is top notch and the night vision is better than expected. Ran great out of the box with the exception of one wire which would have been annoying if I didn't have an extra, but I had an extra, so it wasn't that big of a deal. I'll eventually talk to customer service and see if I can get the wire replaced - I will update the review if I have a poor experience there, but I expect no issues - let's leave that part of it as no news is good news.

Wondering

2021-03-05T19:00:00

Rated 5 out of 5

Great system awesome price. Purchased from sames club. Very happy with this system

Kieth

2020-12-10T14:03:08

Rated 5 out of 5

Very satisfied with product.

I am amazed at the quality of the pictures. I definitely recommend this package.

DAVID H.

2020-11-05T15:09:47

Rated 5 out of 5

Very impressed

Beautiful cameras with very clear views and so many options! I feel so safe now

CHRISTINA M.

2020-05-31T20:00:00

Rated 5 out of 5

I researched many systems before purchasing this unit. I wanted a long-term solution for home surveillance that I did not have to rely on cloud technology for. All components of the system are quality. The only feedback I have it the quality of the CAT5 cables - they are thin and feel like that are not going to last long. However, the weatherproof connection at the end of the cable is a great feature! I ran the cables in a way that will allow for simple replacement if/when they fail over time. The video quality of outstanding! The system itself has been easy to use, but there are a few settings that I will need to refer to YouTube for guidance on. Spend the money and invest in this system for your home or office immediately.

PalmettoCJ

2019-12-29T19:00:00

Rated 4 out of 5

This system was very easy to install and operate. Amazing clarity, even in the dark!

JCS

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lorex 16-Ch Security System Specifications

LBV2531U Camera

LBV2531U Camera

Jump to...

  • Image Sensor

    1/2.7" 1080p, 2.1 Megapixel CMOS 1

  • Video Format

    NTSC

  • Effective Pixels

    H: 1920 x V: 1080

  • Resolution

    1080p

  • Scan System

    Progressive

  • Sync System

    Internal

  • Iris

    AES

  • AES Shutter Speed

    1/30 - 1/100,000s

  • Min. Illumination

    0.2 lux without IR LED / 0 lux with IR LED

  • Video Output

    MPX

  • Lens/Lens Type

    3.6mm F2.0 / Fixed

  • Field of View (Horizontal)

    88 Degree

  • Termination

    BNC Type

  • IR LED Type

    850nm

  • Night Vision Range

    130' (40m) / 90' (28m)

  • Power Requirement

    12V DC +/-10%

  • Power Consumption

    Max. 280mA (with IR)

  • Operating Temp. Range

    -22 Degree - 140 Degree F (-30 Degree - 60 Degree C)

  • Operating Humidity Range

    < 90% RH

  • Environmental Rating

    IP66

  • Dimensions

    2.7 x 6.2 x 2.7" (70 x 158 x 70mm)

  • Weight

    0.4 lb (0.18kg) (including stand)

D441 DVR: General

Jump to...

  • Video Transmission Technology

    HD Analog

  • Channels

    16 Channels

D441 DVR: Inputs/Outputs

Jump to...

  • Video Input(s)

    16x 1Vp-p, CVBS, 75ohms, BNC Type

  • Video Outputs(s)

    1x VGA, 1x HDMI

  • Audio Input(s)

    1 ch: RCA

  • Audio Output(s)

    1 ch: RCA

D441 DVR: Display

Jump to...

  • Display Output Resolution

    Up to 4K

  • Live Display

    1, 4, 8, 9, 16

  • Live Display Speed (Max)

    480fps NTSC, 400fps PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

D441 DVR: Recording

Jump to...

  • Recording Resolution

    1080p, 720p 960H, D1, CIF

  • Recording Frame Rate

    1080p@15fps (NTSC); 720p/960/D1/CIF@25/30fps (PAL/NTSC)

  • Recording Schedule

    Per Channel: Continuous/Motion/Advanced Motion (Person/Vehicle)/Alarm/Day/Hour

  • Back-up File Format

    DAV/AVI/MP4 file

  • Video Compression

    H.265/H.264

D441 DVR: Playback

Jump to...

  • Simultaneous Playback

    Up to 4 Channels

  • Playback Speed

    Variable Max 16x

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), (Smart Search)

D441 DVR: Storage

Jump to...

  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 1x 10TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDD

D441 DVR: Special Features

Jump to...

  • Smart Motion Detection

    Person/Vehicle Smart Motion Detection (enabled only on up to 4 channels)

  • Smart Search

    Yes

D441 DVR: Smart Home

Jump to...

  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

D441 DVR: Connectivity

Jump to...

  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • DDNS

    Yes (Optional)

  • USB interface

    2x USB 2.0

D441 DVR: Physical

Jump to...

  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    < 15W (Excl. HDD)

  • Supply Voltage

    12V/2A

  • Operating Temperature

    14 Degree - 131 Degree F (-10 Degree - 55 Degree C)

  • Humidity

    10 - 90% RH

  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lb (1.26kg) (Excl. HDD)

Other

Jump to...

  • UPC Code

    695529022109

About Lorex 16-Ch Security System

FEATURED REVIEWS

Easy To Use

By Charles J.

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Love it ! Just what

By Carlos G.

Love it ! Just what I expected

- LBV2531U 2.1MP 1080p Indoor/Outdoor Day & Night HD Bullet Security Camera -
View your world in enhanced detail with our LBV2531U 1080p HD Bullet Security Camera. This advanced camera features full 1080p HD resolution with long-range IR night vision for a premium security solution that gives you clarity at all times, indoors and outdoors. This fully weatherproof has extreme temperature performance, making it a fantastic choice for securing what matters most in any corner of the globe.

1080p HD video for crisp, detailed footage
Experience the difference that full 1080p HD video makes. Our advanced cameras use standard coaxial cable to carry high definition 1080p (1920 x1080) video to your HD DVR. Crisp, detailed live viewing and recording leaves nothing to the imagination. Each camera includes a UL rated cable, boasting in-wall certification and fire resistance. Got a large property? You can extend the camera's video cable up to 800ft (244m) from the DVR using a single run of coaxial cable.

Long range night vision
Stay connected to what matters most at all times of day with professional-grade night vision that leaves nothing to the imagination. Our infrared (IR) LEDs provide unparalleled performance in the dark, allowing you to clearly see up to 130ft (40m) away in regular nighttime conditions, and up to 90ft (27m) away in total darkness. The integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.

Fully weatherproof for outdoor use
This rugged, weatherproof camera is IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we've engineered our cameras to withstand extreme temperatures for use in the most unforgiving of North American climates. These all season security cameras feature a cable pass-through design that keeps power and video cabling concealed, which helps to prevent tampering. The durable yet lightweight Polycarbonate housing makes this camera virtually immune against vandalism.

This MPX camera works with DVRs
Easily connect this camera to Lorex HD MPX DVR.

Vandal Resistant
Built and designed to withstand vandalism.

Indoor Outdoor
Camera is suitable for both outdoor and indoor applications.

Night Vision
View video during the day and with night vision at night.


- 1080p HD Digital Video Recorder -

1080p recording with advanced motion detection technology
Record and view clear 1080p video with this powerful 16-channel recorder, providing Full HD resolution with impressive definition and detail. This recorder also features advanced person/vehicle motion detection available on up to four channels, so you only receive alerts when someone is on your property. With convenient voice control and smart home compatibility, 1080p resolution and advanced motion detection, this recorder covers all the bases.

Picture Perfect
• Capable of recording up to 1080p Full HD Resolution on all cameras
• Digitally zoom in on distant objects for better clarity

Advanced Person/Vehicle Detection
Be alerted when a person/vehicle is on your property
• Reduce unnecessary alerts and false alarms with advanced motion detection
• Get push notifications when motion from a person/vehicle is detected2 (available on up to 4 channels)
• Use Smart Search to filter motion events for reviewing footage quickly and easily
• A panic button is located on the recorder to activate all lights and sirens with compatible cameras

Enjoy the convenience and control of smart home compatibility and voice control features
• Quickly access footage and features with simple voice commands(Compatible with: Amazon Alexa and Google Assistant)
• View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)

No Fee Local Video Storage
Keep your footage private and secure
• Local built-in security-grade hard drive ensures only you can access your footage
• Ample storage space with no monthly cloud fees
• Heavy-duty hard drive designed to handle the workload of 24/7 monitoring

Lorex 16-Ch Security System Features

  • LBV2531U Camera Features
  • High definition 1080p image sensor
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130' (40m) in ambient lighting and 90' (27m) in total darkness
  • Close up recognition in the dark with SmartIR
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Split glass design minimizes IR reflection
  • Versatile ceiling or wall mounting options
  • Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
  • Residential and business friendly compact design
  • UL compliant cable suitable for surface and in-wall installation
  • Weatherproof for outdoor & indoor installation (IP66 Rated)
  • Extreme temperature performance (-22 Degree - 140 Degree F / -30 Degree - 60 Degree C)
  • 1080p HD Digital Video Recorder Features
  • Capable of recording up to 1080p Full HD Resolution on all cameras
  • Digitally zoom in on distant objects for better clarity
  • Quickly access footage and features with simple voice commands (Compatible with: Amazon Alexa and Google Assistant)
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • Reduce unnecessary alerts and false alarms with advanced motion detection
  • Get push notifications when motion from a person/vehicle is detected (available on up to 4 channels)
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate all lights and sirens with compatible cameras
  • Local built-in security-grade hard drive ensures only you can access your footage
  • Ample storage space with no monthly cloud fees
  • Heavy-duty hard drive designed to handle the workload of 24/7 monitoring

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • LBV2531U Camera Highlights
  • High definition 1080p image sensor
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130' (40m) in ambient lighting and 90' (27m) in total darkness
  • 1080p HD Digital Video Recorder Highlights
  • Capable of recording up to 1080p Full HD Resolution on all cameras

What's in the box:

  • 12x LBV2531U 2.1MP 1080p Indoor/Outdoor Day & Night HD Bullet Security Camera
  • Mounting Hardware
  • 60' Extension Cable
  • Power Adapter
  • 1080p HD Digital Video Recorder
  • HDMI Cable
  • USB Mouse
  • Ethernet Cable
  • Quick Start Guides
  • Lorex 1 Year Limited Warranty
