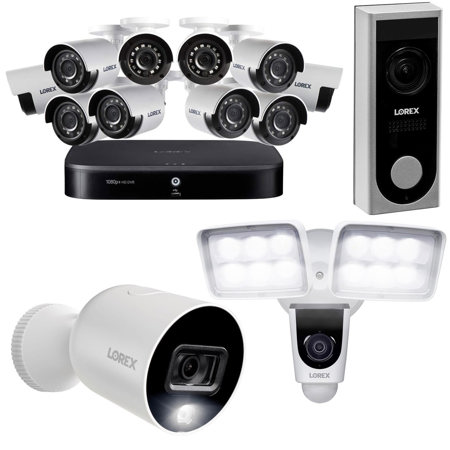

Lorex 4K Ultra HD 16-Channel 2TB Security System with 10x 4K UHD WP Bullet Cameras - With 1080p 2-Way Audio W-F Video Doorbell Camera, 1080p W-F Bullet Camera, 2MP 10 80p 2-Way Audio W-F FL Camera

SKU: LRXDK1628CAA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-09-24T20:00:00

Rated 5 out of 5

Easy To Use

This system replaced my other Lorex set up, I had it for over 10 years. The upgrade WITH all the cameras really makes this a great setup to purchase. If you are going to put in a security system, this is the one to get. I have 16 cameras around my home, there isn't a thing that moves, that I don't see on my office monitor.

Charles J.

2022-09-12T20:00:00

Rated 5 out of 5

Love it ! Just what

Love it ! Just what I expected

Carlos G.

2022-04-13T15:45:36

Rated 5 out of 5

Great

Like it very much

SULEMAN L.

2022-02-06T19:00:00

Rated 5 out of 5

Easy setup

The process to set it up was very easy

Jose F.

2022-01-10T19:00:00

Rated 5 out of 5

Purchase of replacement DVR

It is an upgrade to the previous DVR replacement, without incurring additional costs and changing of wires in the attic. I am pleased with the purchase. thanks to the sales team that assisted me in selecting this replacement unit. I have been with Lorex for over 10 years, and I really like their products and technical assistance.

Francisco P.

2021-12-07T19:00:00

Rated 5 out of 5

Everything is good.

Everything is good.

Cleveland P.

2021-11-30T19:00:00

Rated 5 out of 5

Very Nice

I thought my old one was broken but I got it going again after I bought this new replacement DVR with mouse. It's perfect. I just gave away my old one to family. It updates automatically, nicer interface the price was decent, and all my previously installed cameras blended into the new DVR flawlessly. I've always liked these affordable DVR Lorex cameras systems. Back in the day they were thousands of dollars. What more could I say.

Andrew C.

2021-03-09T19:00:00

Rated 5 out of 5

It?s works way better than the one I have.

John

2021-03-07T19:00:00

Rated 5 out of 5

Over the years, I've owned several camera systems for my business. This one is quite intuitive to set up. My only complaint is the adjustment on the cameras being set screws and a little cumbersome at times - you get the hang of it after a bit - I'd like to see a ball joint for adjustments, but this one does the trick eventually (let's face it, they're only being set up once). The video quality is top notch and the night vision is better than expected. Ran great out of the box with the exception of one wire which would have been annoying if I didn't have an extra, but I had an extra, so it wasn't that big of a deal. I'll eventually talk to customer service and see if I can get the wire replaced - I will update the review if I have a poor experience there, but I expect no issues - let's leave that part of it as no news is good news.

Wondering

2021-03-05T19:00:00

Rated 5 out of 5

Great system awesome price. Purchased from sames club. Very happy with this system

Kieth

2020-12-10T14:03:08

Rated 5 out of 5

Very satisfied with product.

I am amazed at the quality of the pictures. I definitely recommend this package.

DAVID H.

2020-11-05T15:09:47

Rated 5 out of 5

Very impressed

Beautiful cameras with very clear views and so many options! I feel so safe now

CHRISTINA M.

2020-05-31T20:00:00

Rated 5 out of 5

I researched many systems before purchasing this unit. I wanted a long-term solution for home surveillance that I did not have to rely on cloud technology for. All components of the system are quality. The only feedback I have it the quality of the CAT5 cables - they are thin and feel like that are not going to last long. However, the weatherproof connection at the end of the cable is a great feature! I ran the cables in a way that will allow for simple replacement if/when they fail over time. The video quality of outstanding! The system itself has been easy to use, but there are a few settings that I will need to refer to YouTube for guidance on. Spend the money and invest in this system for your home or office immediately.

PalmettoCJ

2019-12-29T19:00:00

Rated 4 out of 5

This system was very easy to install and operate. Amazing clarity, even in the dark!

JCS

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lorex 16-Ch Security System Specifications

DVR: General

DVR: General

Jump to...
  • Video Transmission

    HD Analog

  • Technology

    Channels 8/16 Channels

  • Video Input

    8/16 x 1Vp-p, CVBS, 75ohms, BNC Type

DVR: Inputs/Outputs

Jump to...
  • Video Outputs

    1x VGA, 1x HDMI

  • Audio Input

    1 ch: in RCA

  • Audio Output

    1 ch: out RCA

DVR: Display

Jump to...
  • Display Output Resolution

    Up to 4K

  • Live Display

    8 ch: 1,4,8
    16 ch: 1,4,8,9,16

  • Live Display Speed (Max)

    8 ch: 240fps NTSC, 200PAL
    16 ch: 480fps NTSC, 400PAL

  • OSD

    On/Off

  • System Navigation

    USB Mouse

DVR: Recording

Jump to...
  • Recording Resolution

    4K (8MP), 5MP, 4MP, 3MP, 1080p, 720p

  • Recording Frame Rate

    8/16ch: 4K@7fps; 5Mp@12fps
    4MP/3MP@15fps
    1080P@ 25/30fps (NTSC)

  • Recording Schedule

    Per Channel by, Continuous/Motion/Advanced Motion (Person/Vehicle)/Alarm/Day/Hour

  • Back-up File Format

    DAV/AVI/MP4 file

  • Video Compression

    H.265/H.264

DVR: Playback

Jump to...
  • Simultaneous Playback

    8/16 ch: Up to 4 Channels

  • Playback Speed

    Variable Max 16x

  • Search

    By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), Area Search (Smart Search)

DVR: Storage

Jump to...
  • Hard Drive Bays

    1 Bay

  • Hard Drive Capacity

    Up to 1x 8TB (SATA)

  • Backup Media

    USB Flash Drive & USB HDD

DVR: Special Features

Jump to...
  • Smart Motion Detection

    Person/Vehicle Smart Motion Detection (enabled only on channels 1-4)

  • Smart Search

    Yes

  • Third Party Integrations

    Google Assistant, Amazon Alexa

DVR: Smart Home

Jump to...
  • Voice Control

    Amazon Alexa, Google Assistant

  • Streaming Options

    Chromecast, Apple TV, Amazon Echo Show, Google Home Hub

DVR: Connectivity

Jump to...
  • Mobile Viewing

    Android, iOS

  • Compatible APP

    Lorex Home

  • PC/Mac Remote Viewing

    Yes/Lorex Home

  • Email Notification

    Text and Snapshot

  • Network Interface

    10/100 Base-TX, RJ45

  • DDNS

    Yes (Optional)

  • USB interface

    USB 2.0 x 2

DVR: Additional Specifications

Jump to...
  • FW Upgrade

    USB/Network

  • Watchdog Function

    Yes

  • Power Consumption

    < 10W (Excl. HDD)

  • Supply Voltage

    12V/2A

  • Operating Temperature

    14 Degree - 131 Degree F (-10 Degree - 55 Degree C)

  • Humidity

    10 - 90% RH

  • Dimensions (W x D x H)

    12.9 x 9.6 x 2.1" (328 x 245 x 53mm)

  • Weight

    2.75 lbs (1.26kg) (Excl. HDD)

Camera: General

Jump to...
  • Video Transmission Technology

    Analog HD

  • Image Sensor

    8MP/4K >= 1/3" CMOS

  • Video Format

    NTSC

Camera: Optical

Jump to...
  • Viewing Angle (Horizontal)

    87 Degree

  • Lens/Lens type

    3.6mm F2.0/ Fixed

Camera: Video Output

Jump to...
  • Resolution/Frame rate

    4K(8MP) @ 15fps

  • Effective Pixels

    H:3840 x V:2160

  • Termination

    BNC

Camera: Audio

Jump to...
  • Microphone/Speaker

    No/No

  • Siren

    No

  • 2-Way Talk

    No

Camera: Night Vision

Jump to...
  • IR Night Vision Range

    120' (37m)/ 82' (25m)

  • Color Night Vision

    Yes

Camera: Special Features

Jump to...
  • Deterrence

    No

Camera: Physical

Jump to...
  • Camera Housing Material

    Polycarbonate

  • Power Requirements

    12V DC +/- 10%

  • Power Consumption (max)

    346mA / 4.15WOperating Temperature-40F - 131 Degree F (-40C - +55 Degree C)

  • Humidity

    < 90% RH

  • Environmental Rating

    IP67 (Indoor/Outdoor)

  • Dimensions (W x D x H)

    2.8 x 6.2 x 2.8" (70 x 158 x 70mm)

  • Weight

    0.65 lbs (0.30kg)

About Lorex 16-Ch Security System

Whether you're purchasing your first system or long overdue for an upgrade, this 4K Analog HD security camera bundle from Lorex easily meets the demanding needs of modern-day security. The powerful system records stunning 4K resolution video footage with pristine details and realistic color representation. With other amazing features such as advanced motion detection, smart home compatibility, our exclusive Color Night Vision (CNV) technology, local video storage and more, this system will easily provide professional-quality security protection for your home or business.

4K Ultra HD 16-Channel Security System with 4K (8MP) Cameras
Whether you're purchasing your first system or long overdue for an upgrade, this 4K Analog HD security camera bundle from Lorex easily meets the demanding needs of modern-day security. The powerful system records stunning 4K resolution video footage with pristine details and realistic color representation. With other amazing features such as advanced motion detection, smart home compatibility, our exclusive Color Night Vision (CNV) technology, local video storage and more, this system will easily provide professional-quality security protection for your home or business.

Picture perfect 4K resolution
The security cameras in this bundle record 4K HD quality video; that's more than 8 million pixels of superior detail and definition. As the highest standard to date in the security industry, 4K resolution results in accurate picture and color representation. It will also allow for greater digital zoom so you can see further into the distance.

Advanced motion detection
Be aware whenever motion is detected on your property with advanced motion detection. This system features person/vehicle detection on 4 channels which helps reduce unnecessary alerts and false alarms from moving branches or animals. Important motion events that are recorded can easily be found using the Smart Search feature, which organizes events by type (e.g. person/vehicle motion vs. general motion, etc.).

See color in the dark
Experience enhanced clarity and capture important details even at night thanks to Lorex's exclusive Color Night Vision (CNV). CNV works best with the help of plenty of ambient lighting. In the event of minimal ambient light, the cameras will revert to IR (infrared) night vision. These cameras have an IR range of 120 ft (37 m) in low-light settings and 82 ft (25 m) in complete darkness.

Built for the outdoors
Suitable for both indoor and outdoor installation, these 4K security cameras are rated IP67 and have been especially designed to withstand all types of weather conditions. They can function in temperatures as low as -40 Degree F and as high as 131 Degree F (-40 Degree C to 55 Degree C), making them a versatile solution in different climate zones.

Remote viewing from your mobile with Lorex Home
This system is designed for use with our innovative, hassle-free Lorex Home app. With Lorex Home, you can quickly and easily view your security system remotely through your smartphone or tablet. You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage).

Smart home compatibility
Get faster access to your security system with hands-free voice control. This security camera system is compatible with Amazon Alexa, Google Assistant, as well as Apple TV and Chromecast. By using simple voice commands, you can activate camera features and access live or recorded footage directly on your smart TV, and more.

View your system through Apple TV
Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV (Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Home Apple TV App.

Single cable camera connection
Each analog security camera comes with a siamese BNC cable that provides video transmission and power to the camera. This cable can be run through walls to give you the flexibility to install the camera where you need it most. A wired video / power connectivity means constant connection to your cameras, so your recording never misses a beat.

Reliable security grade hard drive
The DVR in this system is capable of working 24/7 without a break. Thankfully, so is the 2TB hard drive within it. Lorex uses security certified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 8TB in size.

With or without the internet
This security camera systems can be used without being connected to the internet. This means that your data can only be accessed directly from your DVR. However, an internet connection is required to enable remote viewing, motion push notifications, and to download the latest firmware updates.

Lorex 16-Ch Security System Features

  • 4K UHD DVR with 2TB HDD Features
  • Capable of recording up to 4K (8MP) Ultra HD Resolution on all cameras
  • Digitally zoom in on distant objects for better clarity
  • Expand your security system with both 8 and 16 channel recorder options
  • Quickly access footage and features with simple voice commands (Compatible with: Amazon Alexa and Google Assistant)
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Chromecast)
  • Reduce unnecessary alerts and false alarms with advanced motion detection
  • Get push notifications when motion from a person/vehicle is detected (Available on up to 4 channels)
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • A panic button is located on the recorder to activate all lights and sirens on your cameras
  • Local built-in security-grade hard drive ensures only you can access your footage
  • Ample storage space with no monthly cloud fees
  • Heavy-duty hard drive designed to handle the workload of 24/7 monitoring
  • 4K UHD Weatherproof Bullet Cameras Features
  • View in exceptional 4K (8MP) Ultra High Definition with an image sensor that delivers four times the detail of 1080p
  • 4K (8MP) Ultra HD video recording provides superior quality for reviewing fine details in increased resolution
  • Infrared cut filter ensures accurate color representation
  • Color Night Vision provides color images (with ambient lighting from porch or street lamps) letting you identify objects and people more accurately than in black & white
  • Night vision range up to 120ft (37m) in ambient lighting and 82ft (25m) in total darkness
  • Close up recognition in the dark with SmartIR
  • Large 1/3" image sensor offers very high quality night time video
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP67 Rated)
  • Extreme temperature performance (-40 Degree - 131 Degree F / -40 Degree - 55 Degree C)
  • 87 Degree horizontal field of view
  • Vandal resistant design with cable pass-through bracket
  • Includes 60ft video/power cable for simple installation
  • Versatile ceiling or wall mounting options

Key Features

  • 4K UHD DVR with 2TB HDD Highlights
  • Capable of recording up to 4K (8MP) Ultra HD Resolution on all cameras
  • Digitally zoom in on distant objects for better clarity
  • Expand your security system with both 8 and 16 channel recorder options
  • 4K UHD Weatherproof Bullet Cameras Highlights
  • Infrared cut filter ensures accurate color representation

What's in the box:

  • 4K UHD DVR with 2TB HDD (D841A62B)
  • 10x 4K UHD Weatherproof Bullet Cameras (C841CA)
  • HDMI Cable
  • Power Adapter
  • USB Mouse
  • Ethernet Cable
  • 10x Mounting Hardware
  • 10x 60' Extension Cable
  • Quick Start Guide
  • Lorex 1 Year Limited Warranty
  • Lorex LNWDB1 1080p 2-Way Audio Wi-Fi Video Doorbell Camera
  • Lorex W281AAD-I 1080p Smart Deterrence Wi-Fi Security Bullet Camera
  • Lorex V261LCD-E 2MP 1080p 2-Way Audio Wi-Fi Floodlight Camera
