HD Analog
8 Channels
Input: 8 x 1Vp-p, CVBS, 75ohms, BNC Type
Outputs: 1 x VGA, 1 x HDMI
Input: 1 ch: in RCA
Output: 1 ch: out RCA
Up to 1080p
1,4,8
2 240fps NTSC, 200fps PAL
On/Off
USB Mouse
1080p, 720p 960H, D1, CIF
1080p@15fps (NTSC); 720p/960/
D1/CIF@25/30fps
(PAL/NTSC)2
Per Channel: Continuous/Motion/
Advanced Motion (Person/Vehicle)/
Alarm/Day/Hour
DAV/AVI/MP4 file
H.265/H.264
Up to 4 Channels
Variable Max 16 x
By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), (Smart Search)
1 Bay
Up to 1 x 10TB (SATA)
USB Flash Drive & USB HDD
Person/Vehicle Smart Motion Detection (enabled only on up to 2 channels)
Yes
Amazon Alexa, Google Assistant
Chromecast, Apple TV, Amazon Echo Show, Google Home Hub
Android, iOS
Lorex Home
Text and Snapshot
10/100 Base-TX, RJ45
Yes (Optional)
USB 2.0 x 2
USB/Network
Yes
< 10W (Excl. HDD)
12V/2A
14 - 131 Degree F (-10 - 55 Degree C)
12.9 x 9.6 x 2.1" (328 x 245 x 53mm)
2.75 lb (1.26kg) (Excl. HDD)
1/2.7" 1080p, 2.1 Megapixel CMOS
NTSC
H: 1920 x V: 1080
1080p
Progressive
Internal
AES
1/30 - 1/100,000s
0.2 lux without IR LED / 0 lux with IR LED
MPX
3.6mm F2.0 / Fixed
88 Degree
BNC Type
850nm
130' (40m) / 90' (28m)
12V DC +/-10%
Max. 280mA (with IR)
-22 - 140 Degree F (-30 - 60 Degree C)
< 90% RH
IP66
2.7 x 6.2 x 2.7" (70 x 158 x 70mm)
0.4 lb (0.18kg) (including stand)
695529022079
By Keith W.
Cameras have a great picture... Phone app is wonderful .. great for our location... Only set back was .... Needed firmware update to get it to work .. call concierge service offered bt Costco first ... Super helpful ... Thanks all
Whether you're purchasing your first system or long overdue for an upgrade, this 4K Analog HD security camera bundle from Lorex easily meets the demanding needs of modern-day security. The powerful system records stunning 4K resolution video footage with pristine details and realistic color representation. With other amazing features such as advanced motion detection, smart home compatibility, our exclusive Color Night Vision (CNV) technology, local video storage and more, this system will easily provide professional-quality security protection for your home or business.
1080p HD video for crisp, detailed footage
Experience the difference that full 1080p HD video makes. Our advanced cameras use standard coaxial cable to carry high definition 1080p (1920 x1080) video to your HD DVR. Crisp, detailed live viewing and recording leaves nothing to the imagination. Each camera includes a UL rated cable, boasting in-wall certification and fire resistance. Got a large property You can extend the camera's video cable up to 800ft (244m) from the DVR using a single run of coaxial cable.
Advanced motion detection
Be aware whenever motion is detected on your property with advanced motion detection. This system features person/vehicle detection on 4 channels which helps reduce unnecessary alerts and false alarms from moving branches or animals. Important motion events that are recorded can easily be found using the Smart Search feature, which organizes events by type (e.g. person/vehicle motion vs. general motion, etc.).
Long range night vision
Stay connected to what matters most at all times of day with professional-grade night vision that leaves nothing to the imagination. Our infrared (IR) LEDs provide unparalleled performance in the dark, allowing you to clearly see up to 130ft (40m) away in regular nighttime conditions, and up to 90ft (27m) away in total darkness. The integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.

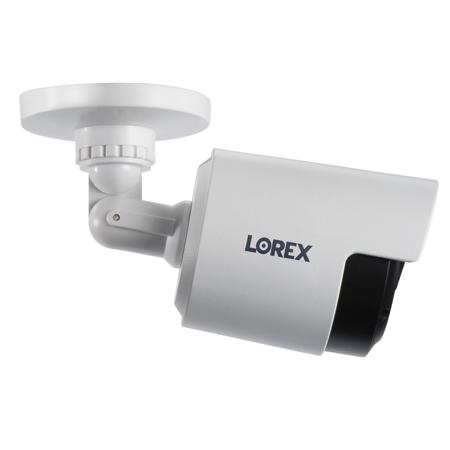

Fully weatherproof for outdoor use
This rugged, weatherproof camera is IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we've engineered our cameras to withstand extreme temperatures for use in the most unforgiving of North American climates. These all season security cameras feature a cable pass-through design that keeps power and video cabling concealed, which helps to prevent tampering. The durable yet lightweight Polycarbonate housing makes this camera virtually immune against vandalism.
Remote viewing from your mobile with Lorex Home
This feature-rich system is designed for use with our innovative, hassle-free Lorex Home app. Using Lorex Home, you can quickly and easily view your security system remotely from your smartphone or tablet and control active deterrence features. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage). You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times.
Works with:
Apple iPhone
Apple iPad
Android Phone
Android Tablet
Apple TV
Smart home compatibility
Get faster access to your security system with hands-free voice control. This security camera system is compatible with Amazon Alexa, Google Assistant, as well as Apple TV* and Chromecast. By using simple voice commands, you can activate camera features and access live or recorded footage directly on your smart TV, and more. For more information about current smart home integrations, visit our Smart Home Guide.
View your system through Apple TV
Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV (Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Home Apple TV App.
Single cable camera connection
Each analog security camera comes with a siamese BNC cable that provides video transmission and power to the camera. This cable can be run through walls to give you the flexibility to install the camera where you need it most. A wired video / power connectivity means constant connection to your cameras, so your recording never misses a beat.
Reliable security grade hard drive
The DVR in this system is capable of working 24/7 without a break. Thankfully, so is the 1TB hard drive within it. Lorex uses security certified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 10TB in size.
With or without the internet
This security camera systems can be used without being connected to the internet. This means that your data can only be accessed directly from your DVR. However, an internet connection is required to enable remote viewing, motion push notifications, and to download the latest firmware updates.
