Review Summary
Simultaneous View, Record, Playback, Backup & Remote Monitoring
6 Channel
Yes
Yes
1 in rear, 1 in front
1920x1080; 1440x900; 1280x1024; 1280x720
N/A
1, 4, 6
up to 20/15/10fps for 2/4/6 cameras
Yes
USB Mouse
Network / USB Device
By user group
Auto time sync by NTP server
H.264
NTSC: 1080p / 720p
Matches max. camera transmission frame rate
Selectable per channel
6 levels
By motion, manual
Watch-Dog, Auto-recovery after power failure
1/4/6
Variable Max 16x
Backup Player
by Time/Date & Motion Event
Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record & storage
1x Security-grade HDD (3.5" SATA)
Up to 8TB
USB Flash Drive, HDD & Network
LF / MP4
P2P Connectivity
Windows
Mac OSX
Client Software (PC) & Safari (Mac)
Text with snapshot
iPad, iPhone, Android apps
LorexDNS
Full setup configuration over network
Programmable by User
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
10/100-Base-TX, RJ-45
Max 32Mbps total
3 Watts (no HDD included)
100VAC-240VAC, 12VDC, 2A, 50/60Hz
14 Degree F - 130 Degree F (-10 Degree C - 55 Degree C)
10 - 90% RH
11.8 x 8.2 x 1.9" (300 x 208 x 40mm)
2.6 lb (1.2kg)
695529017372

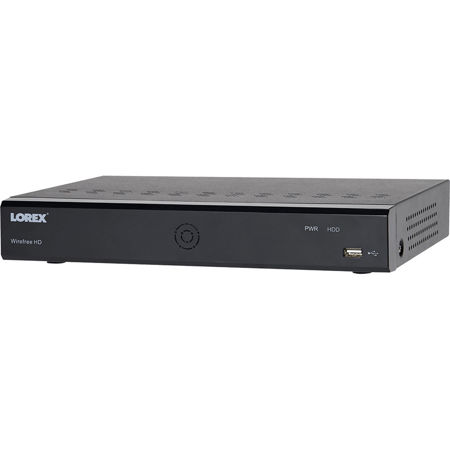

Diurnal Wire-Free Security Camera Systems from Lorex are the perfect hassle-free system designed for quick installation and efficient monitoring. This system comes with four battery operated security cameras and a security grade DVR (Digital Video Recorder) with a 1TB hard drive. This ability to store recordings locally provides personal safety and no additional monthly fees for cloud storage.
The DVR also gives you easy smartphone access to live or recorded footage from wherever you are. Coupled with Diurnal wire-free cameras that include professional motion detection, 1080p HD video resolution, two-way talk, infrared night vision, and a weatherproof IP66 rating, this system has you covered day and night, no matter what the elements have in store.
Diurnal motion activated cameras measure and detect infrared heat energy radiating from objects to actively recognize moving motion patterns in its field of view. As opposed to other wired security solutions offered by Lorex, such as our Nocturnal line of 24/7 IP security cameras known for their incredibly long Color Night Vison ranges, Diurnal security cameras are battery-operated and do not require any cabling. Instead, these cameras only start to record the moment the camera's thermo-sensor detects motion.
System Features
Install Anywhere
If you want to avoid the tedious process of running cables all over your property or spending money on a professional installation, then this system is for you. The cameras are completely wire-free which means they don't need a cable to power them or connect them to the DVR. Simply attach the metal mount to a solid surface, secure the cameras, sit back and relax. You can set up the whole system in less than an hour.
Long Distance Wireless Range
These wire-free cameras have a powerful long-range signal and can be installed up to 600ft away from the receiver (with a clear line-of-site). That means you can place the cameras wherever you need them the most without compromising your safety. These cameras use adaptive DSSS (Direct-Sequence Spread Spectrum) technology to reduce the amount of interference that comes from neighbouring Wi-Fi or mobile signals. This type of signal also secures your system as it generates a channel hopping sequence created by the receiver that only the camera can follow through the "pairing" function.
Weatherproof receiver
The wireless receiver that is used to connect your wire-free cameras to your DVR is fully weatherproof. This means that you can run the USB cable from your DVR to install it on the side of your house for even better outdoor wireless reception. A 25ft USB extension cable can be purchased separately to help extend the distance of your wireless receiver from the DVR.
Hybrid Wireless / Wired Capability
This wire-free camera is completely cable free. In short, it's motion-triggered (that is, it only wakes up when motion is detected and goes back to stand-by mode when there is no motion) to save and lengthen its battery life. But if you desire so, this camera can also be converted into a 24/7 wireless camera by plugging it directly into a power source.
Secure Local Storage
The security grade hard drive included in the DVR can store 1TB of data. This is plenty of space to store your motion recordings for months, if not years.
No Monthly Fees
There are no hidden fees after purchase with this wire-free system. The security grade hard drive has more than enough space to store your video footage, so there's no need to spend extra money on monthly cloud storage. The Lorex Cirrus app is also free of charge.
Upgradable HDD
If desired, you can open up the DVR and replace the included 1TB hard drive with a larger one (up to 6TB max). A 6TB hard drive will essentially provide you with limitless storage if only recording motion events. An upgrade to the hard drive will also be very helpful if you plan on using any cameras as 24/7 wireless camera (plugged in).
Camera Features
1080p HD Video Resolution
For protecting the things that matter most, having a security camera with 1080p HD resolution is vital. With HD clarity and sharpness, you won't have to worry about missing crucial details if an incident happens to occur on your property.
Thermo-Sense Motion Detection
Wire-free cameras use a passive infrared (PIR) sensor to detect motion. Located just under the lens, this sensor detects heat from moving objects such as people, animals or vehicles and not inanimate things like blowing trees. So the moment something that emits a lot of heat energy moves into the frame, the sensor will detect the temperature difference and start recording.
Long Lasting Lithium Ion Battery
The lithium ion batteries in the camera's power pack are designed for long-lasting usage so don't have to recharge them all the time. They have a high energy density and a discharge rate that is much lower than other non-lithium ion rechargeable batteries. The batteries maintain 85% of their capacity after one year due to their gradual self-discharge rate.
Like the actual cameras themselves, the batteries can also withstand extreme weather conditions ranging from -4 Degree F to 158 Degree F (-20 Degree C to +70 Degree C), which makes them extremely reliable throughout the seasons. There is no need to prime these batteries before use either as they have no memory effect, so you can recharge them without having to completely deplete their energy.
Long Distance Night Vision
Darkness can give potential intruders extra confidence. You want a security system that protects you at all hours of the day, which is why infrared night vision is an essential feature. The cameras come equipped with powerful infrared LED lights to make sure any footage captured at night is crisp and clear. Expect a well-defined night vision range of up to 150ft with ambient lighting and 100ft in total darkness.
Fully Weatherproof
Diurnal wire-free cameras have an IP66 waterproof rating. This means that they can withstand extreme weather conditions, such as torrential downpours and snowstorms. They are also capable of operating in temperatures ranging from -4 Degree to 113 Degree F (-20 Degree to 45 Degree C). So no matter where you live, the weather won't interfere with your camera's performance.
Durable Metal Exteriors
Lorex Diurnal cameras are highly durable. Their housings are made from aircraft-grade aluminum alloy with a high degree of resistance to corrosion. Built to last, the camera is designed to absorb shocks from high-intensity impacts, both man-made and natural.
Ultra-Wide Angle Lens
Equipped with ultra-wide angle lenses, Diurnal cameras are designed for outdoor monitoring, such as doorways, the front of your house, vast backyards or large areas within the house or property. With its massive 140 Degree field of view, these Diurnal cameras can cover large areas of your property that an ordinary camera cannot otherwise accomplish.
Mobile Features
Lorex Cirrus Mobile App
Keep tabs on all of your wire-free security cameras from virtually anywhere in the world with the Lorex Cirrus app. Using this app, you can quickly view live and recorded video through a connected tablet or smartphone.
Event Timeline
Quickly review past motion events using the easy-to-use event timeline feature. Simply choose a date and scroll to the highlighted lines that indicate that a motion event was recorded.
Audio Recording and Two-Way Talk
Diurnal wire-free security cameras include both a built-in microphone and speaker. First and foremost, the microphone will provide you with additional information (and evidence, if needed) to your security. At the same time, this microphone will allow people on the other end to communicate through the camera. Then, thanks to the on-board speaker, you can use the Lorex Cirrus app to simply speak into the phone to communicate with them. This is perfect for mail delivery or checking in on loved ones.
Motion Alerts
Don't be left in the dark when it comes to your safety. The Lorex Cirrus app will keep you informed of any type of activity with motion-activated push notifications. Now you can have some peace of mind knowing you can check up on the kids after school, or make sure that package you were expecting has arrived. With alerts being sent directly to your smartphone or tablet you will have plenty of time to notify the authorities if something suspicious is happening on your property.
Customized Motion Detection Zones - coming soon
A future firmware update will allow you to customize the zones you want to focus on by using motion zones. Using this feature, you can enable recording in more important areas, such as driveways, front doors or back doors. Simply highlight the zones you want and the camera will only start recording when there is movement detected in those specific spots. This helps reduce the number of unwanted alerts and video recordings. It also helps prolong the camera's battery life, since the camera won't turn on and off as often.
Low Battery Warnings
When a camera's battery reaches 20%, a low battery notification will be sent directly to your tablet or smartphone via the Lorex Cirrus app. That way, you won't have to worry about checking the cameras manually or having the batteries run out without you knowing. On top of that, you can always monitor battery life at any time through the app.
3 Users at one time
The Lorex Cirrus mobile app can be simultaneously used by up to three different users. So others in your family can log in and view live video, timeline events, recorded footage and much more without conflict.
